Descriptions:
The grinding machine is used to plastic dissolving pellet chemical fiber dissolving pellet fiber, waste, plastic, scraps, films, etc
Agglomeration machines are a cost efficent way of recycling thin walled polymers.
Agglomeration machines are used for physically transform loose plastic material into chips suitable to be fed the hopper of an extruder.

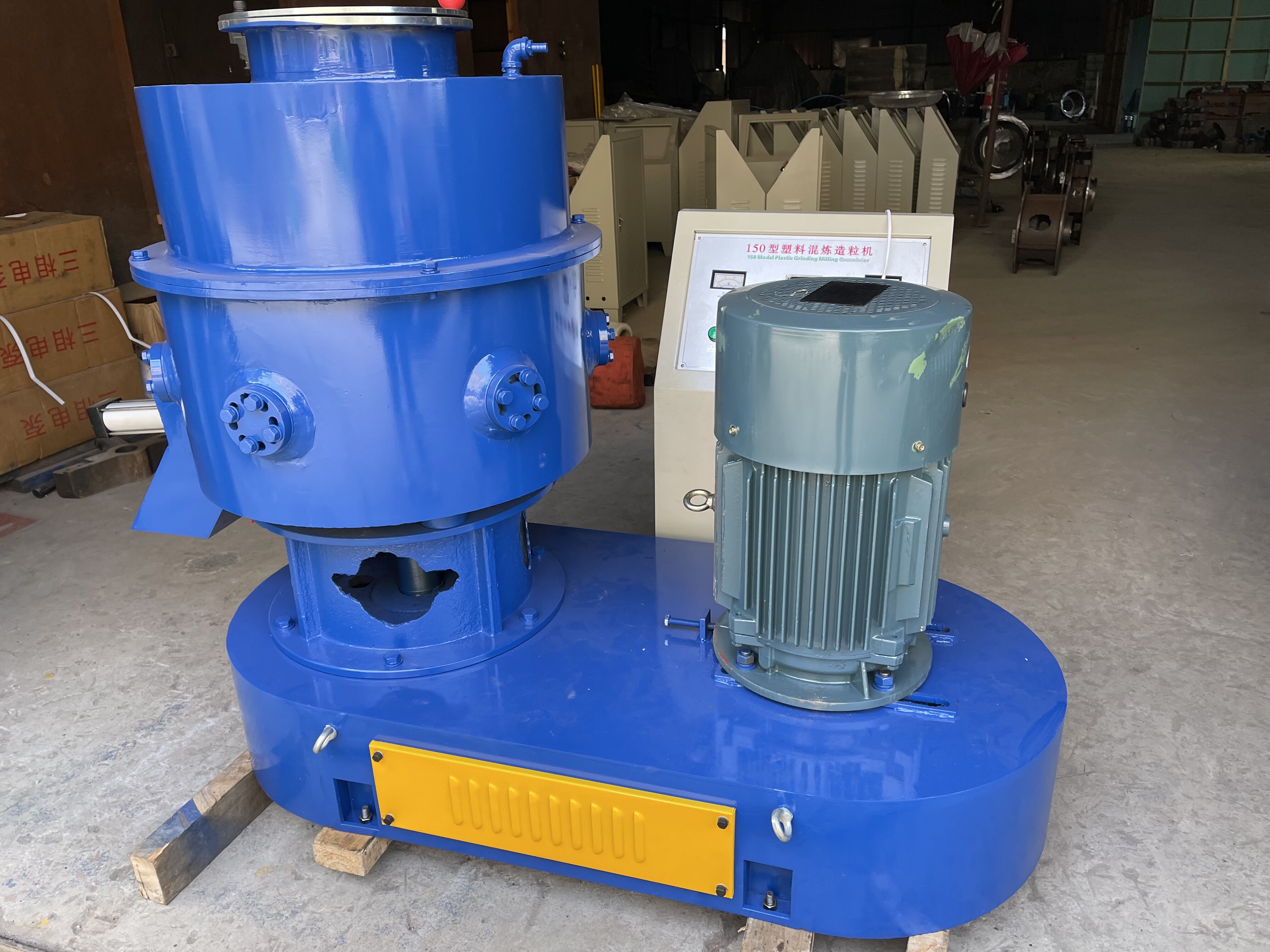

Agglomerator is a cylinder with five to nine stationary and two rotating blades at the bottom which create friction and heat.
This process causes material to reach to the softening point. In this stage, operator add some water to create a kind of shock.

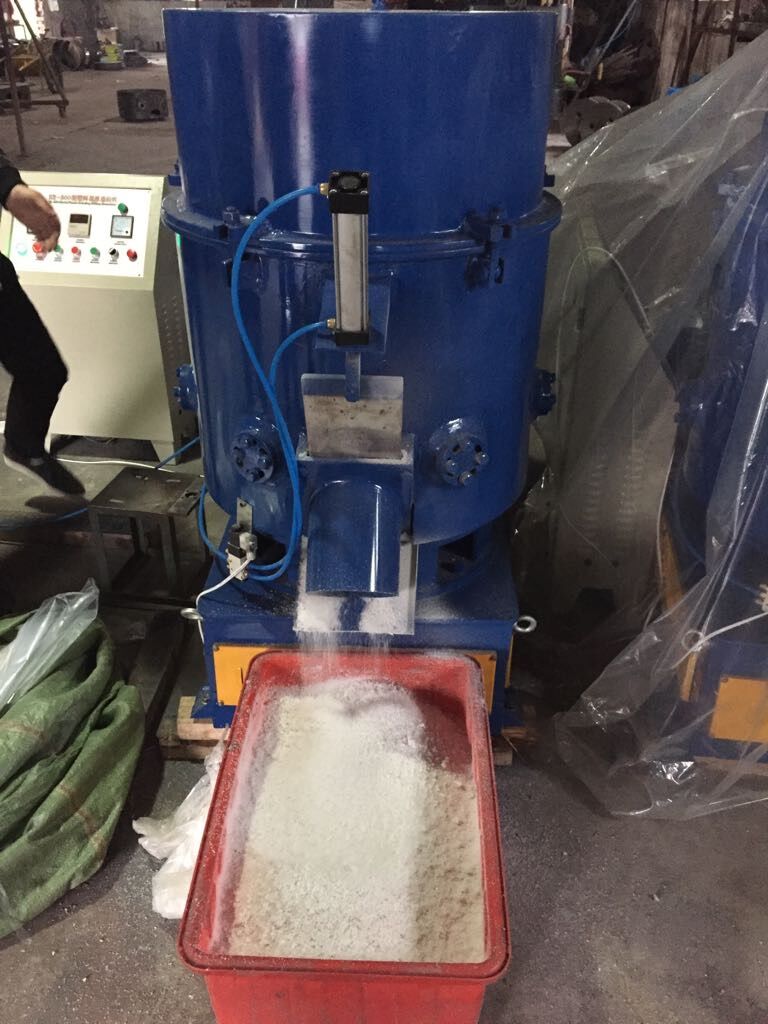

After water evaporates, material comes out from pneumatic operated discharge door as chips.
Feature:
1. Crush, mix, and color all at one time
2. The machine covers a small area
3. Simple mechanical structure, easy to operate
4. Adjustable blade clearance, easy to change the knife
5. High production efficiency and low energy consumption
6. Low temperature granulation, basically does not damage the molecular structure of raw materials, does not damage the physical properties
|
Model |
KP-G150 |
KP-G300 |
|
Capacity of barrel |
150L |
300L |
|
Output |
60-80kg/h |
200-300kg/h |
|
Main motor power |
18.5kw |
37kw |
|
Rotary speed of main shaft |
660r/min |
660r/min |
|
Overall dimensions |
1800x750x1400mm |
2000x900x1600mm |
|
Knife quantity |
2 turn 6 fixed knife |
3 turn 4 fixed knife |
|
Weight |
900kg |
1200kg |
![]() |
![]() |
![]() |
