Descriptions:
Suitable material: LDPE, HDPE, PP, OPP, BOPP

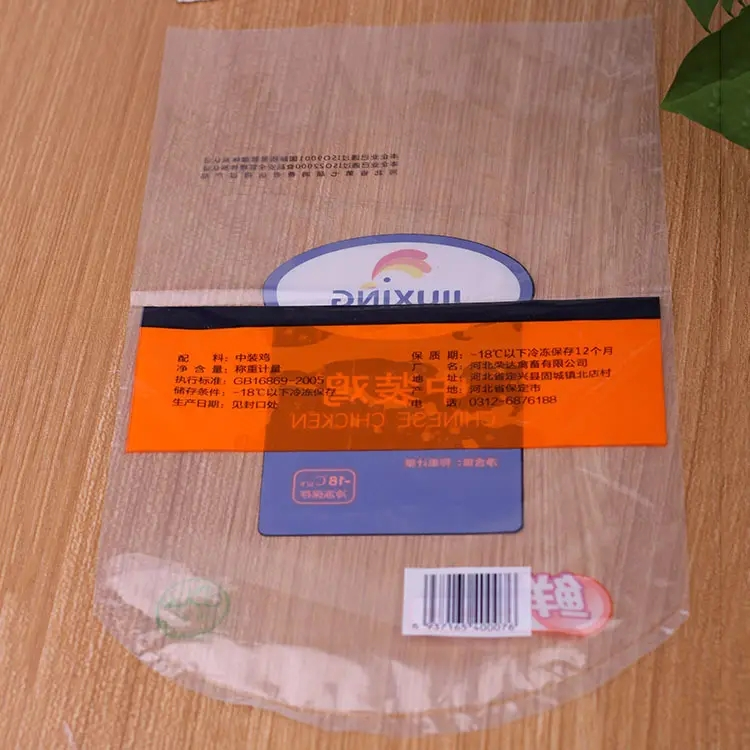

This multi function side sealing bag making machine is used to produce packaging clothing bag, chicken bag ,garments bag, bread bag, socks package bag, with self adhesive tapes on the bag. It include two Knife for Bopp bag ,one for straight line sealing and other side for dot line sealing.
Features:
Touch screen computer control;
With photocell for printed film;
Intelligent temperature control system;
Two pcs sealing knife , flat heating knife and dot heating knife
One Puncher
Customized special for multi functions bag, such as flower bag , chicken bag etc
Optional Equipment:
1.EPC
2.Auto tension
3.Air shaft
4.Yaskawa/Panasonic servo motor
5.Punchers
6.Customized moulds ( Multi functions to make different type of bag )
Model |
RQL-600 |
RQL-800 |
RQL-1000 |
Length of sealing&cutting(mm) |
60-580 |
80-780 |
90-980 |
Width of sealing&cutting(mm) |
50-600 |
55-600 |
60-600 |
Speed of Bag-making(pcs/min) |
40-200 |
40-200 |
40-120 |
Accuracy of finished product |
±0.3 |
±0.3 |
±0.3 |
Main motor (kw) |
1.1 |
1.5 |
1.5 |
Total power |
4 |
5 |
6 |
Weight |
800 |
1000 |
1100 |
Dimension L*W*H(mm) |
3600x1150x1700 |
3600x1350x1700 |
3600x1550x1700 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
