Descriptions:
Suitable Material : HDPE , LDPE

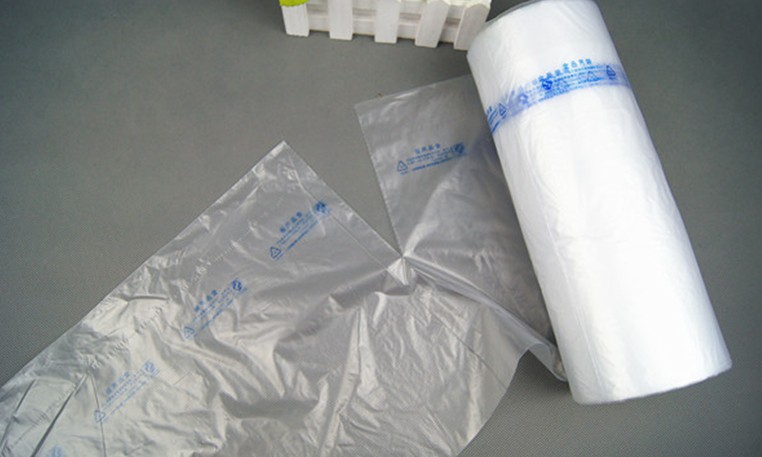

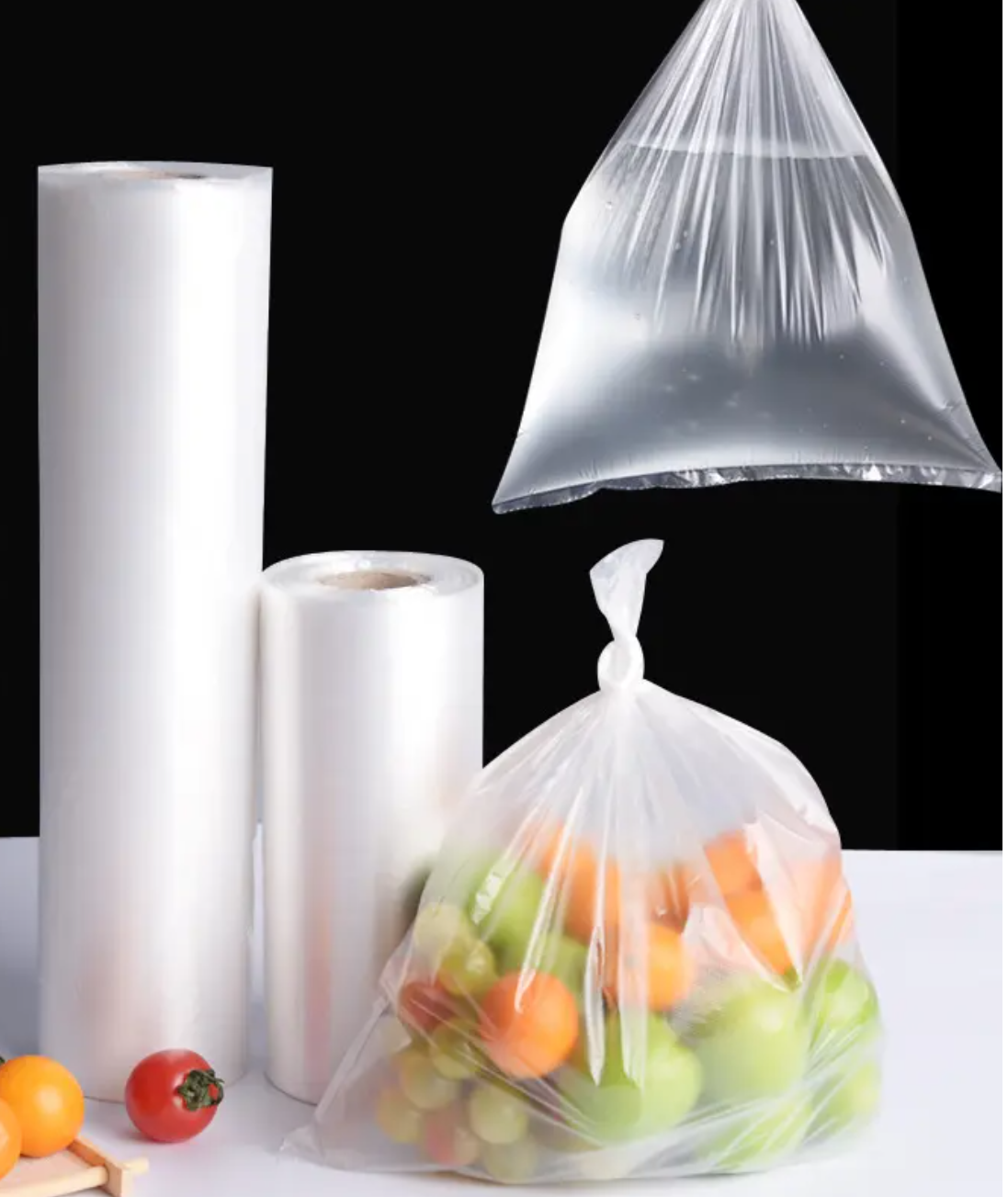

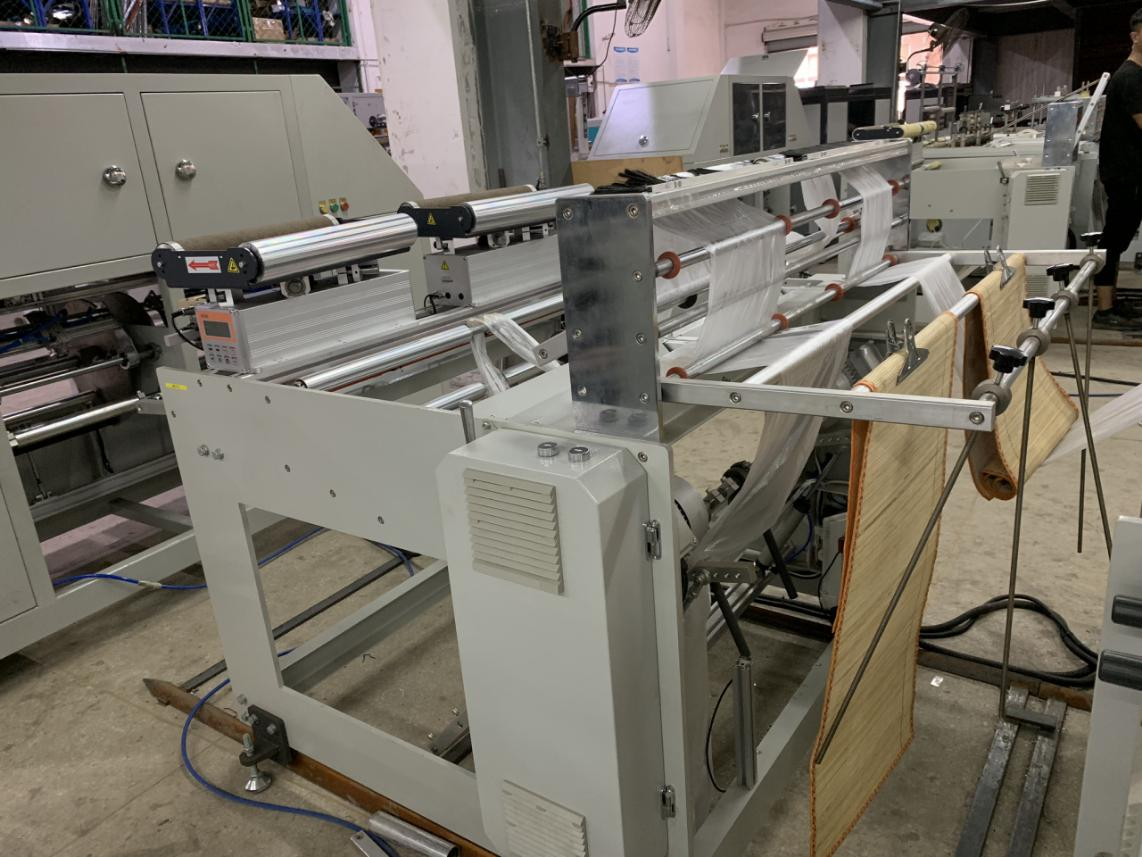

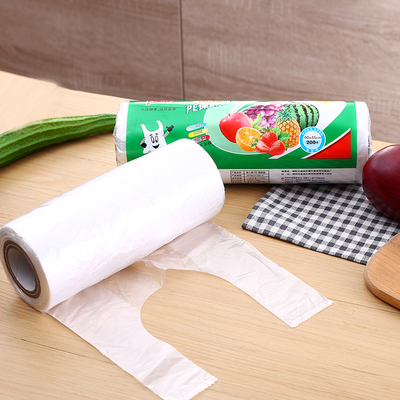

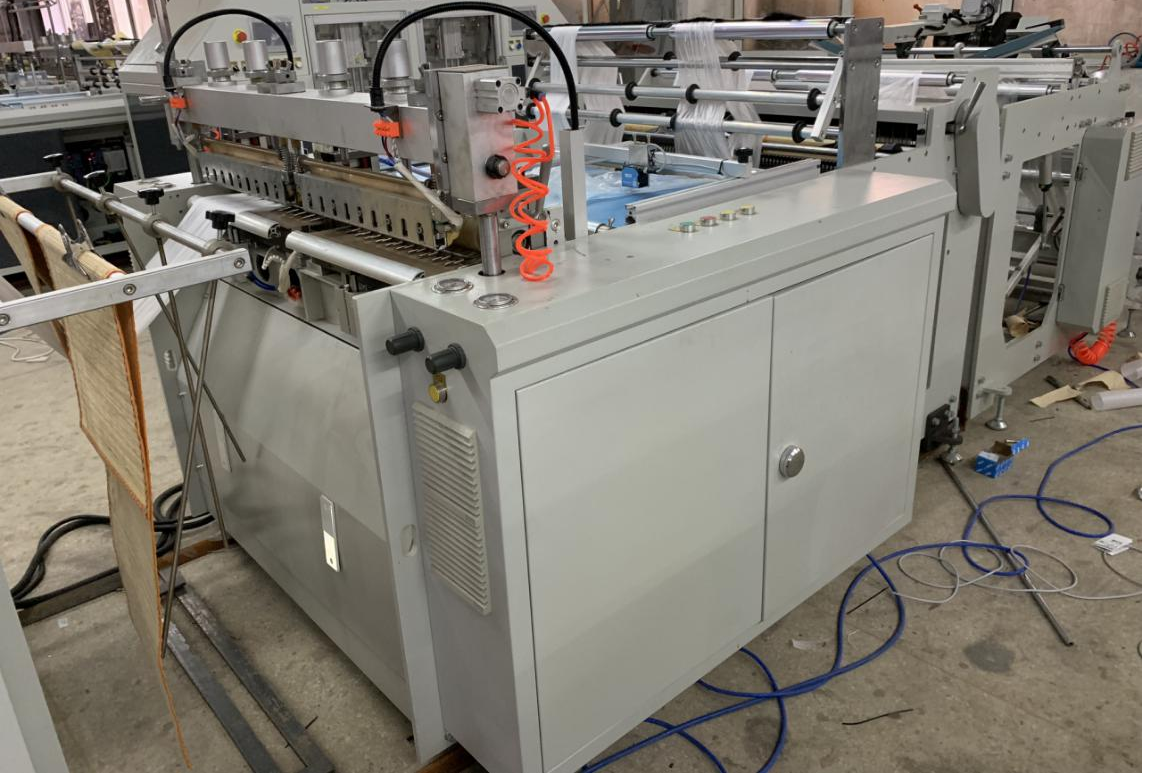

The flat/ vest bag on roll making machine is used to produce flat bag on roll , vest bag on roll , rolling flat bag , rolling t shirt bag for food packaging in supermarket .it can do the rolling bag with paper core.
Feature:

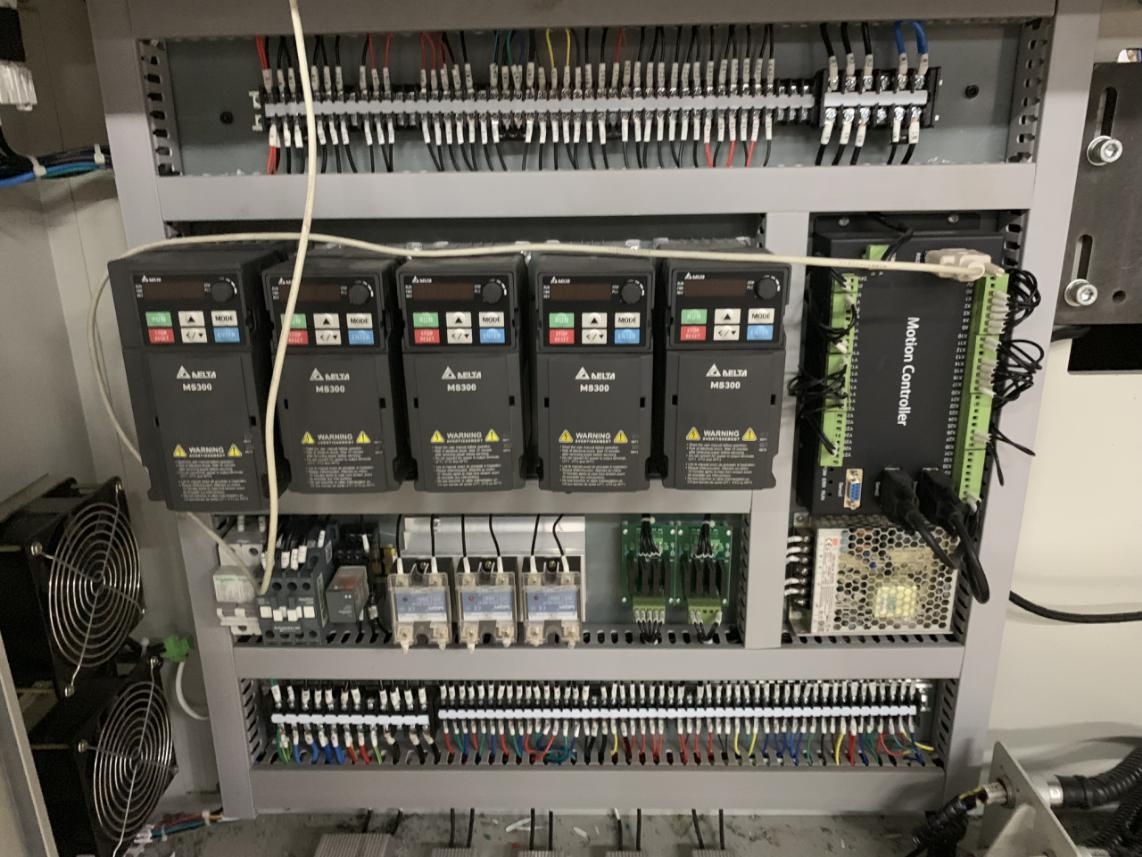

Computer setting length system
Servo motor
Intelligent temperature control system

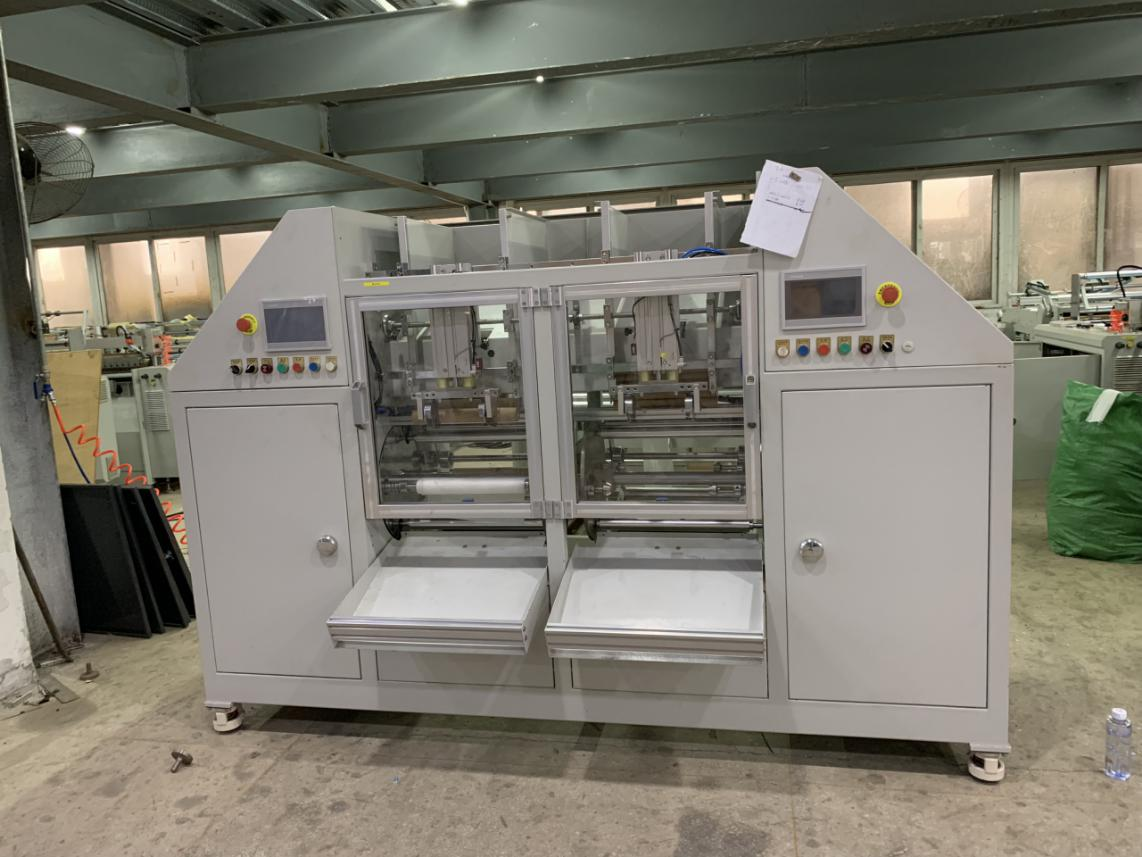

Paper core automatic changing
Model |
KP1020S2-ARC |
Voltage |
380v 3phase |
Total power |
16kw |
Average power |
10kw |
0.5MPa |
|
Suitable materials |
HDPE |
Producing length |
300-800mm |
Final product width(two lines) |
180-400mm |
Producing speed (FLAT BAG) |
100m/min *2 // 250p/min *2 |
Max. Unwinding dia. |
800mm |
Max. Rewinder dia. |
150mm |
Weight |
3600kg |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
