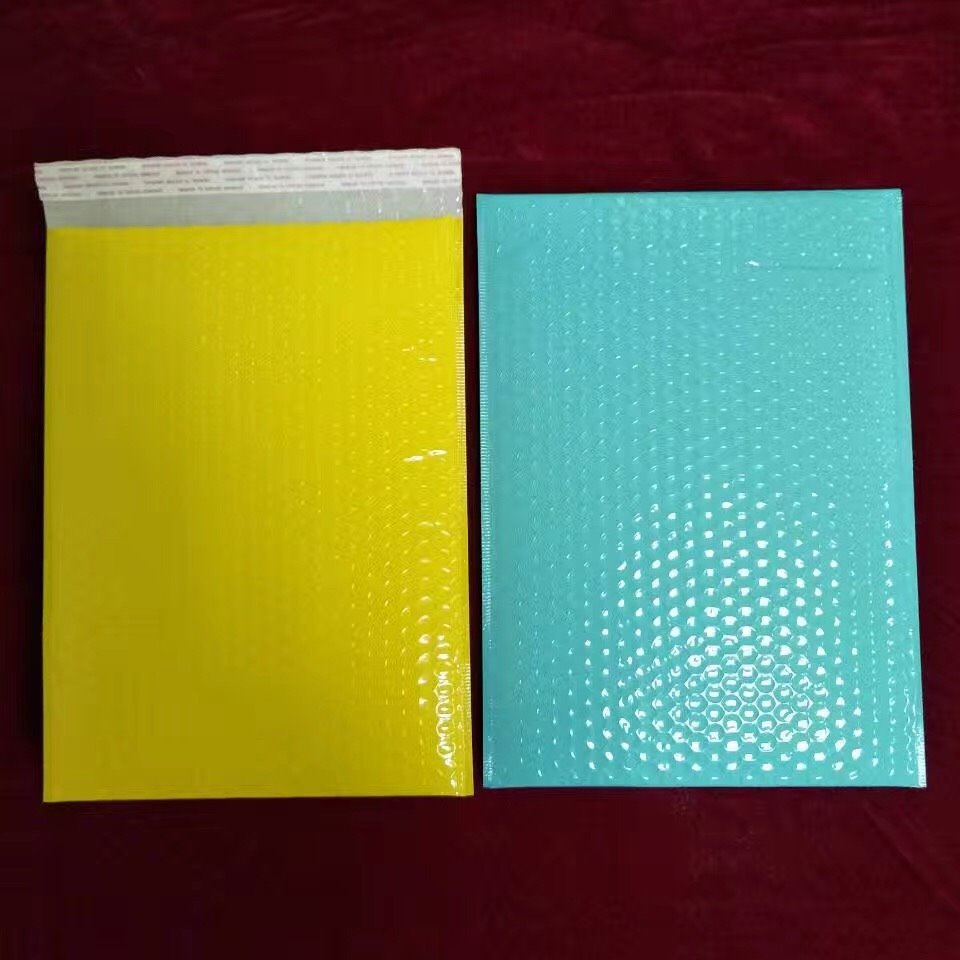

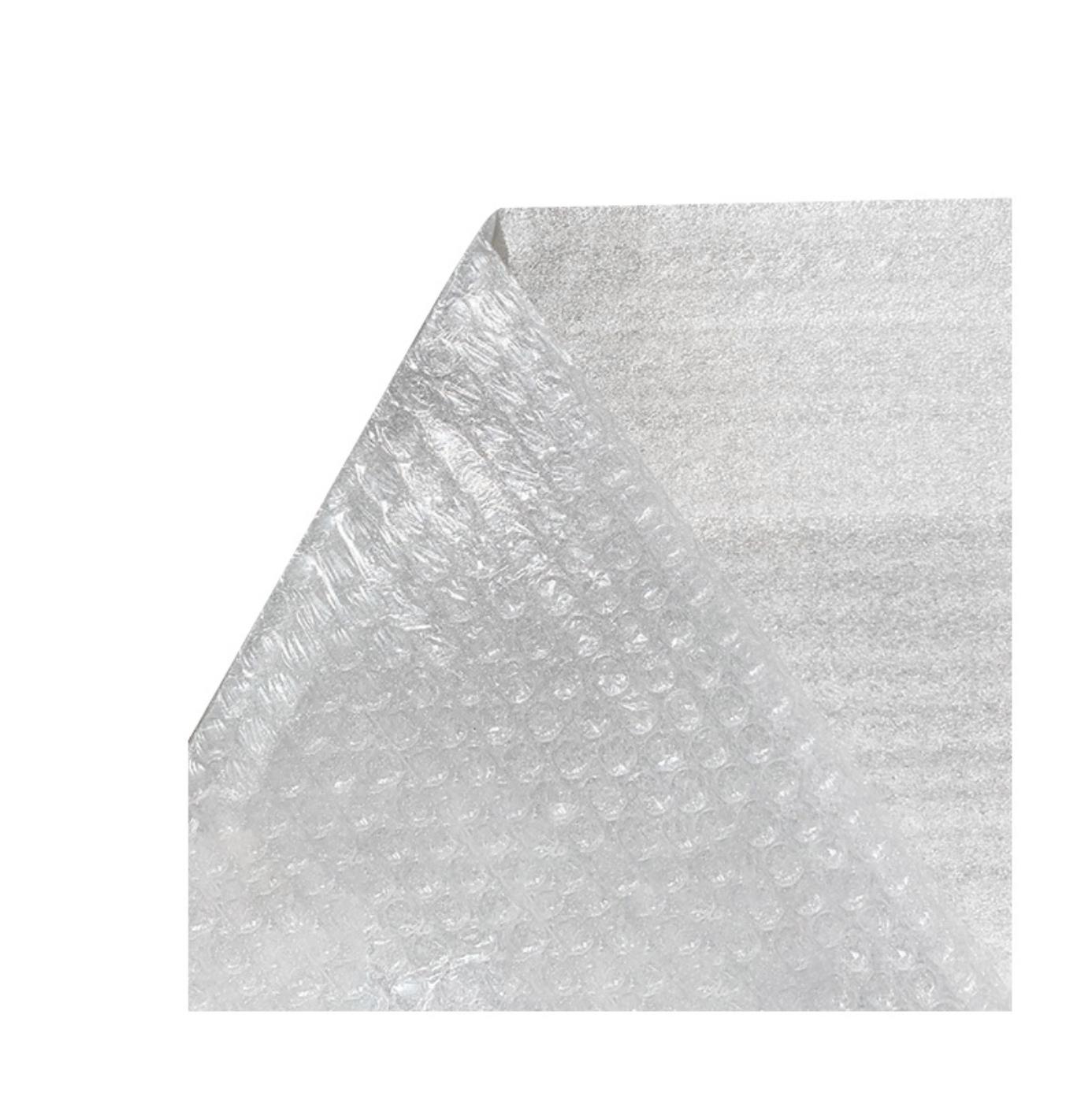

Application : express bags , shockproof package film ,envelope bags

Feature:

This air bubble machine adopts the disposable shaping craft.It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene air bubble (cushion) film in successions. Designs science, practical and rational structure of the machine.

It not only has good cushioning effect, shock resistance and heat resistance, but also has such advantages as good corrosion resistance and transparency , etc.

So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

Characteristic:

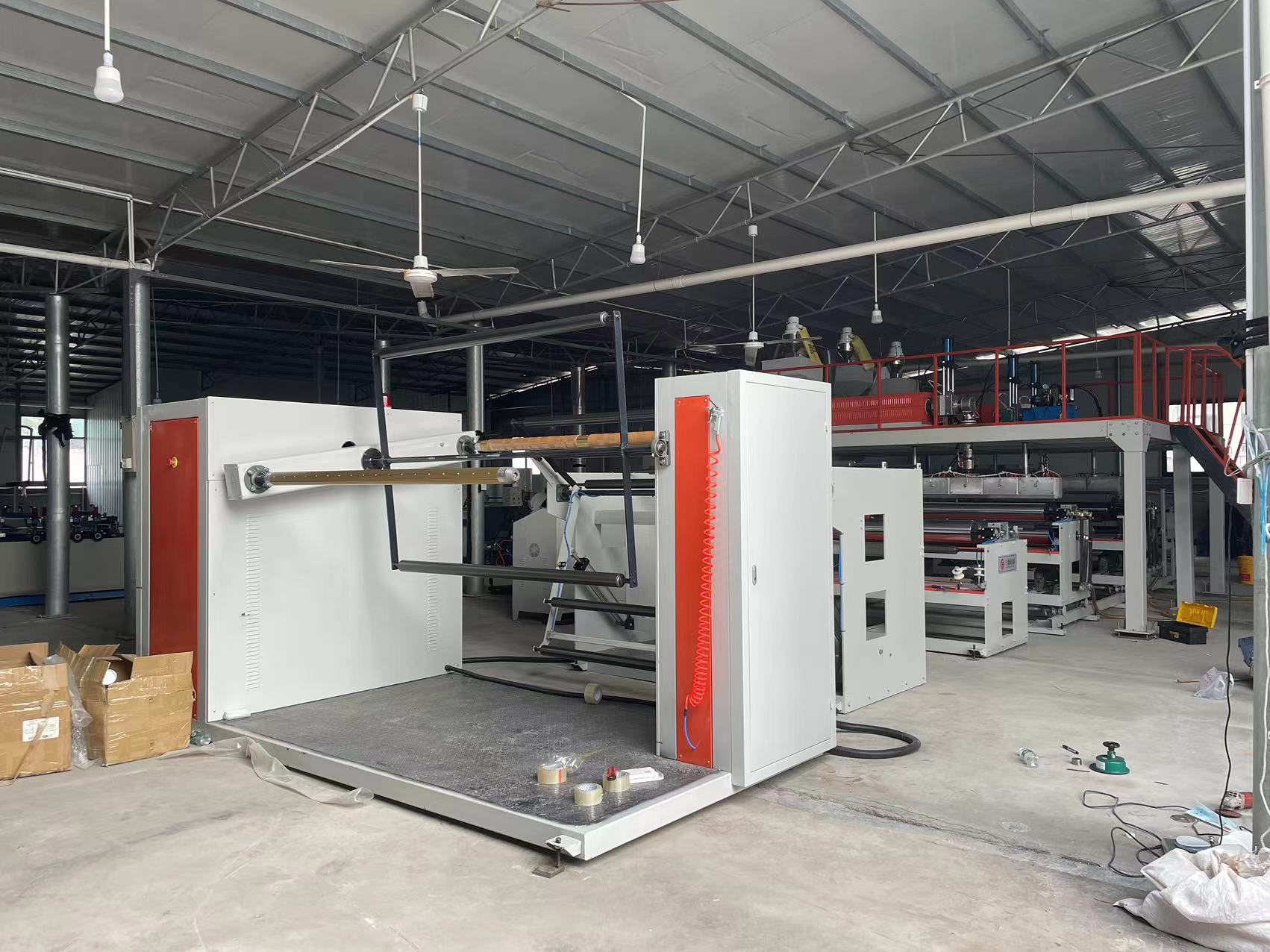

1. Main parts: 3 Extruders, Control Panel, Bubble forming section, Automatic Winder,Rewinder.

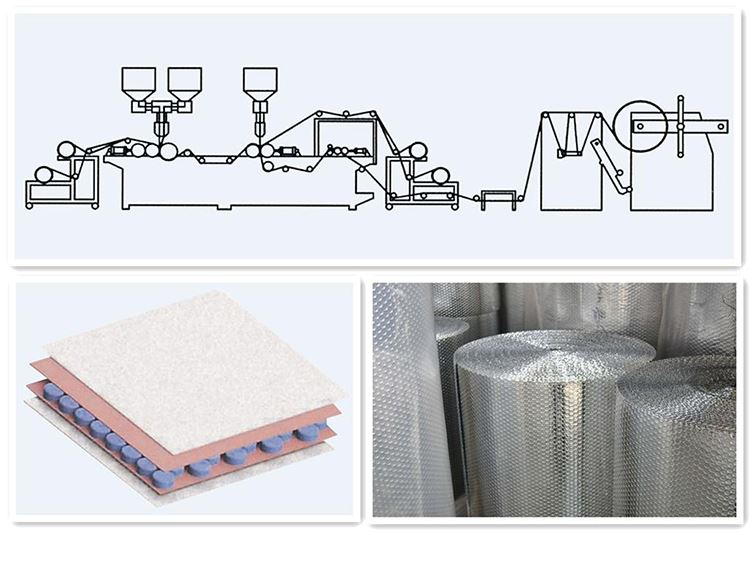

2. To produce 5 layers air bubble film (laminated layer + PE front layer + bubble layer + base layer + laminated layer);

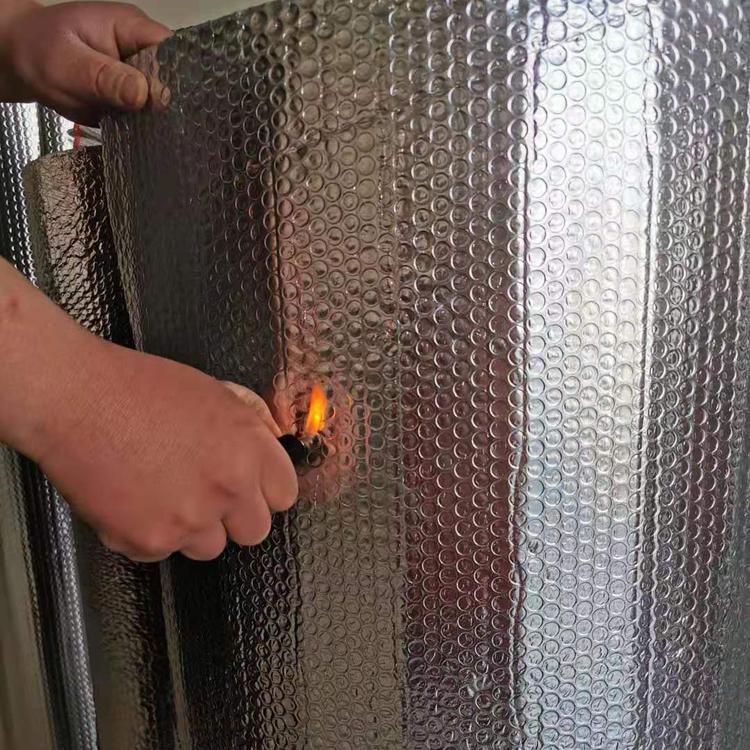

3. The laminated layer can be aluminized foil, MPET foil, kraft paper, EPE foam, BOPP film etc.;
4. Each layer is under individually control, can have different thickness & material formulation and color;
5. Film width from 1,000mm to 3,000mm;Or Customized size.

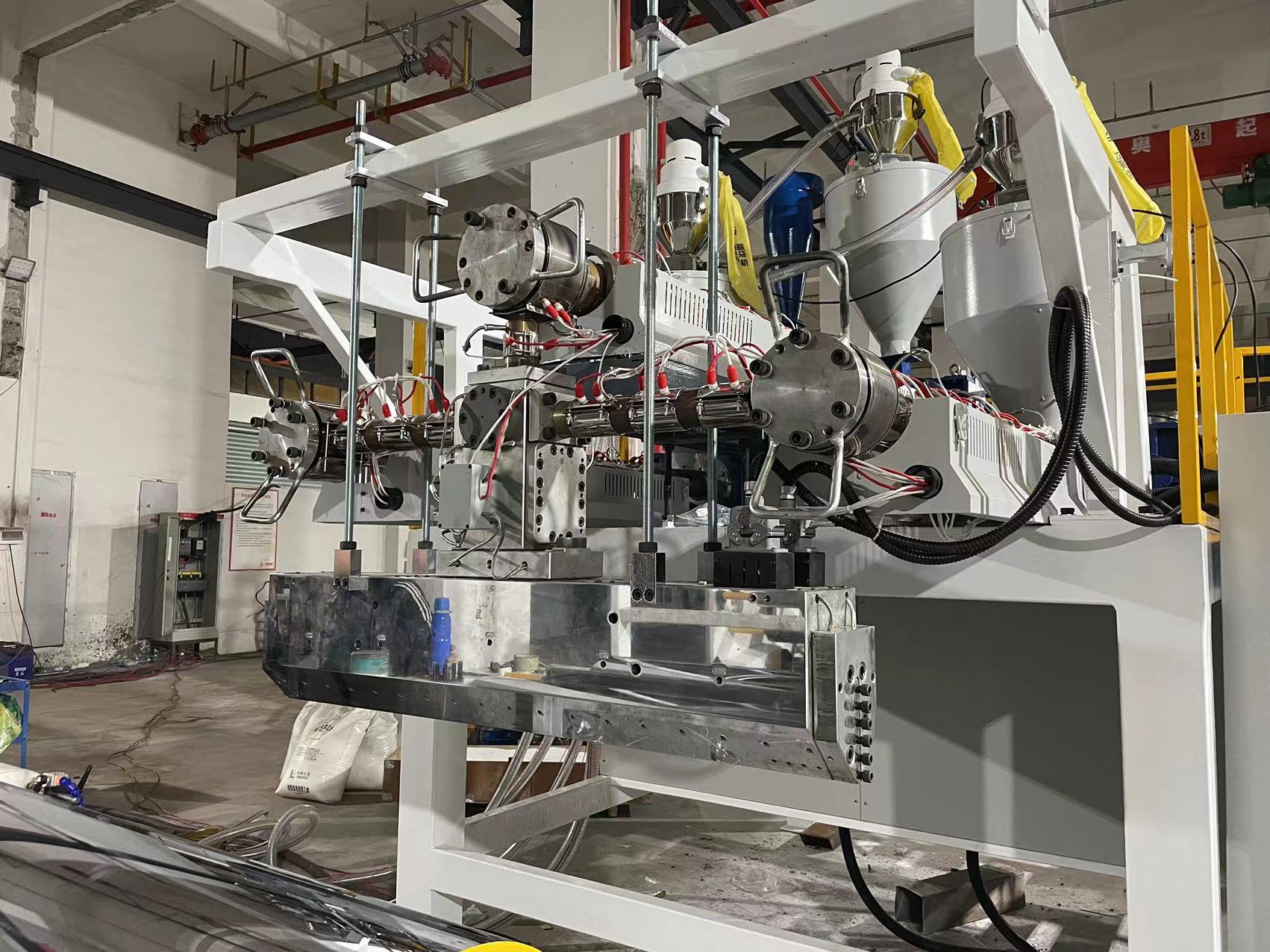

6. Screw L/D ratio is 1:32, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;

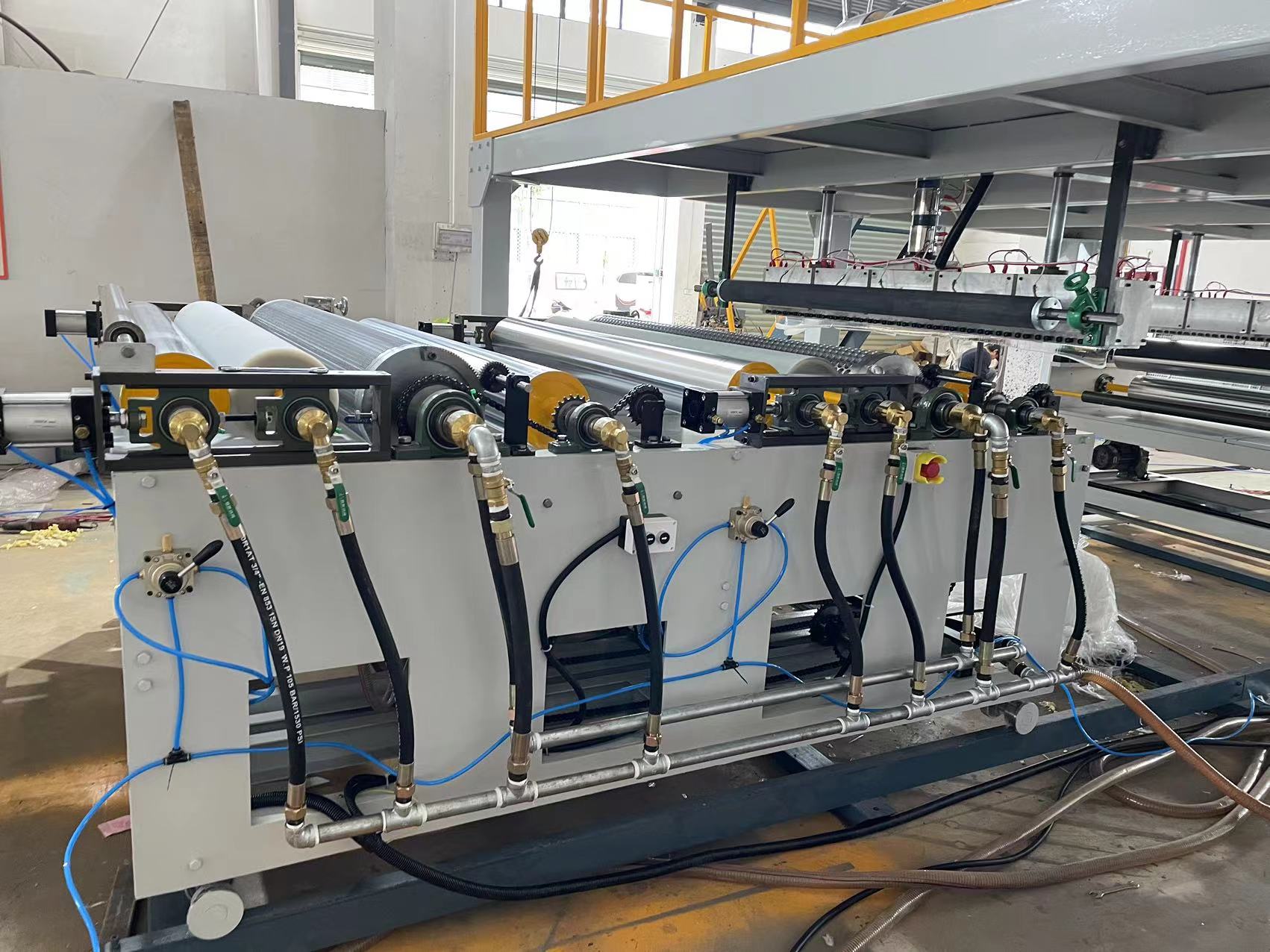

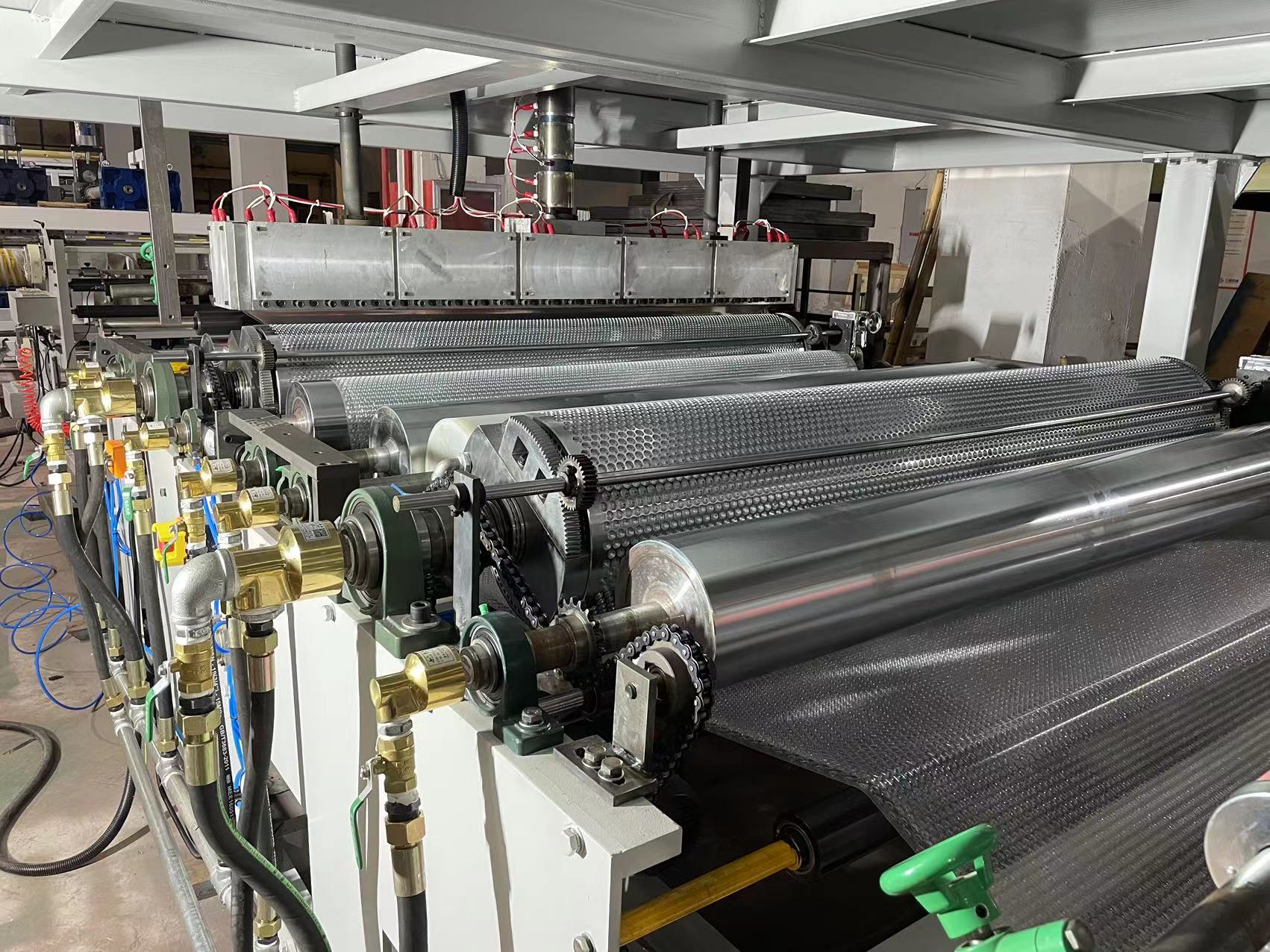

7. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.

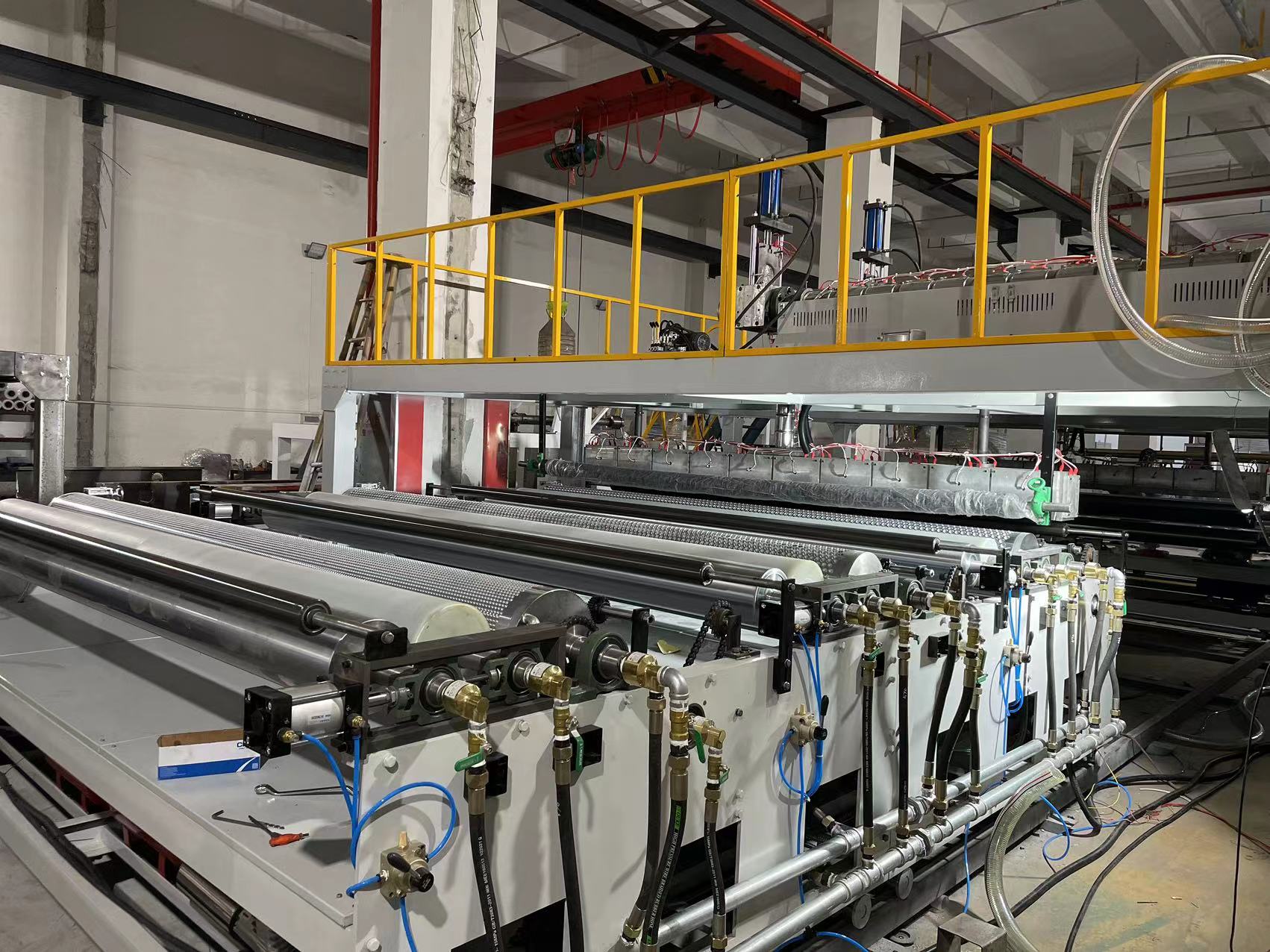

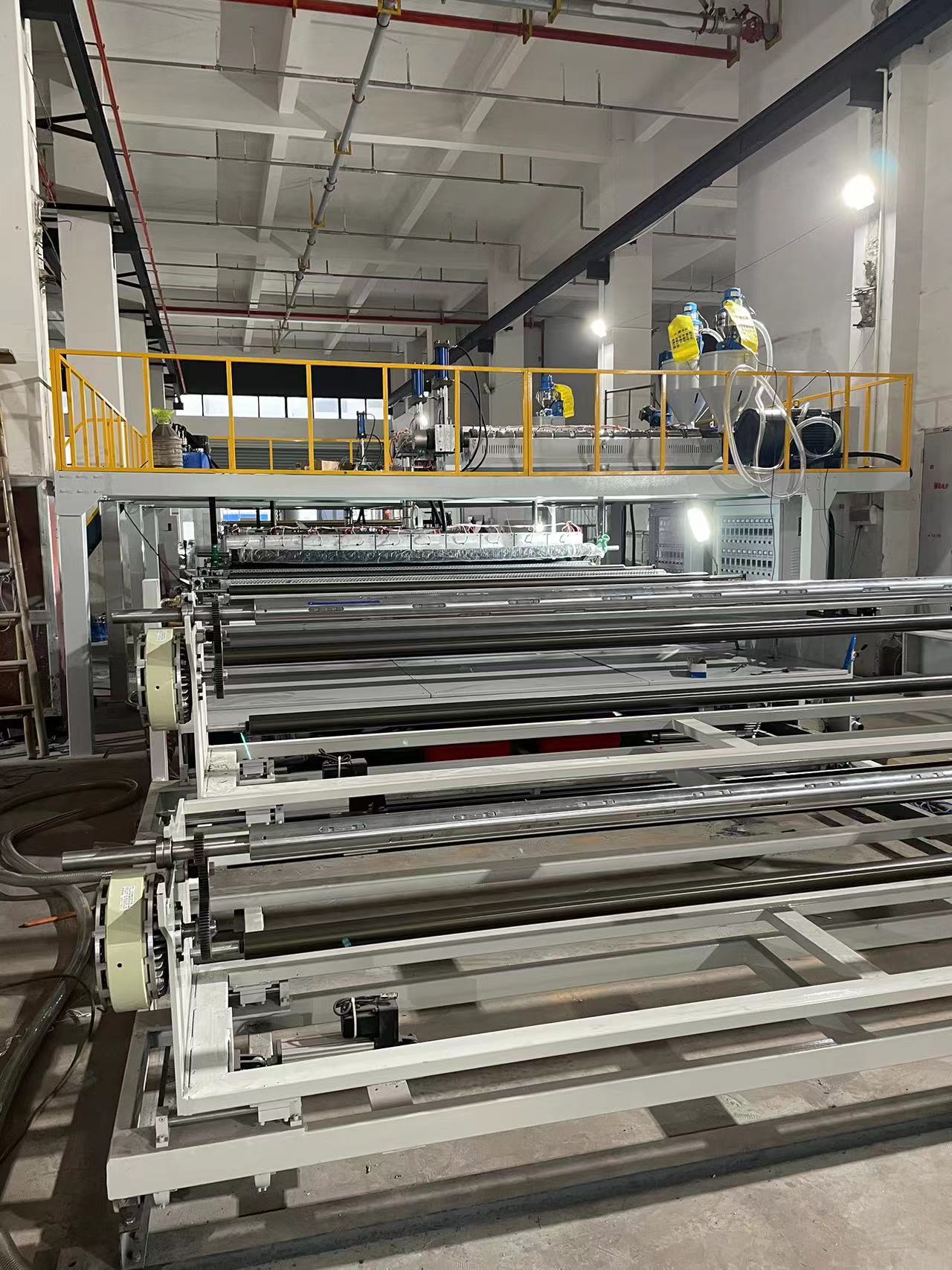

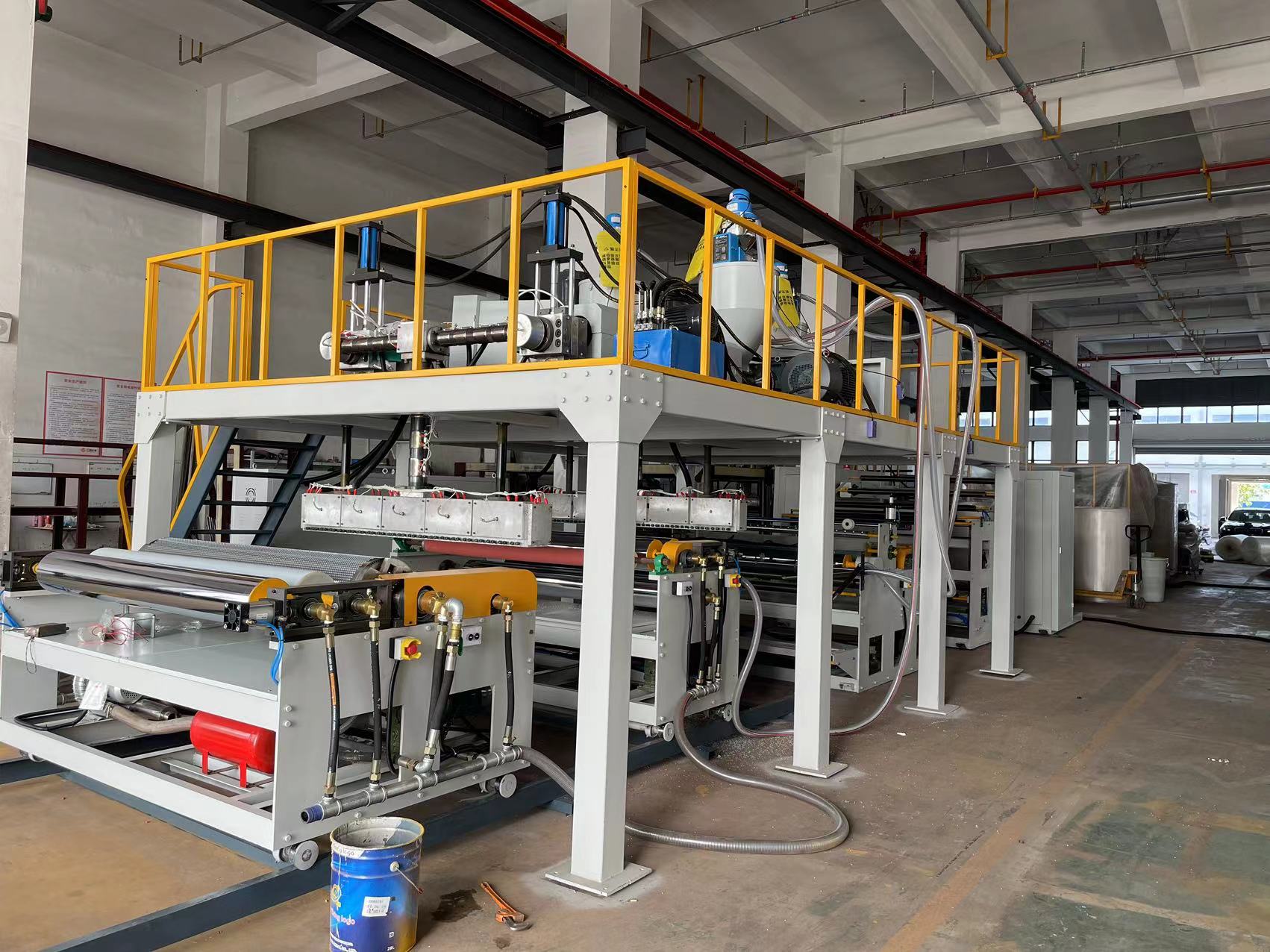

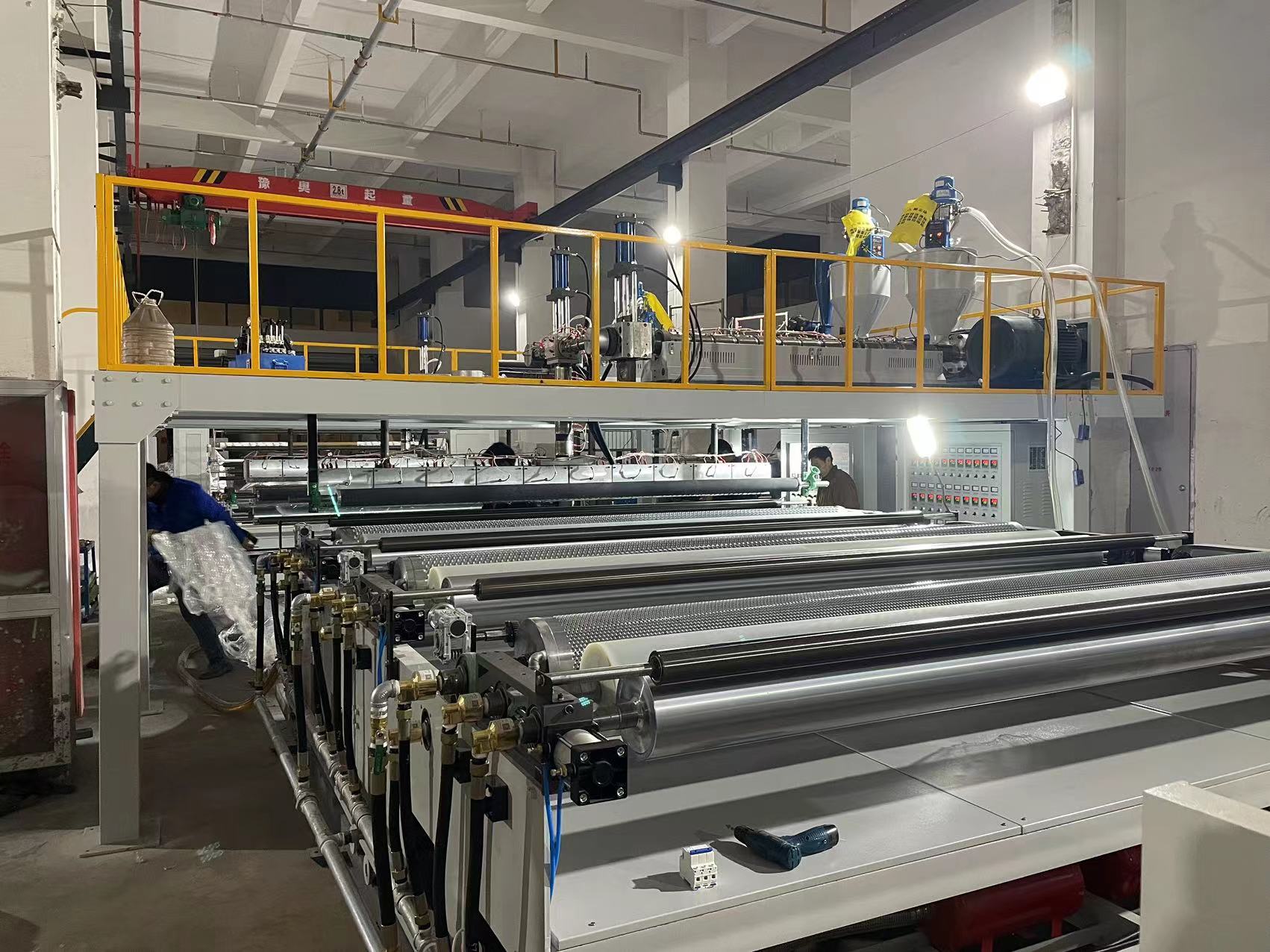

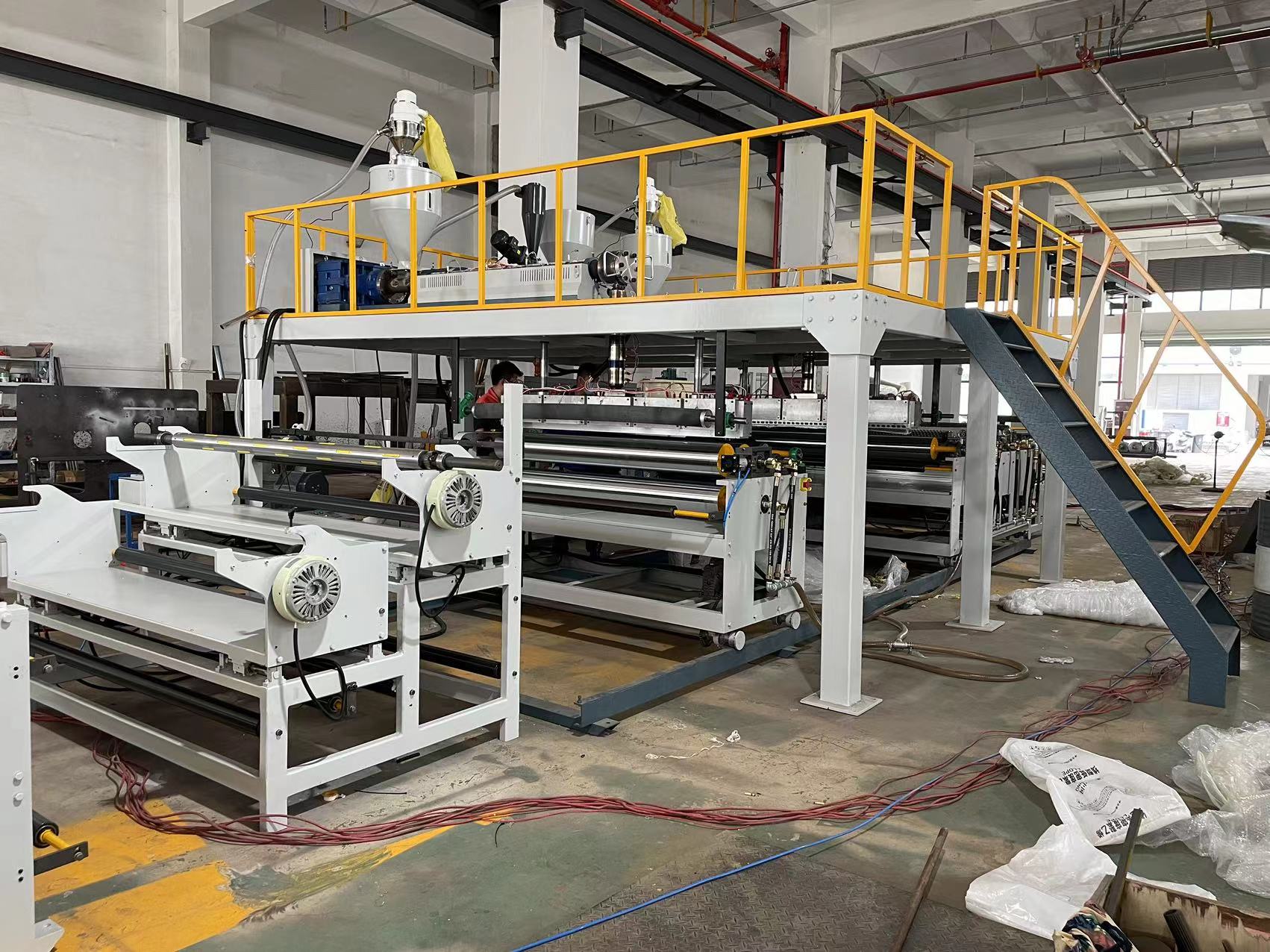

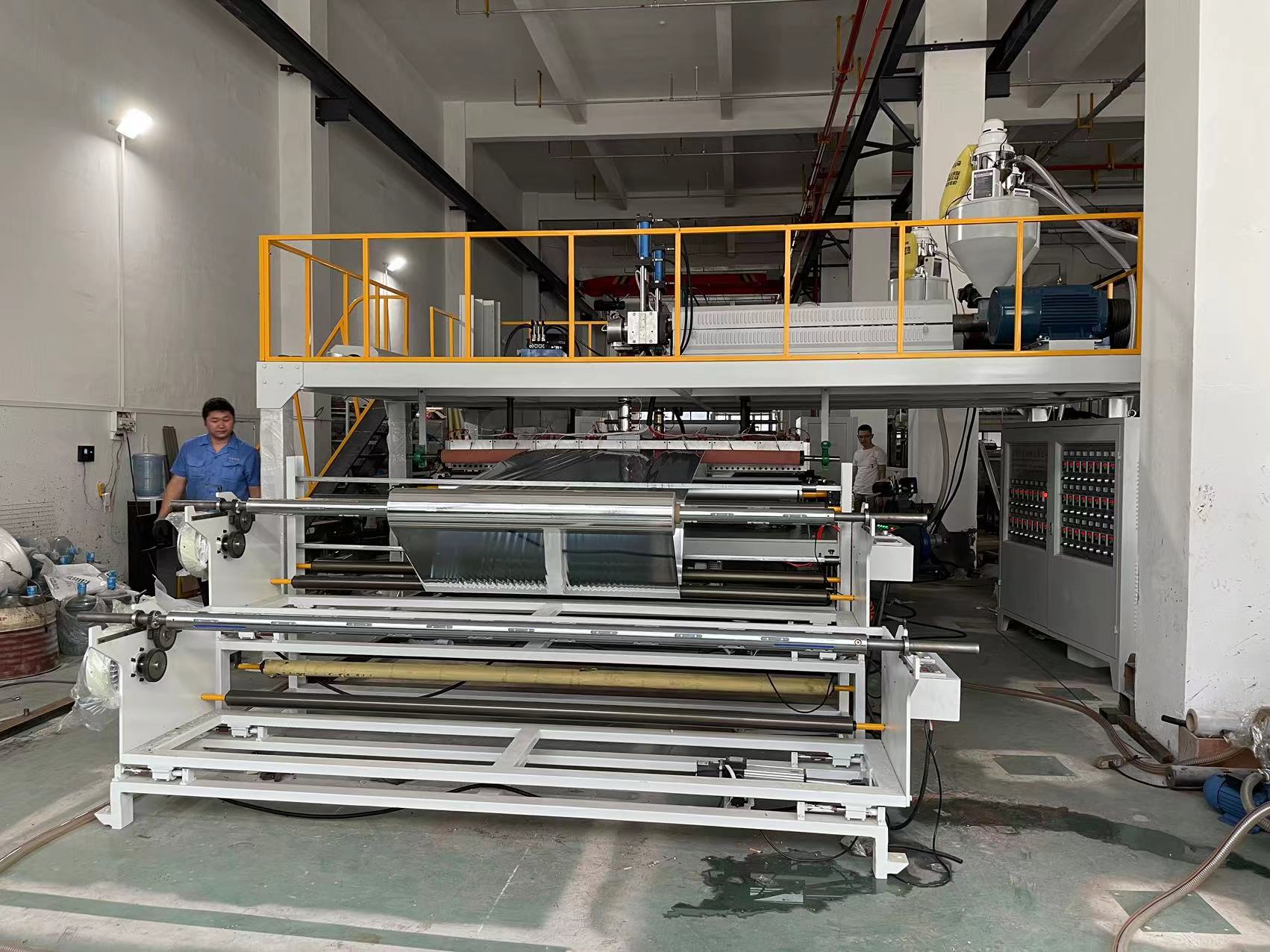

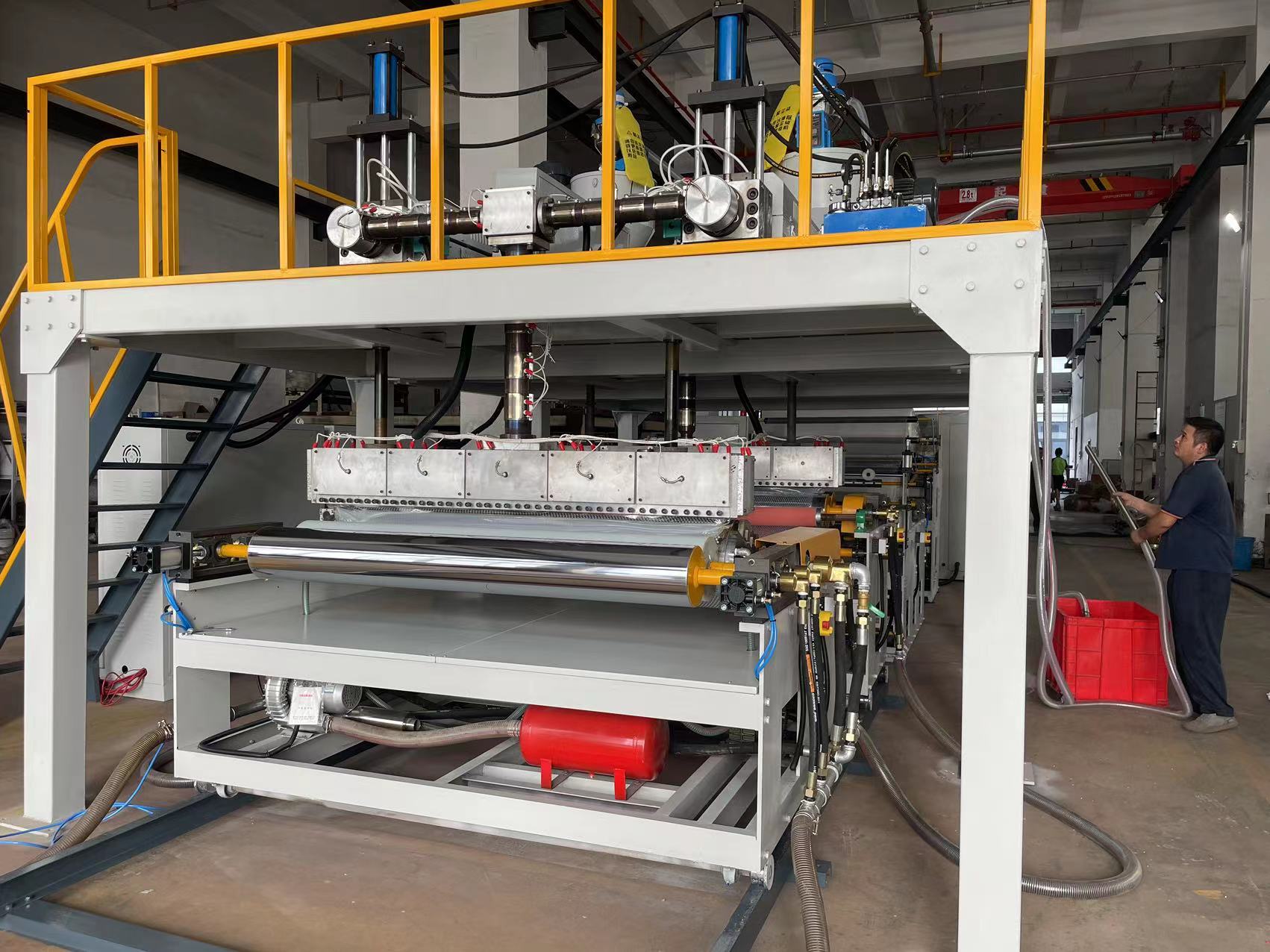

Machine details:
