Computerized Register Rotogravure Printing Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Characteristics

Application: it is suitable for BOPP, PET, PVC, PE, aluminum foil

Feature:
1. This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.

2. Unwind and Rewind:Unwinding fixed singlestation, Rewind double- station, Air shaft loading and unloading,replacement fast secure and reliable.

3. Printing:Vertical register system, high precision and less waste.Doctor blade plays with double-axis.Driven by independent motor.

4. Dry oven:Patent technology,Oven using high temperature axial fans built-in heating.

Optional Parts:
1. EPC
2. Video Camera Monitor

Technical parameters

Model

DASY-800E

DASY-1100E

Max. Web Width

800mm

1000mm

Printing Speed

120m/min

120m/min

Print cylinder dia.

Ф100-350mm

Ф100-350mm

Rolling material dia.

Ф570

Ф570

Print cylinder cross adjustable

30mm

30mm

Print cylinder longitudinal adjustable

100°

100°

Registering accuracy

±0.1mm

±0.1mm

Total power

96kw

109kw

Weight

10000kg

11000kg

Overall Dimension

11000*3100*3200mm

11000*3400*3200mm

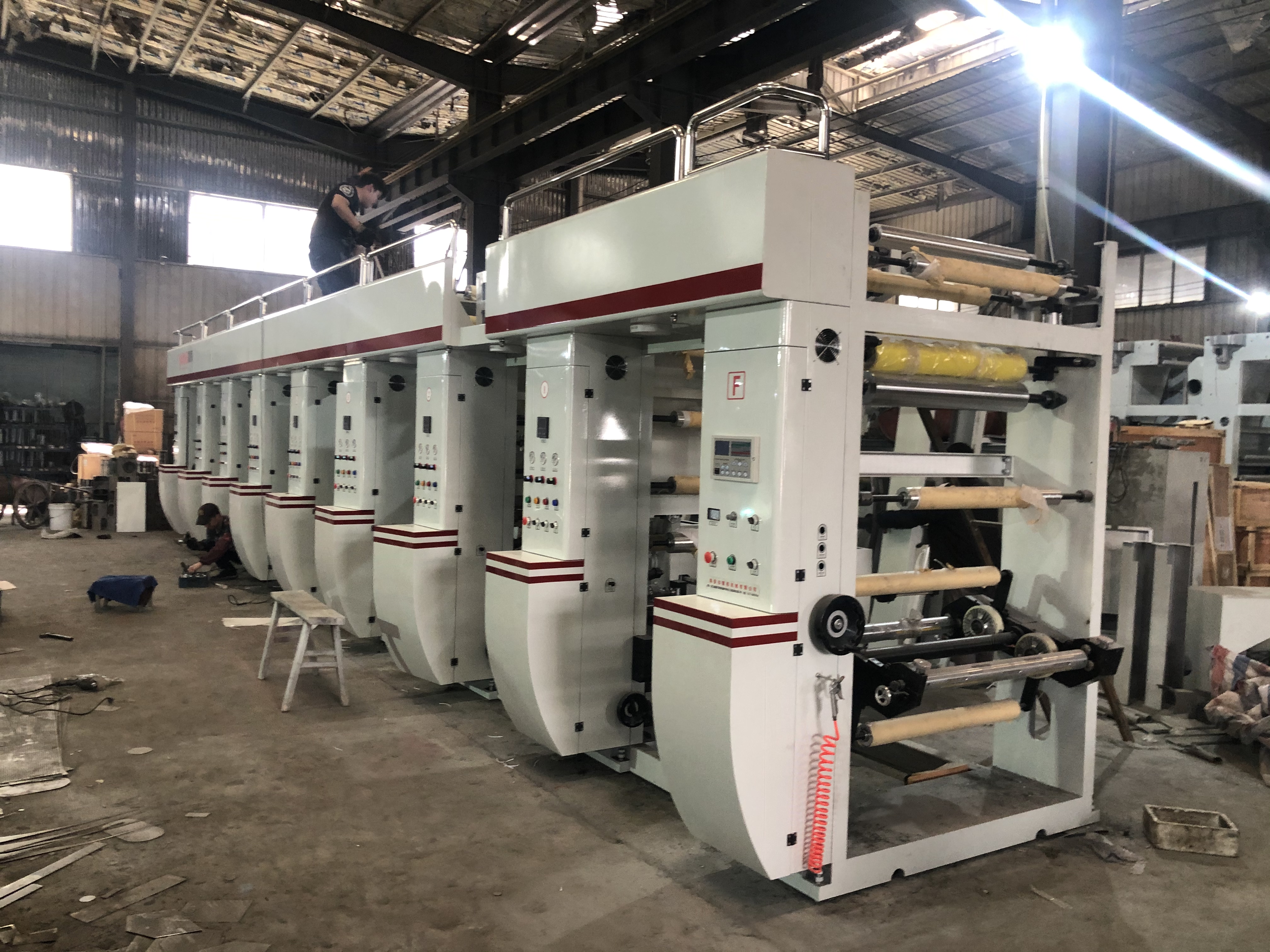

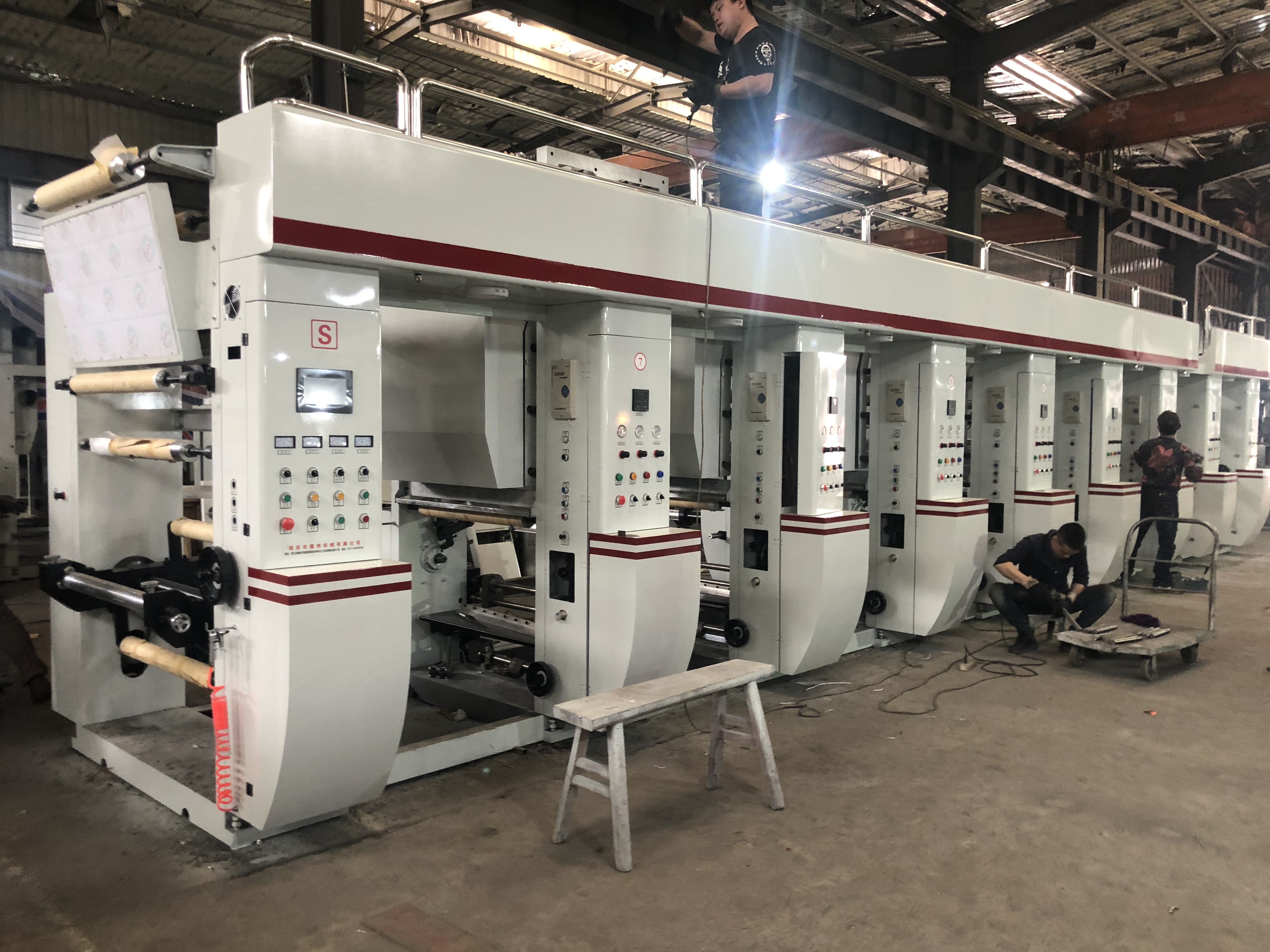

Machines details
