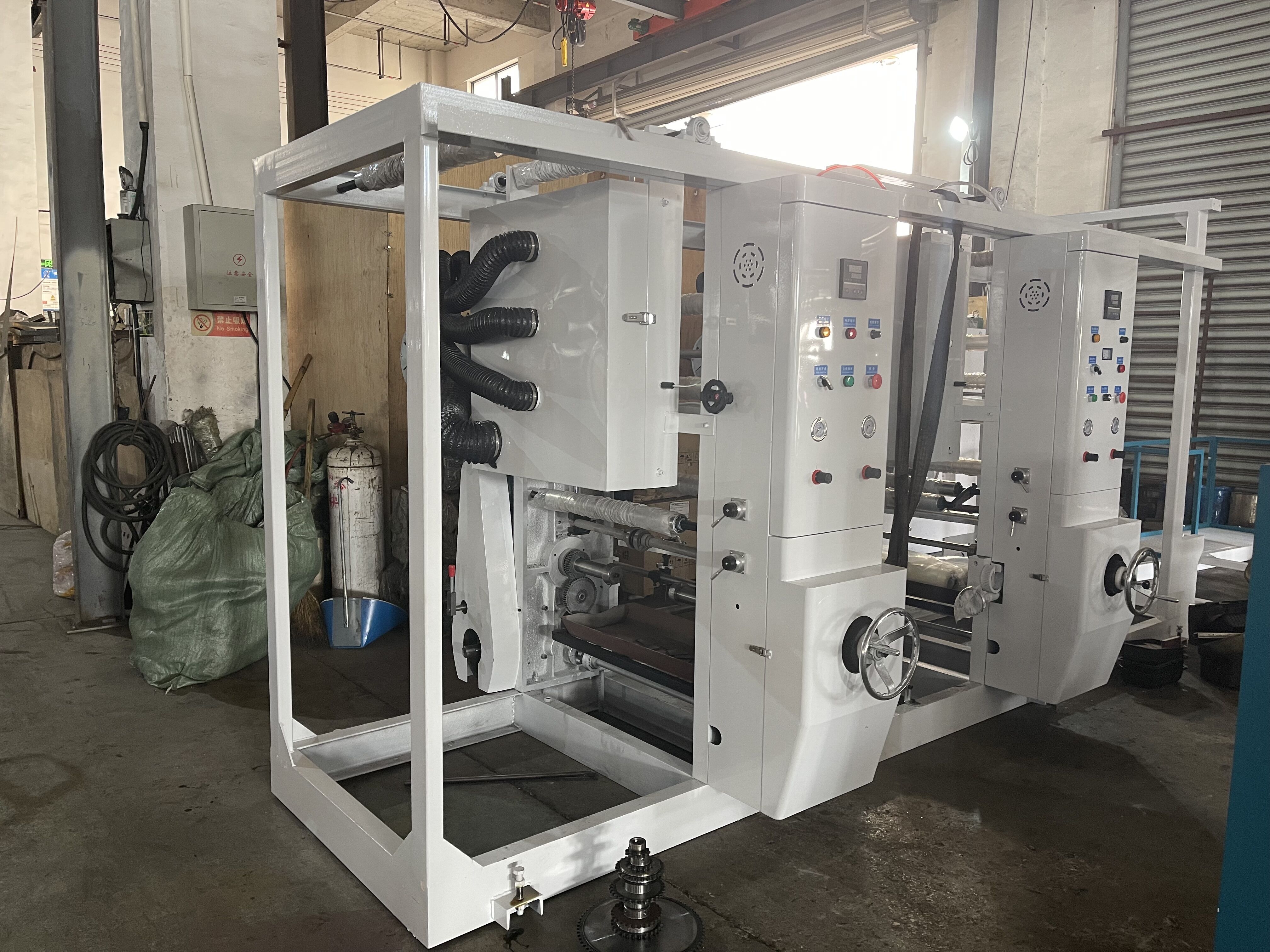

Rotogravure Printing Machine
Application: it is suitable for BOPP, PET, PVC, PE, aluminum foil
Feature:
1. This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.
2. The machine speed 50m/min
3. We customized one to ten colors rotogravure printing machine
Optional Parts:
1. Double Oven
2. Iron Plate for machine frame
|
Model |
ASY-600/6 color |
ASY-800/6 color |
ASY-1000/6 color |
ASY-1200/6 color |
|
Max. Web Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Web Length |
240-940mm |
240-940mm |
240-940mm |
240-940mm |
|
Printing Speed |
50m/min |
50m/min |
50m/min |
50m/min |
|
Registering accuracy |
±0.25mm |
±0.25mm |
±0.25mm |
±0.25mm |
|
Main power |
4kw |
4kw |
4kw |
5.5kw |
|
Blower power |
0.19kw/unit |
0.19kw/unit |
0.19kw/unit |
0.19kw/unit |
|
Heating power |
3.2kw |
4kw |
4.5kw |
5kw |
|
Total power |
18kw |
22kw |
26kw |
30kw |
|
Overall Dimension |
8300*1200*1860mm |
8300*1400*1860mm |
8300*1600*1860mm |
8300*1800*1860mm |
