Fully Automatic Stretch Film Rewinder Machine
Description
Fully automatic stretch film rewinder machine is automatic paper core loading,automatic rewinding,automatic shaft exchange,automatic cut off of rewind roll when reach setting length.

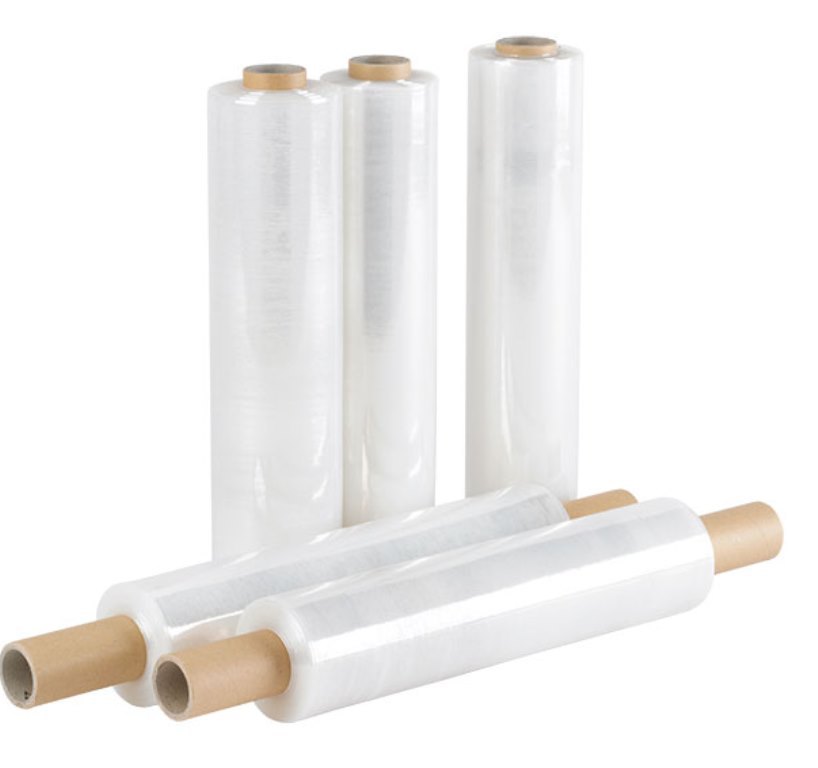

Machine adopts imported PLC man-machine interface communication Program,Touch color screen,inverter control motor user friendly operation,less skilled operator can run the machineIt is mainly for rewinding stretch wrap,pallet stretch film,industrial stretch,wrapping film,food cling film etc.
One operator can run maximum 2-3 units of machines,it can reduce labor cost from production process.
|
Unwind roll width |
Max 500mm |
|
Unwind paper core diameter |
3inch |
|
Unwind roll diameter |
Max475mm |
|
Sub roll width |
Max 500mm |
|
Sub roll paper core diameter |
1.5/2/3inch |
|
Sub roll outer diameter |
300mm(max) |
|
Rewinding speed |
1000-1200m/min(max) |
|
Voltage |
220/380/415v 3PH |
|
Power |
4kw |
|
Machine dimension |
1350x1000x1050mm |
|
Weight |
800kg |
