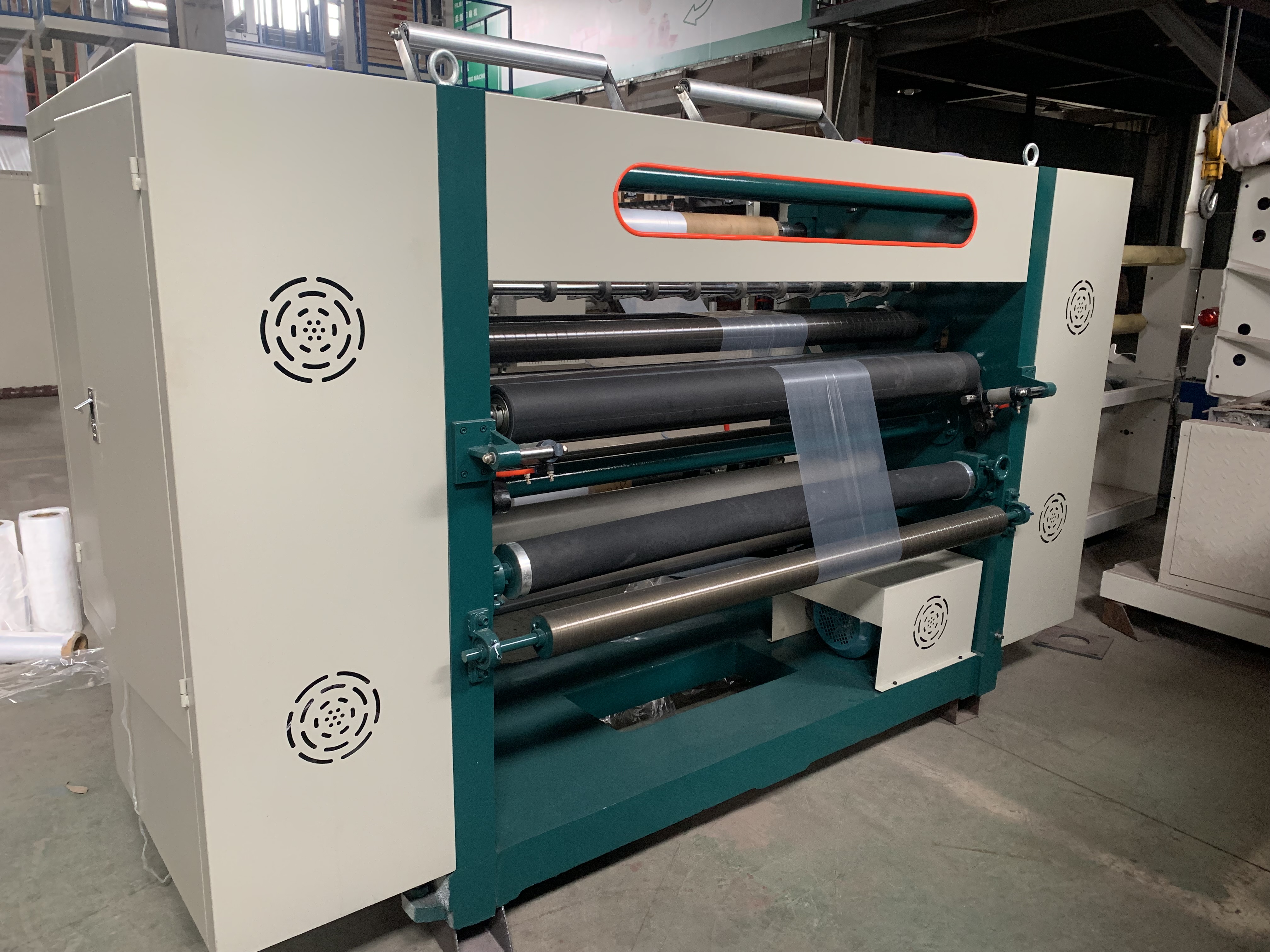

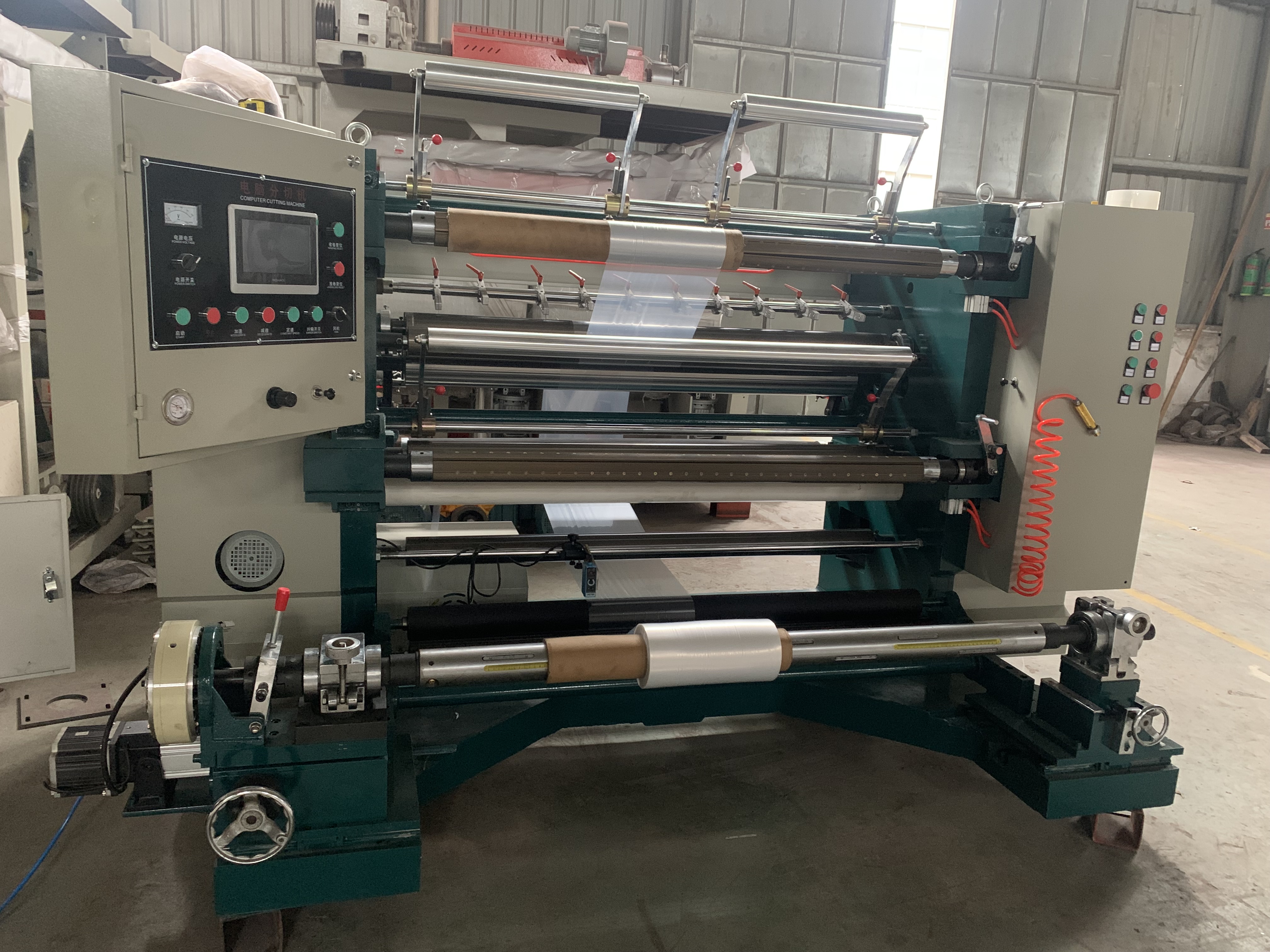

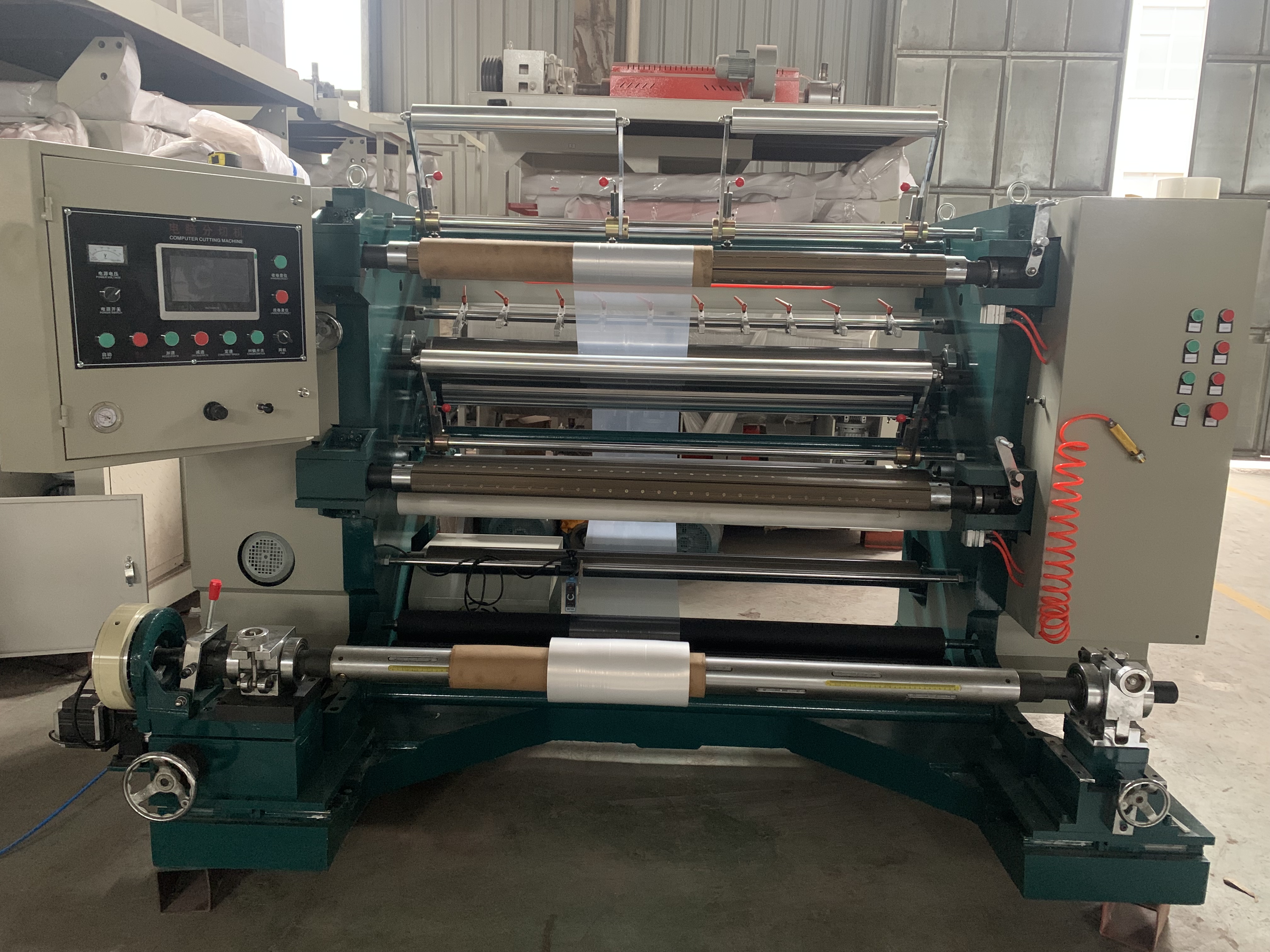

Automatic High Speed Vertical Slitting and Rewinding Machine
Descriptions:
Suitable material : BOPP,PEL,CPP,CPE,PVC, aluminium foil and paper
The slitting machine is suitable for separating and cutting such various roll material as BOPP,PEL,CPP,CPE,PVC, aluminium foil and paper,etc, and can cut edge, separate and cut materiel according to different requirements during production. This device has an optical tracking, automatic correcting, tension control, rolling count of the excellent performance, simple operation, stable and reliable. Mainly used in plastic film, cellophane, paper, aluminum foil decile cut.
Feature:

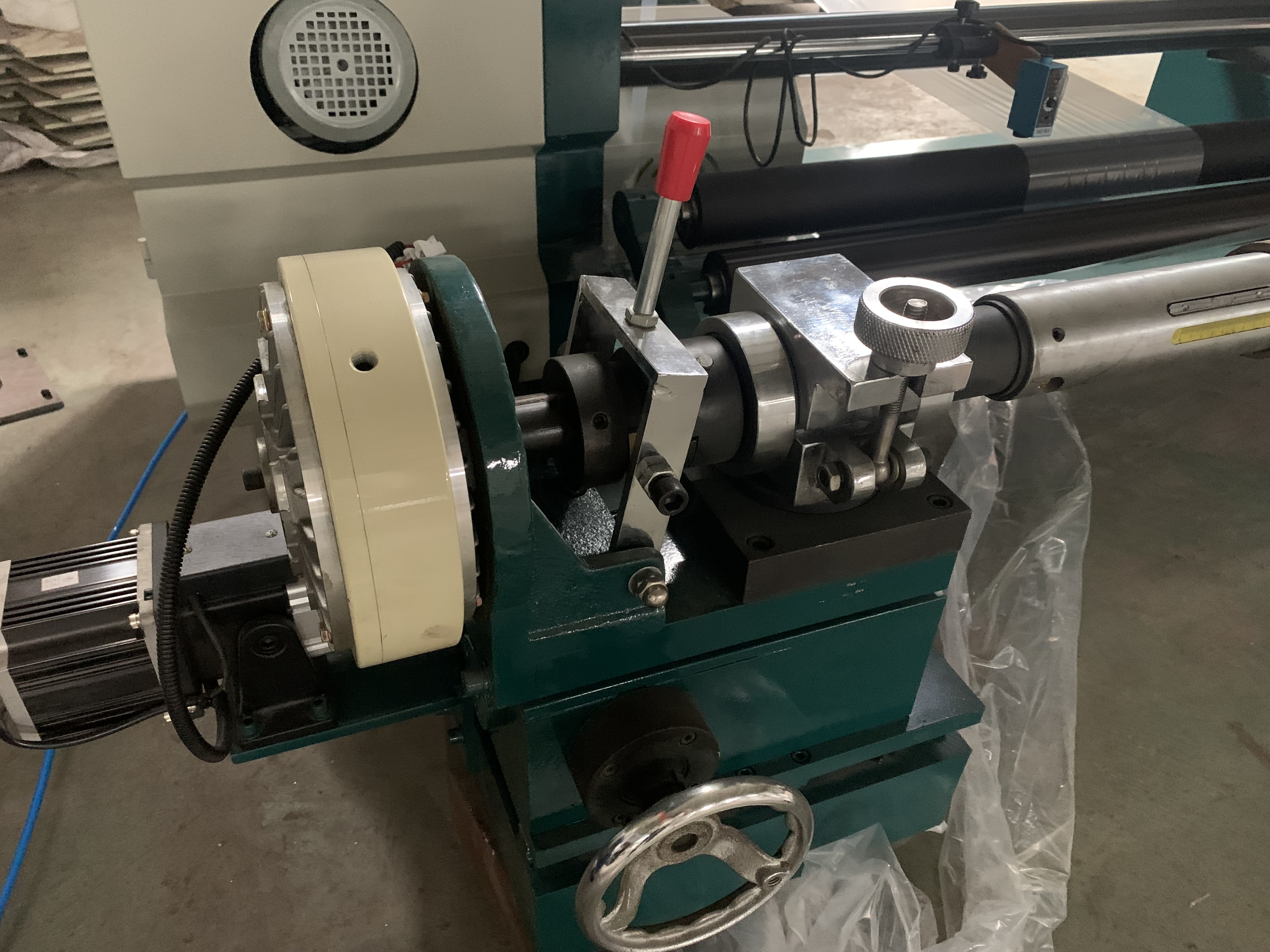

Equipped with Unwinding and rewinding magnetic powder each 5kg .
Optional Equipment:
1. Magnetic powder 10kg
3. PLC and touch screen
4. Round knife 10pcs
|
Model |
LFQ-1100 |
LFQ-1300 |
|
Max .width |
1100mm |
1300mm |
|
Max.diameter of rewinding |
Φ450 |
Φ450 |
|
Max.diameter of unwinding |
Φ600 |
Φ600 |
|
Width of roll material cutting |
30-1100mm |
30-1300 mm |
|
Inner Dia |
76mm |
76mm |
|
Separating and cutting speed |
200m/min |
200m/min |
|
Deviation-rectifying error |
≤±0.3 |
≤±0.3 |
|
Power |
3kw |
3kw |
|
Outline diameter(LXWXH) |
1100x2200x1400mm |
1100x2600x1400mm |
|
Weight |
1500kg |
1800kg |
 |
 |
 |
 |
 |
 |
