Characteristics

Descriptions:

PVC  LDPE HDPE pulverizer machine is mainly used in producing plastic powder from plastic granules, scraps. This  pulverizer has features of good-designed structure, high capacity, low noise.
The whole set of plastic pulverizer miller include feeding hopper, grinding chamber, vetex hopper, vibrating sieve, regrinding system, dust-cleaner. The blade for this plastic pulverizer could be rotor type blade and disk type blade. With cooling system, our plastic pulverizer can be applied to PP, PE, EVA, ABS, PVC materials.

Feature:
1. Low power consumption, high yield, Simple structure and easy installation
2. Millstone gap power and the fixed knife, particular from of the regulation(three to complete), new type of the simple, easy to control the size of the power.
3. Host with the wind, water circulation cooling system.
4. Simple replaceable of high-quality knives, and it can be used repeatly after grinding.

Technical parameters

Model

KP-400G

KP-500G

Disk diameter

400mm

510mm

Equipment power

22KW

37KW

Feeding type

Automatic feeding, with speed adjust

Automatic feeding, with speed adjust

Capacity

80-150kg/h

150-200kg/h

Powder size

0-80 mesh. Equip a vibrating sieve

0-80 mesh. Equip a vibrating sieve(5 layers)

Fan

4KW

4KW

Fan closing

0.75KW

0.75KW

Vibrating motor power

1.1KW

1.1KW

Automatic feeding

150W

200W

Blade material

Special steel

Special steel

Dimension

1800*1100*2500mm(L*W*H)

2000*1100*2800mm(L*W*H)

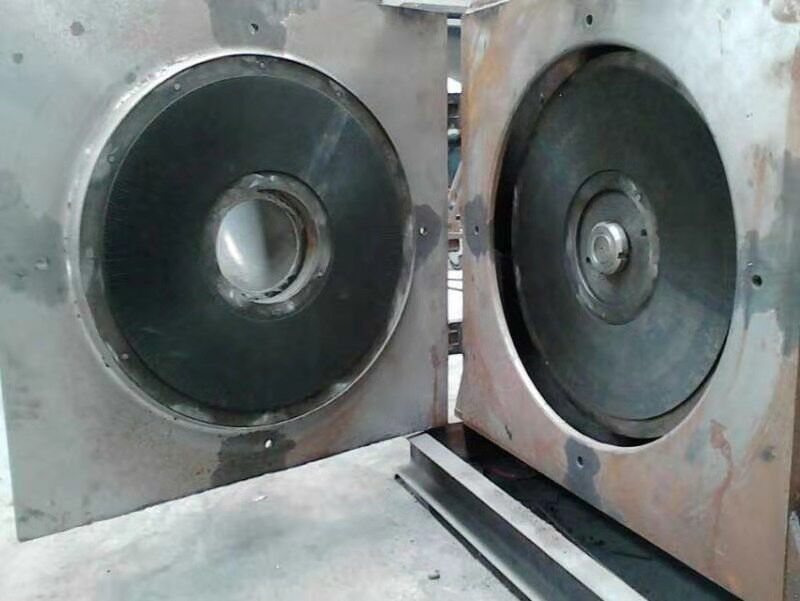

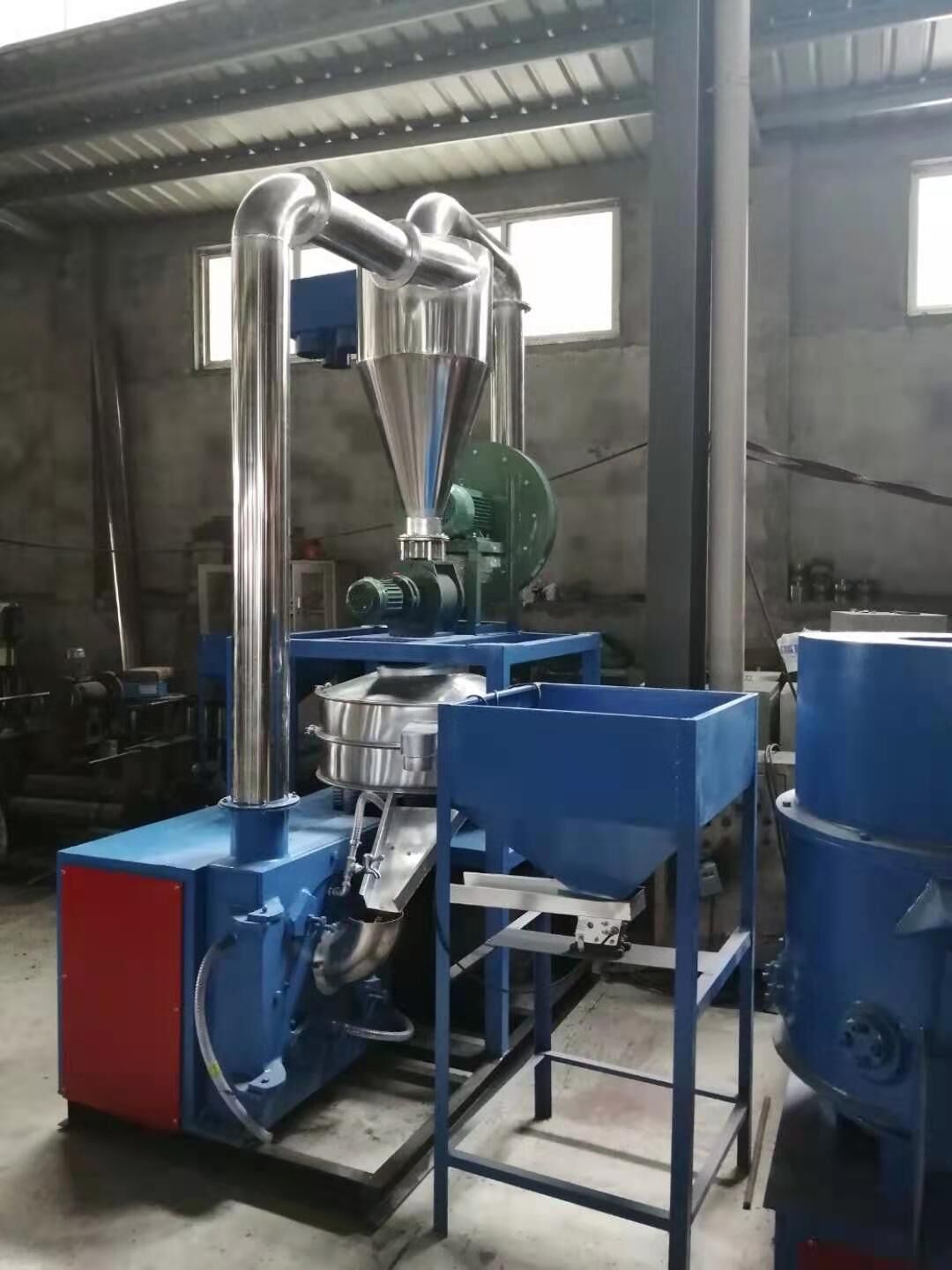

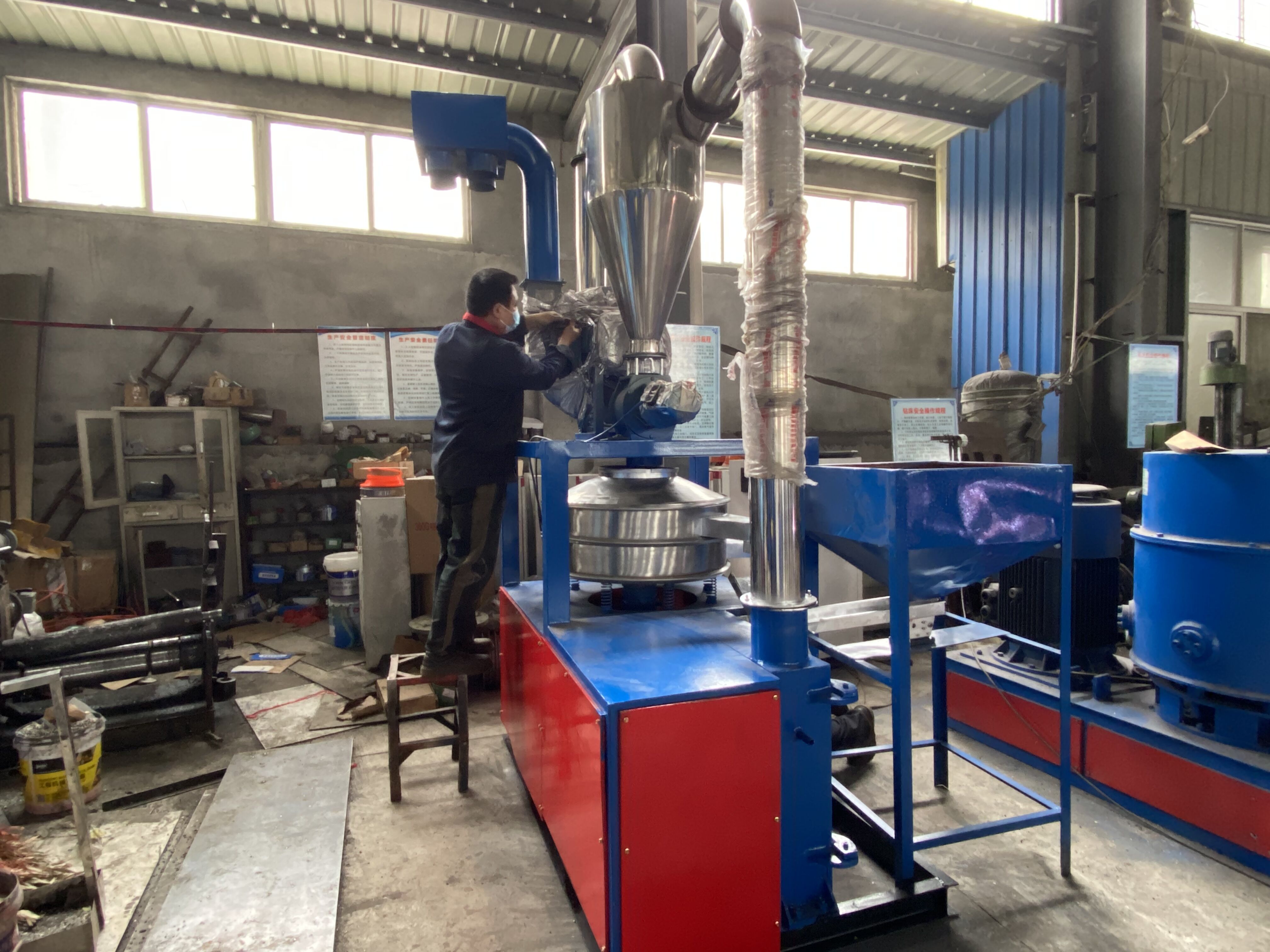

Machines details
