Descriptions:

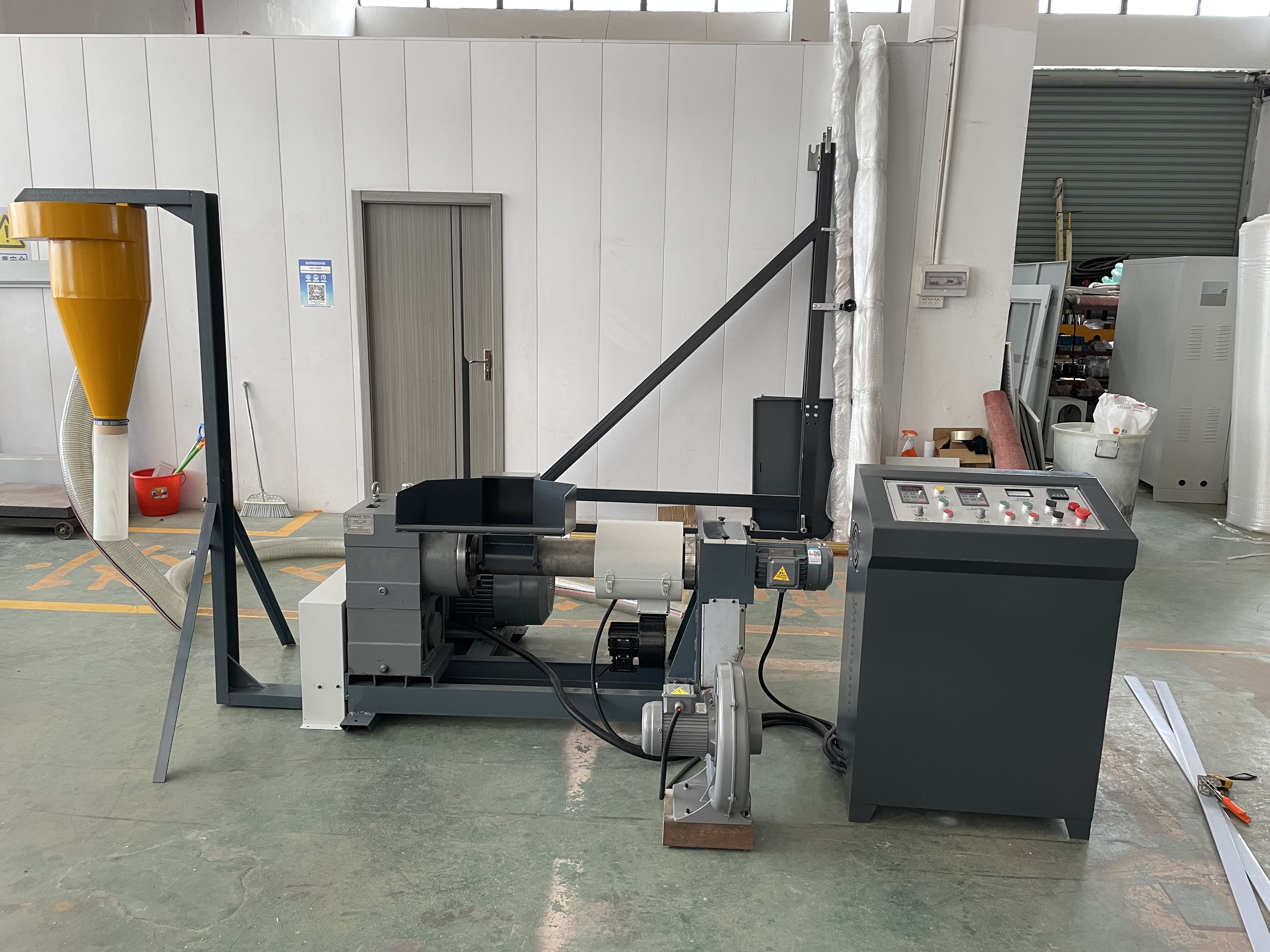

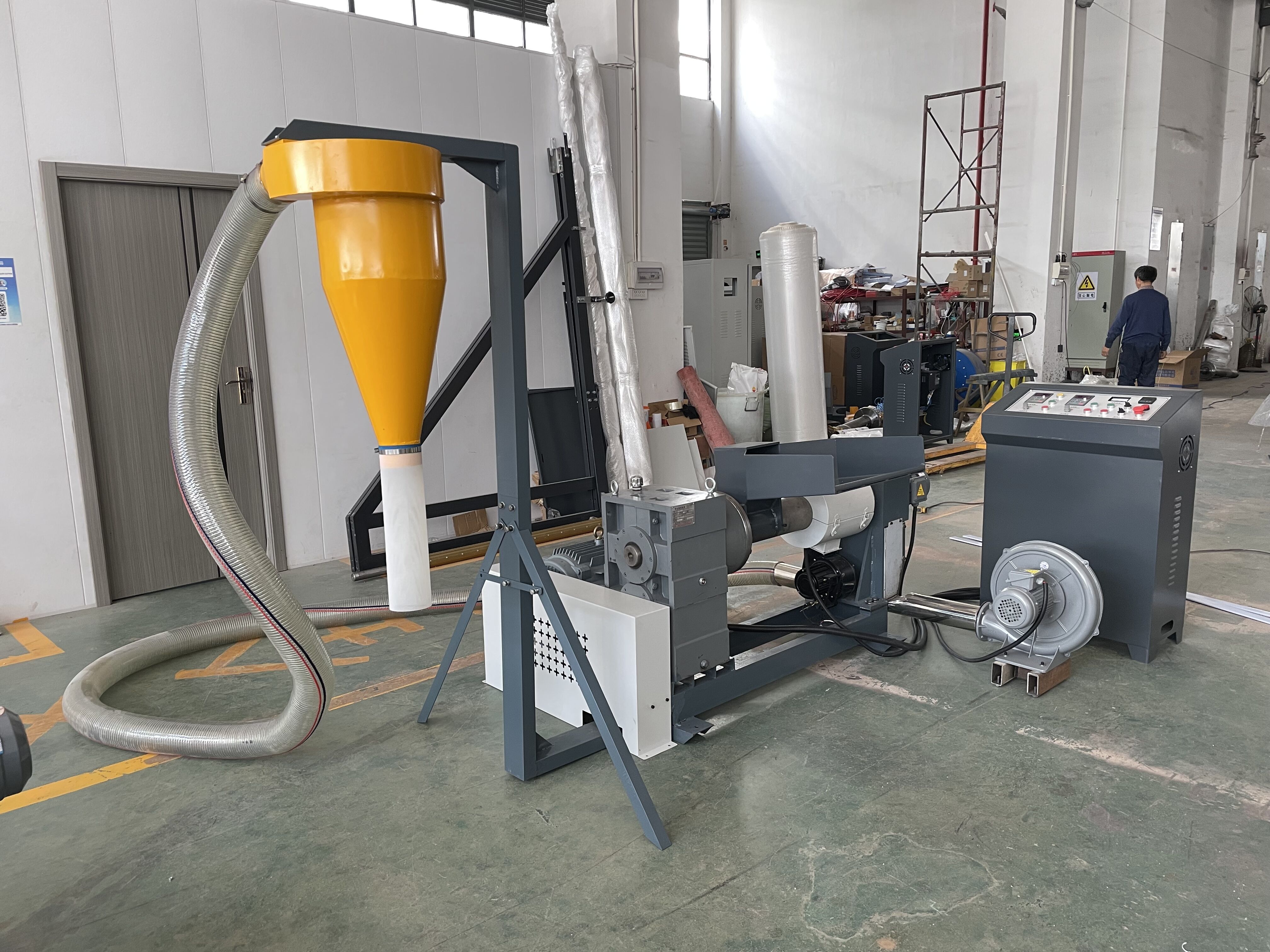

This machine is called Smokeless Waterless Air Cooling Recycling Granulation Machine, which is specializing in recycling clean waste plastic film or biodegradable film into granules for second use, mixed with virgin grnaules 100% for blowing film again in film blowing machine, in the air cooling granulator, low temperature, air cooling, without water, smokeless, suitable for recycling plastic T-shirt bag's waste plastic film, mini machine, small capacity, about 30-40kg/h, economical equipment for small scale factory.
Feature:
Environmental protection: no smoke, no dust, no water, low energy consumption, saves labor cost.
Crushing/ grinding & agglomeration in one operation.
Lower power consumption: No electricity required for heating.
Minimum damage to the raw material: Pure physical low temperature softening point granulation below the melting point. This will not cause any secondary damage/ thermal degradation of raw materials so
Machine needs small area & requires only one operator.
Easy to operate & safe to use: Quick start the machine. Heating very fast.

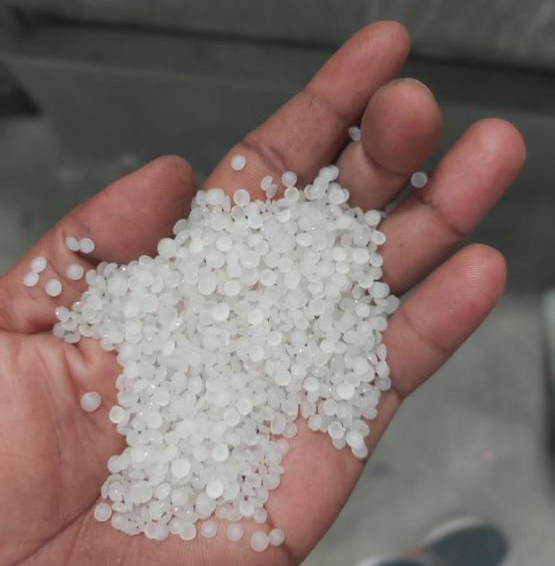

Pellets/ granules will be compact, uniform, high density, not easy to break.
Let your waste no longer pile up, convert waste into profits by reusing it without much of a degradation and deterioration of its properties…..
Model and description |
KP-B75 Pelletizer |
Power Supply |
Machine with 380 V ,50HZ supply voltage, 3 phase. |
Warranty |
The manufacturer makes guarantee that we supply the new (unused) machine, and we offer the warranty of 12 months. In this period, we will supply the free wearing parts in case of any quality issue due to manufacturing defect. We don’t offer warranty for wrong operations |
Suitable for material |
PE, PO,PP, PVC and biodegradable Biopolymers |
Total Power |
15 Kw |
Extrusion Motor |
11 Kw |
Cutter motor |
1.5 Kw |
Fan motor |
0.75 Kw X 2 Sets |
Screw diameter |
Ø 75 mm |
Working current |
12-15 A |
Power consumption |
8 KW/hr |
Capacity |
30-60 kg/hr (Depends on the thickness of waste material) |
Machine weight |
700 KG |
Machine Dimension |
L 2170mm * W 1670mm * H 2145mm |
Wooden Packing Dimension |
L 2.3m * W 1.0m * H 2.1m |
![]() |
![]() |
![]() |
![]() |
