Double Stage Water Cooling Plastic Film Pelletizer Recycling Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Characteristics

Descriptions:
The water cooling pelletizer recycling machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.
It is equipped with motorized control or hydraulic screen changer, force feeder and automatic temperature control.
The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same
discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,
and favorable economic benefit.

Feature:
1. Water cooling type
2. It is equipped with automatic constant temperature, motorized or hydraulic screen changer
3. the cutter is rotation type
4. Feeding unit adopts force feeder.
5. Screw and barrel are made of 38CrMoA1A with nitrogen treatment.
6. double stage



Technical parameters

Model

KP-C100

KP-C110

KP-C120

Diameter of Screw

100mm

110mm

120mm

L:D

20:1

20:1

20:1

Speed of Screw

10-110rpm

10-110rpm

10-110rpm

Gearbox

173

180

200

Motor Power

22kw

30kw

37kw

Output

90kg/h

110kg/h

130kg/h

Water Tank Length)

2500mm Stainless

Screen changer

Hydraulic/Motorized control

Screen changer hole

6mm

Die head hole(Alloy Metal)

4mm

Cutter Knife

Hobbing Cutter

Machine Weight

2000kg

2200kg

2500kg

Overail Dimensions

5.5*1.5*1.1m

6*1.35*1.3m

6.2*1.4*1.3m

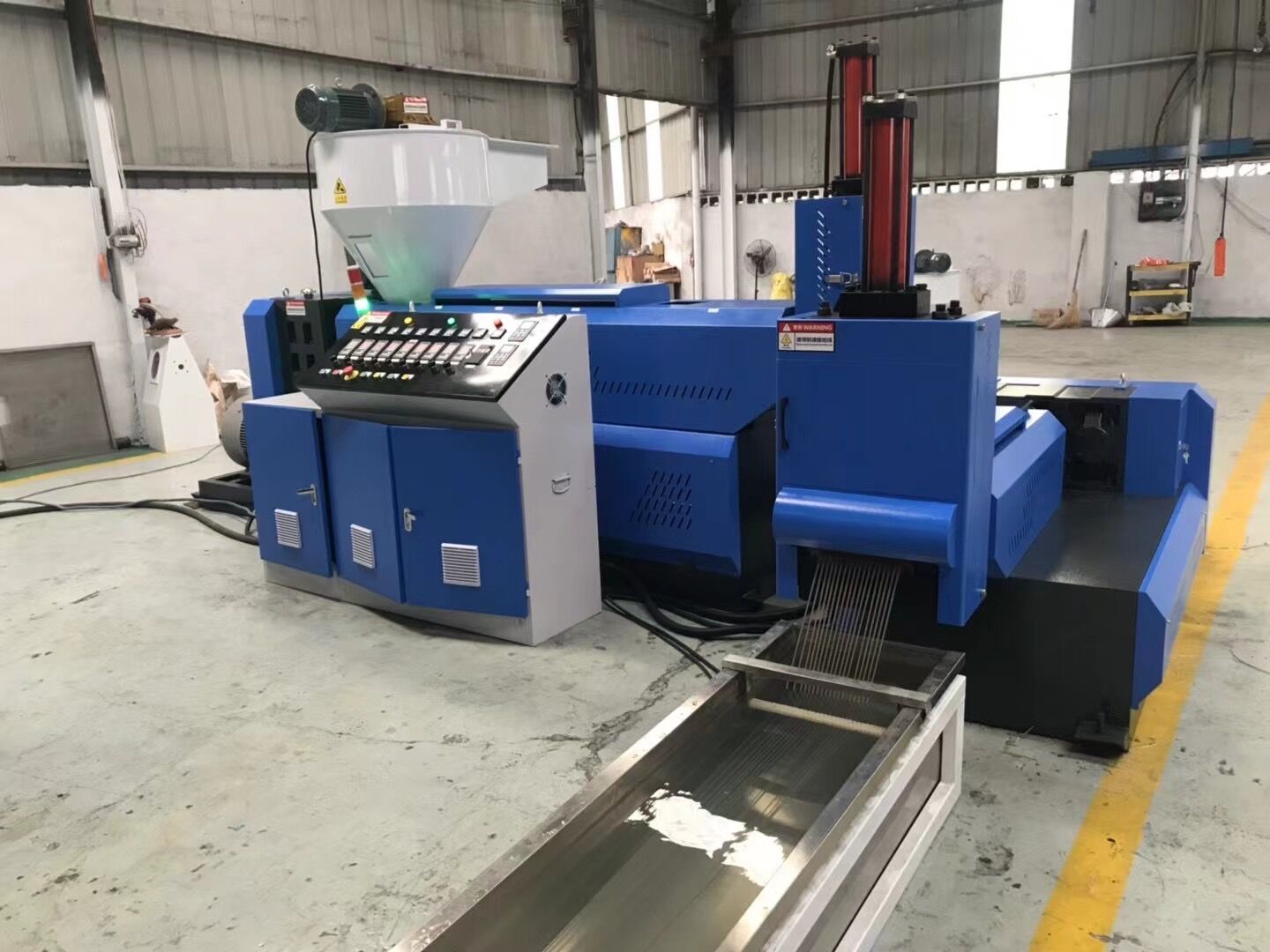

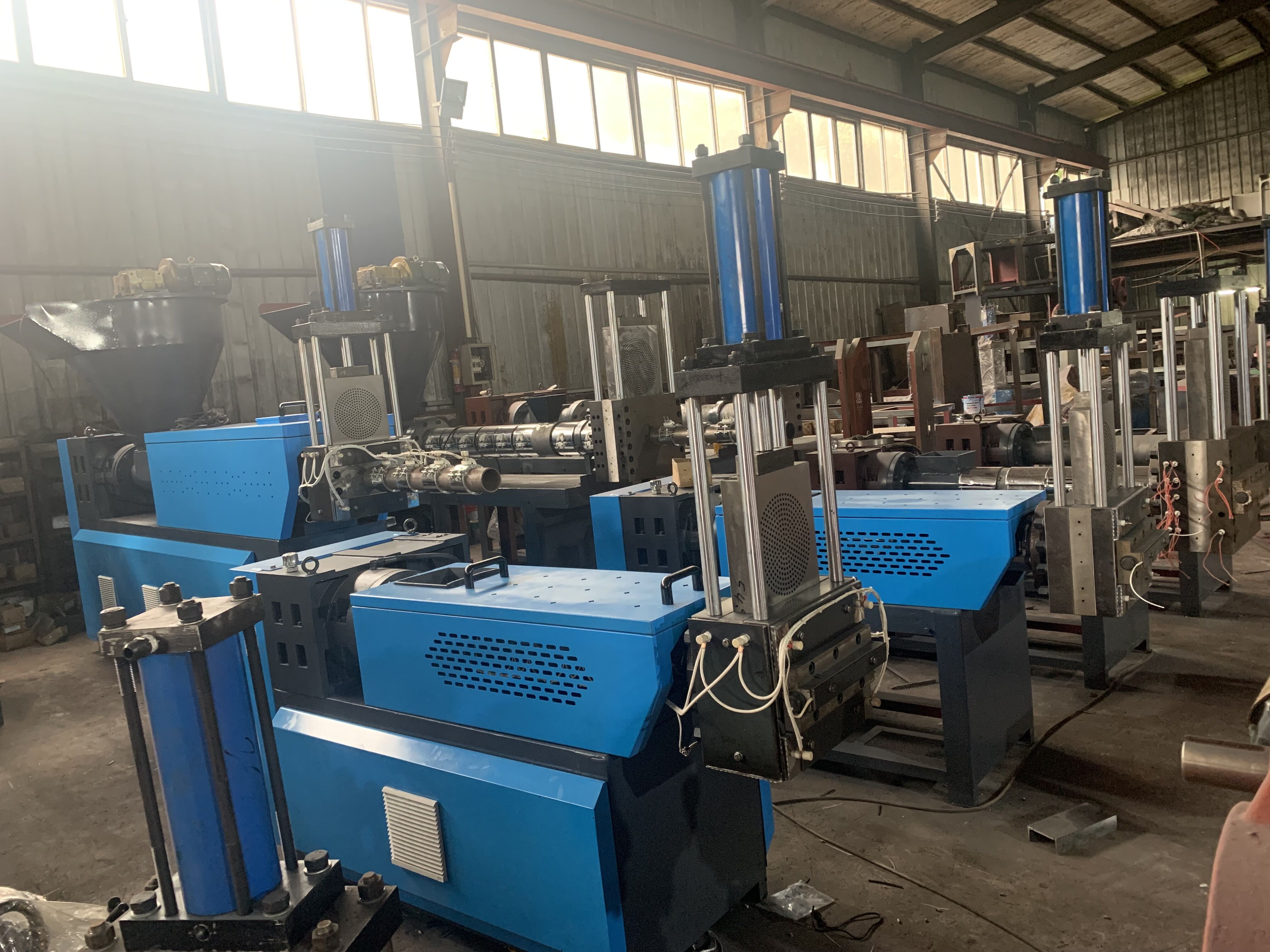

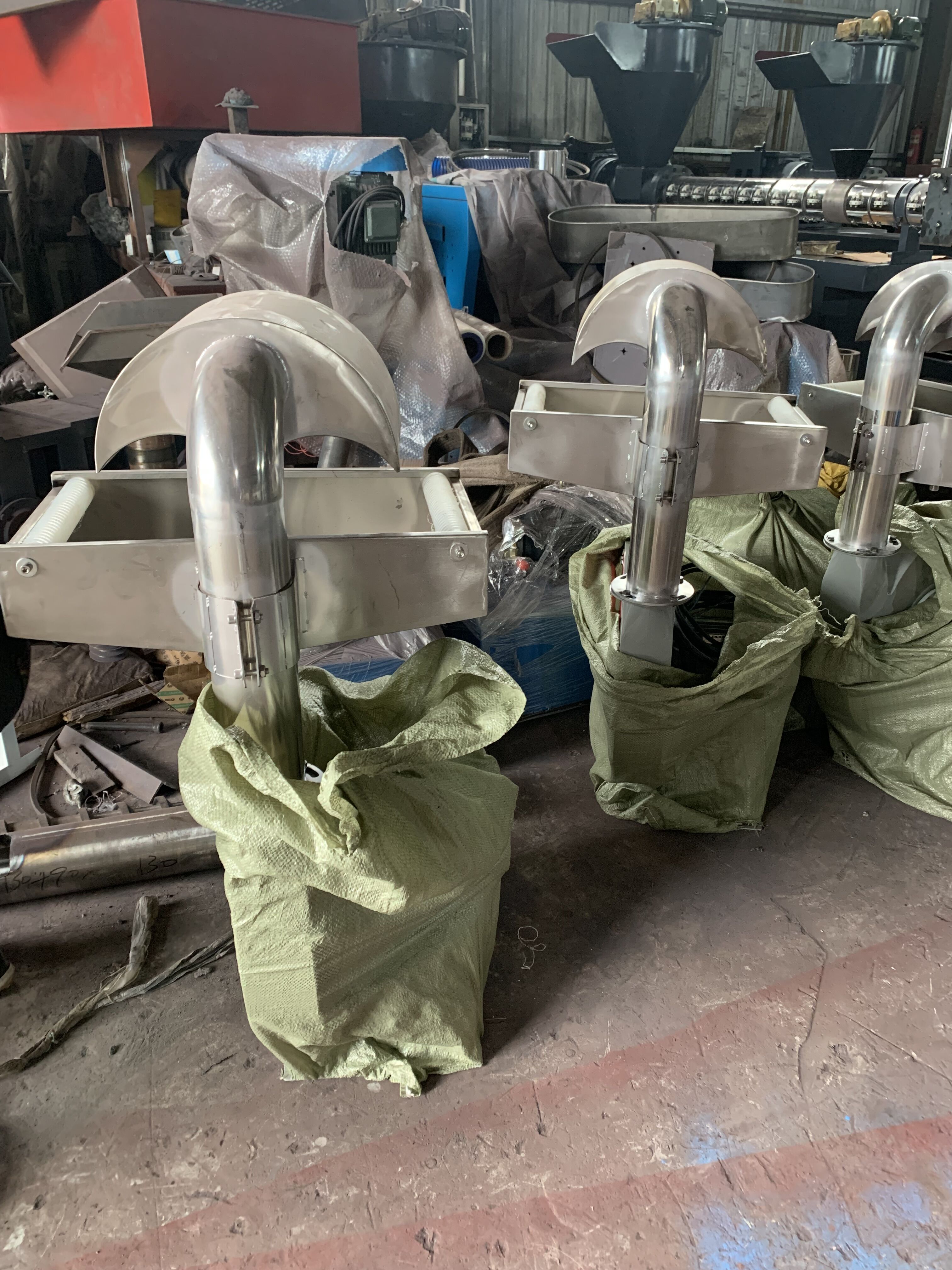

Machines details

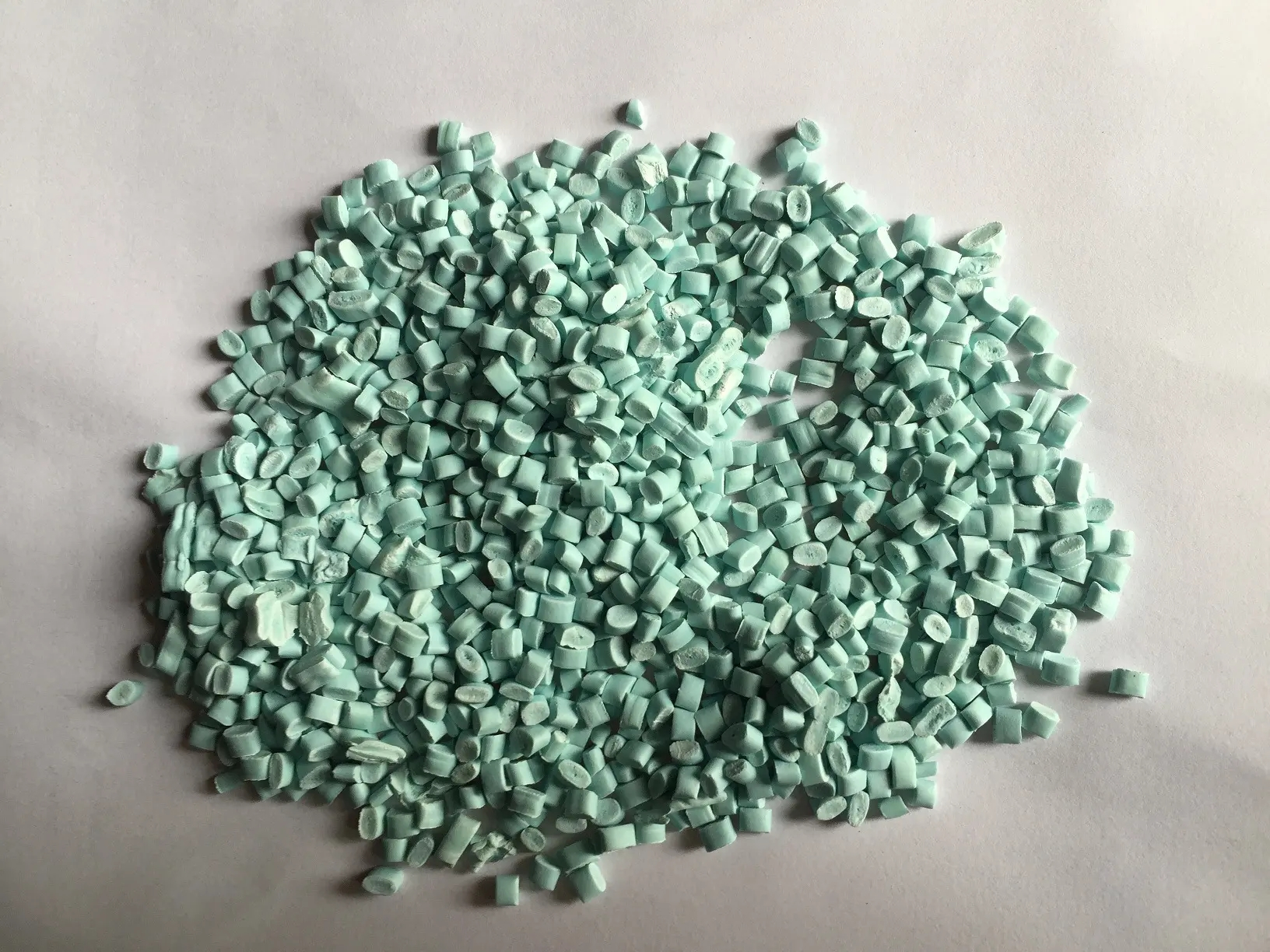

Production product display
