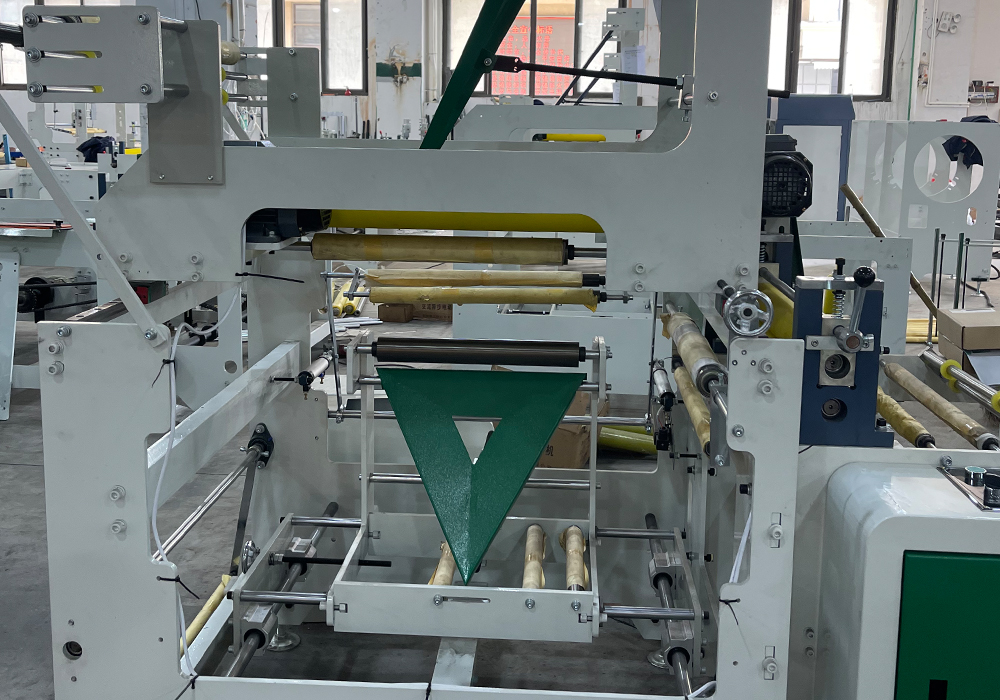

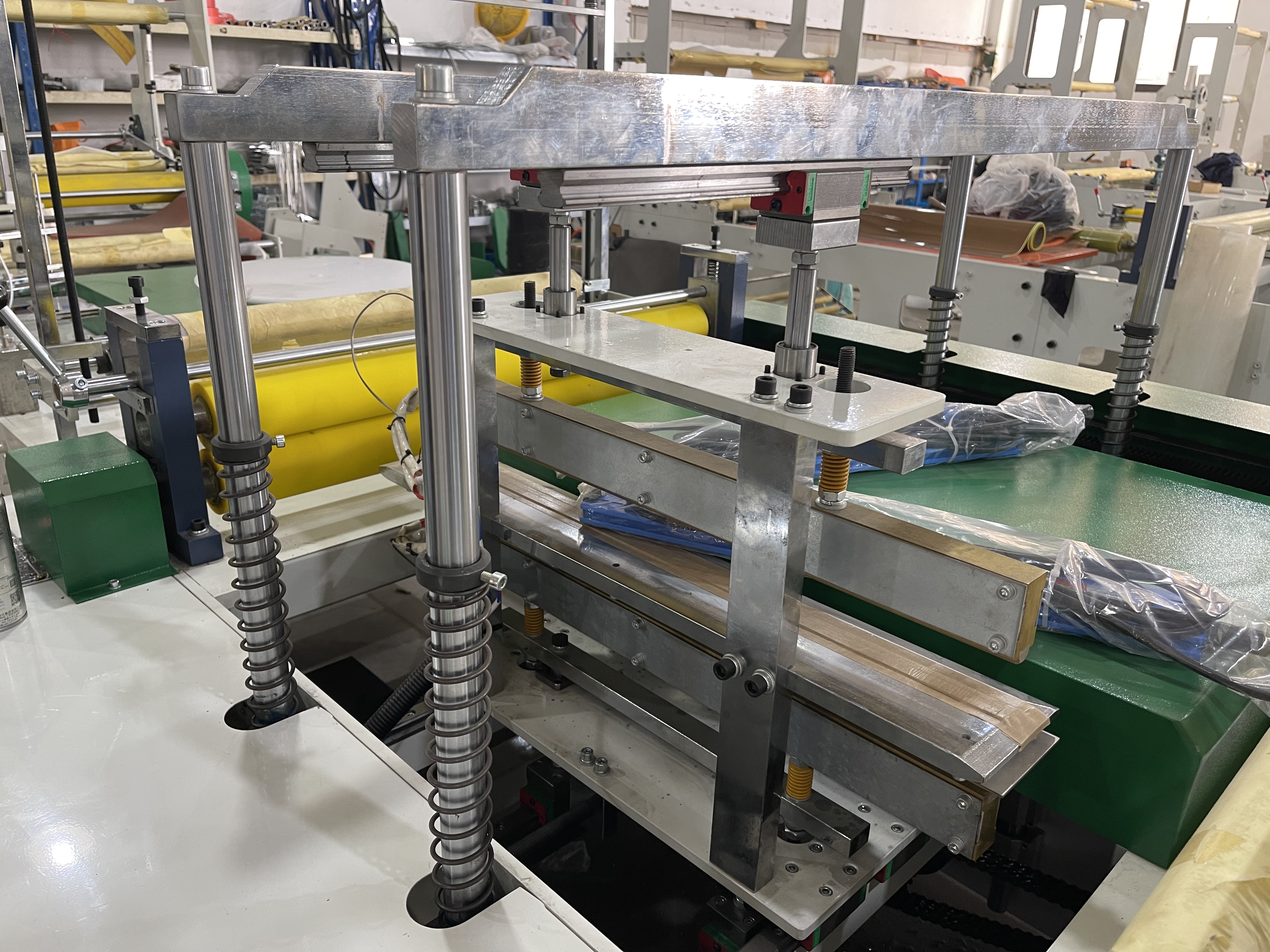

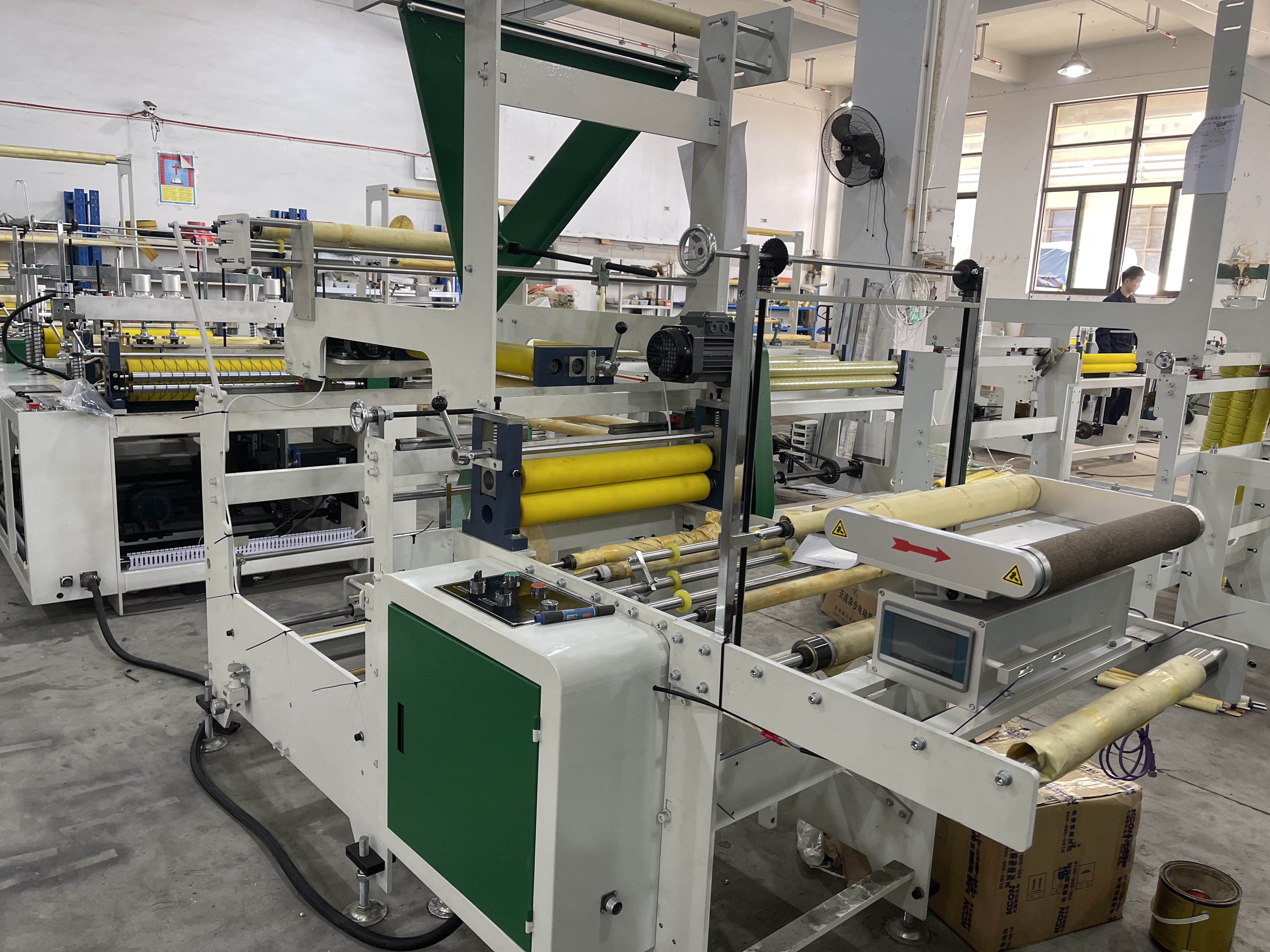

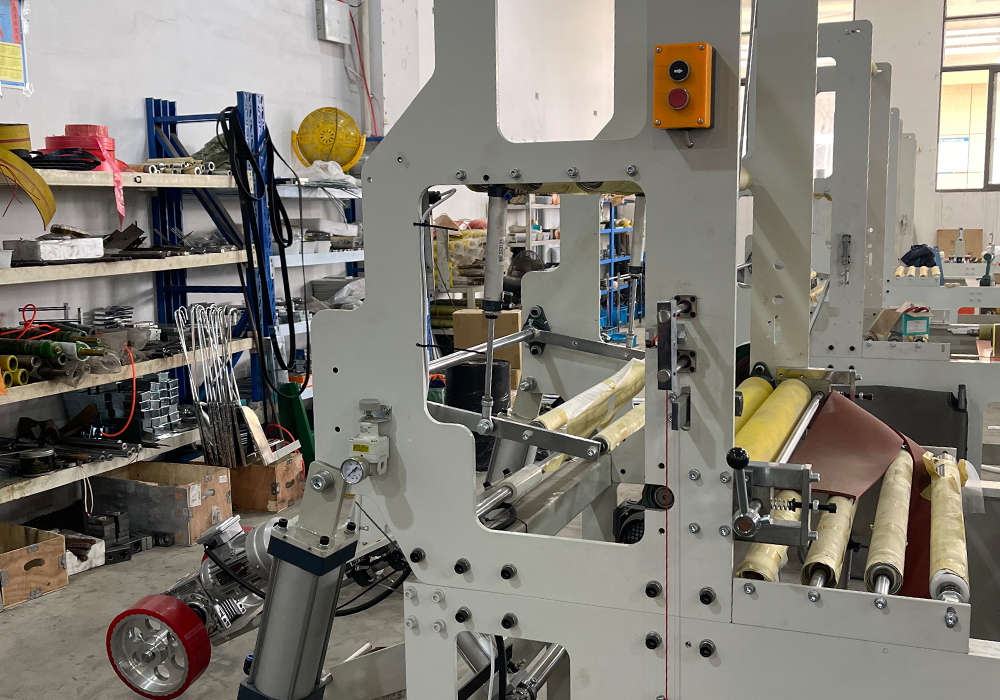

Automatic Draw String/Tape Perforated Garbage Bag Machine
Description:
Suitable material : HDPE ,LDPE
The automatic draw string garbage bag making machine is used to produce draw string/draw tape bags which widely using for household .
Features:
1. China Touch screen computer control

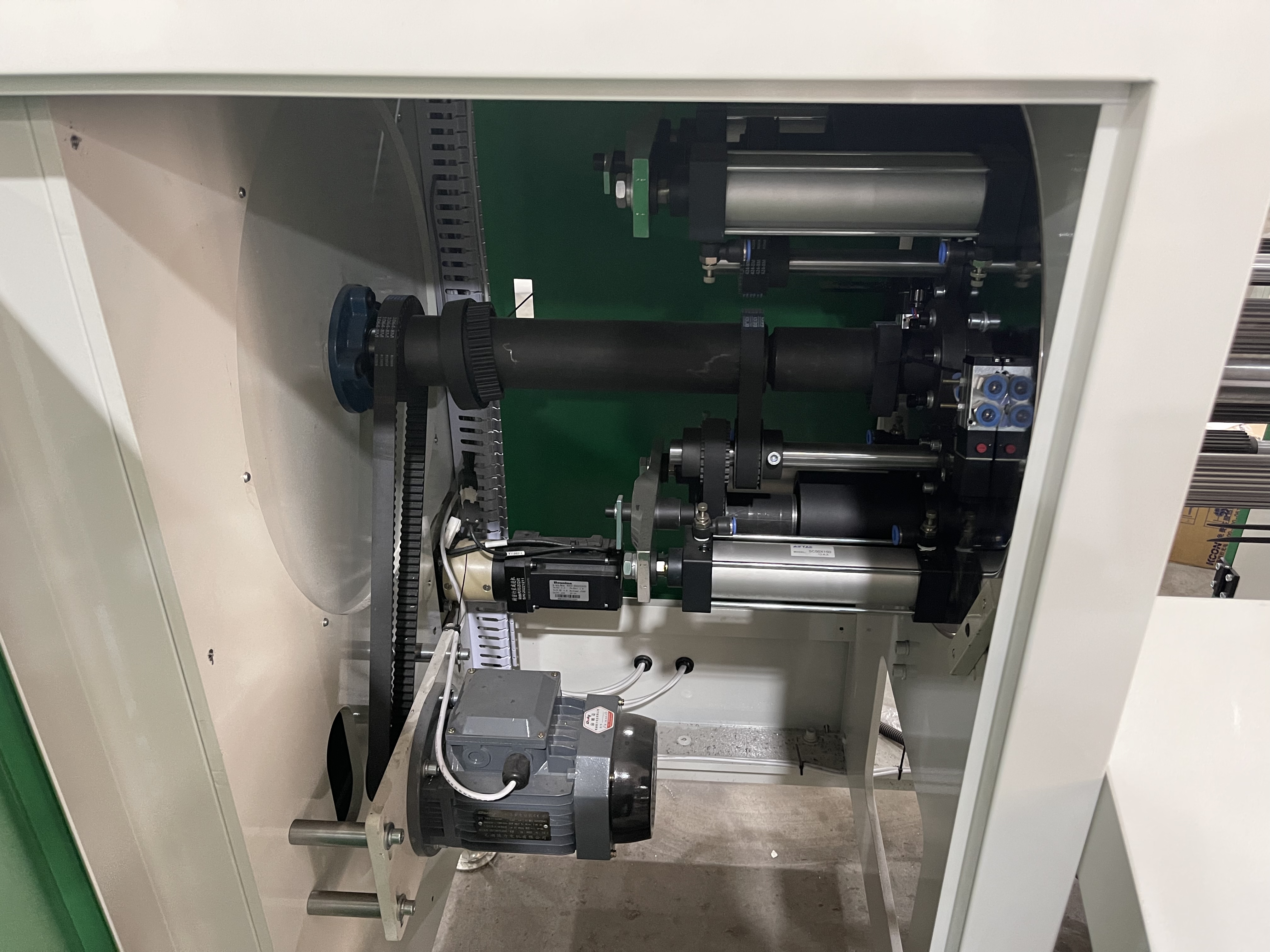

2. Servo motor control to make it easy to adjust the bag length and machine speed,ensure the machine much stable operation.
3. Equipped with EPC to ensure neat winding;

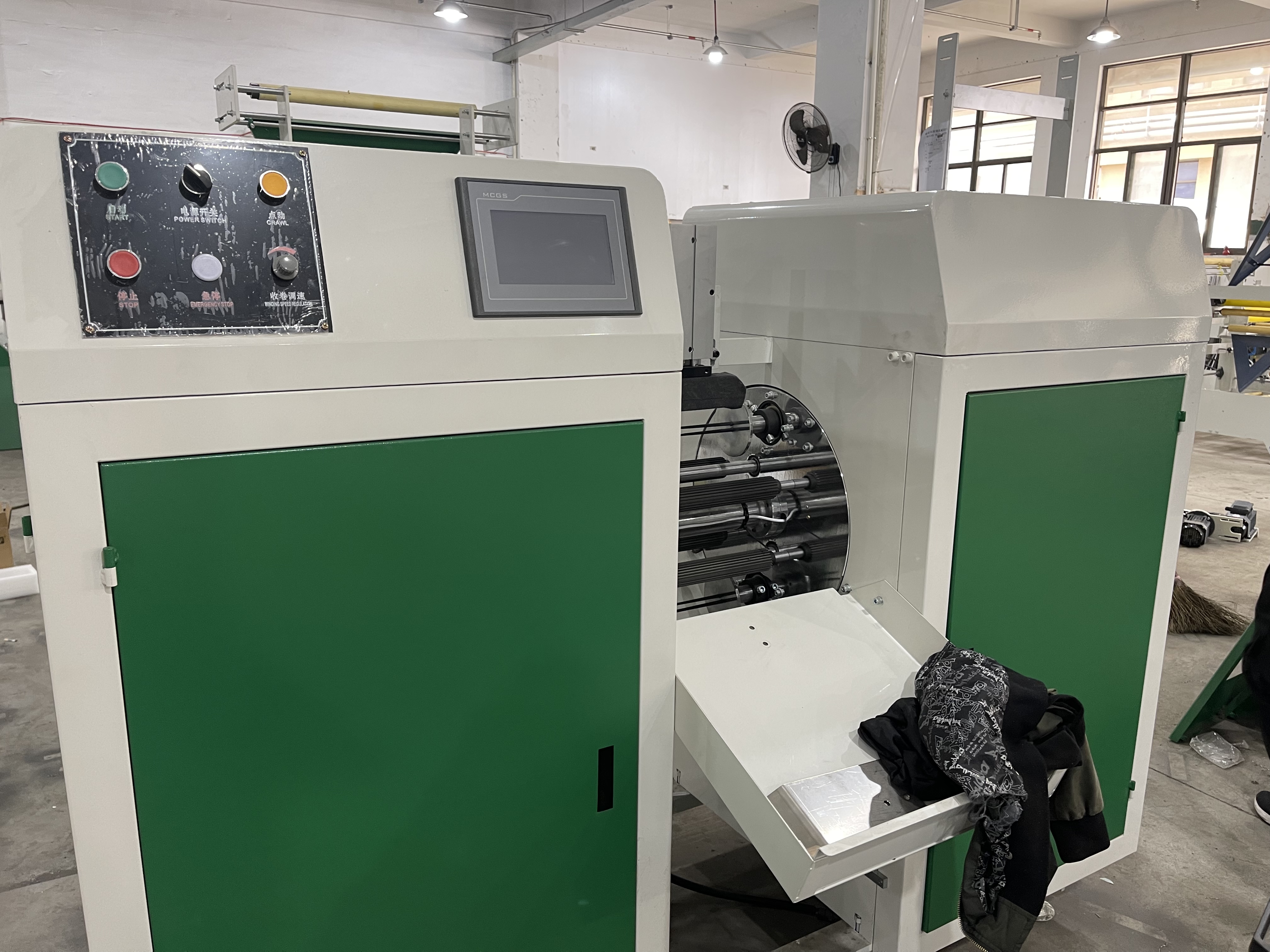

4. Automatic roll changing to save labor cost and time;
|
Model |
KPDS-800 |
KPDS-1000 |
KPDS-1200 |
|
Width of bag making |
400-700mm |
500-900mm |
600-1100mm |
|
Length of bag making |
300-650mm |
500-800mm |
600-1100mm |
|
speed of bag making |
40-120bags/min |
40-100bags/min |
30-85bags/min |
|
Thickness of bag making |
HDPE:0.007-0.025mm, LDPE:0.015-0.05mm |
||
|
Final products |

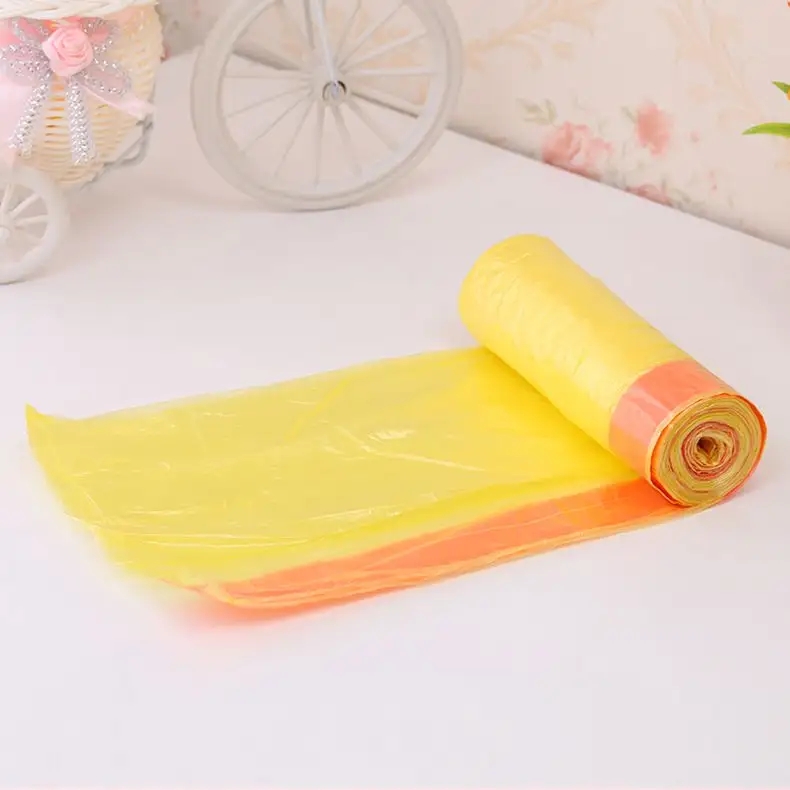

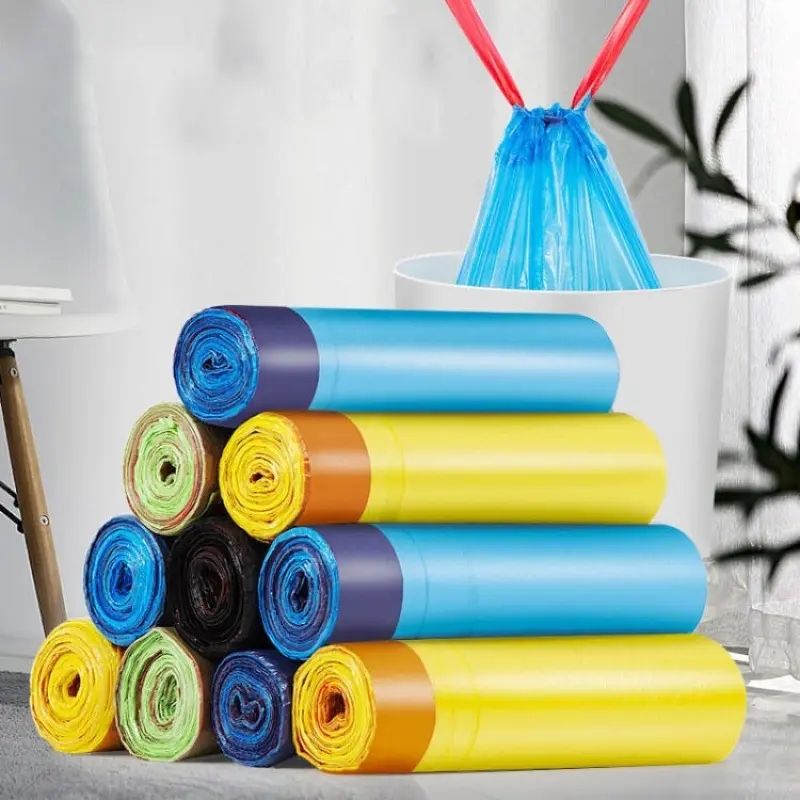

Draw tape bag on roll, draw string bag on roll |
||
|
Total power |
15kw |
15kw |
18kw |
|
Weight |
3200kgs |
3400kgs |
3800kgs |
|
Dimension after installation |
7000*2000*2200mm |
7000*2000*2200mm |
7000*2000*26mm00 |
|
Voltage of machine |
380V,50Hz,3-ph |
||
.jpg) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
