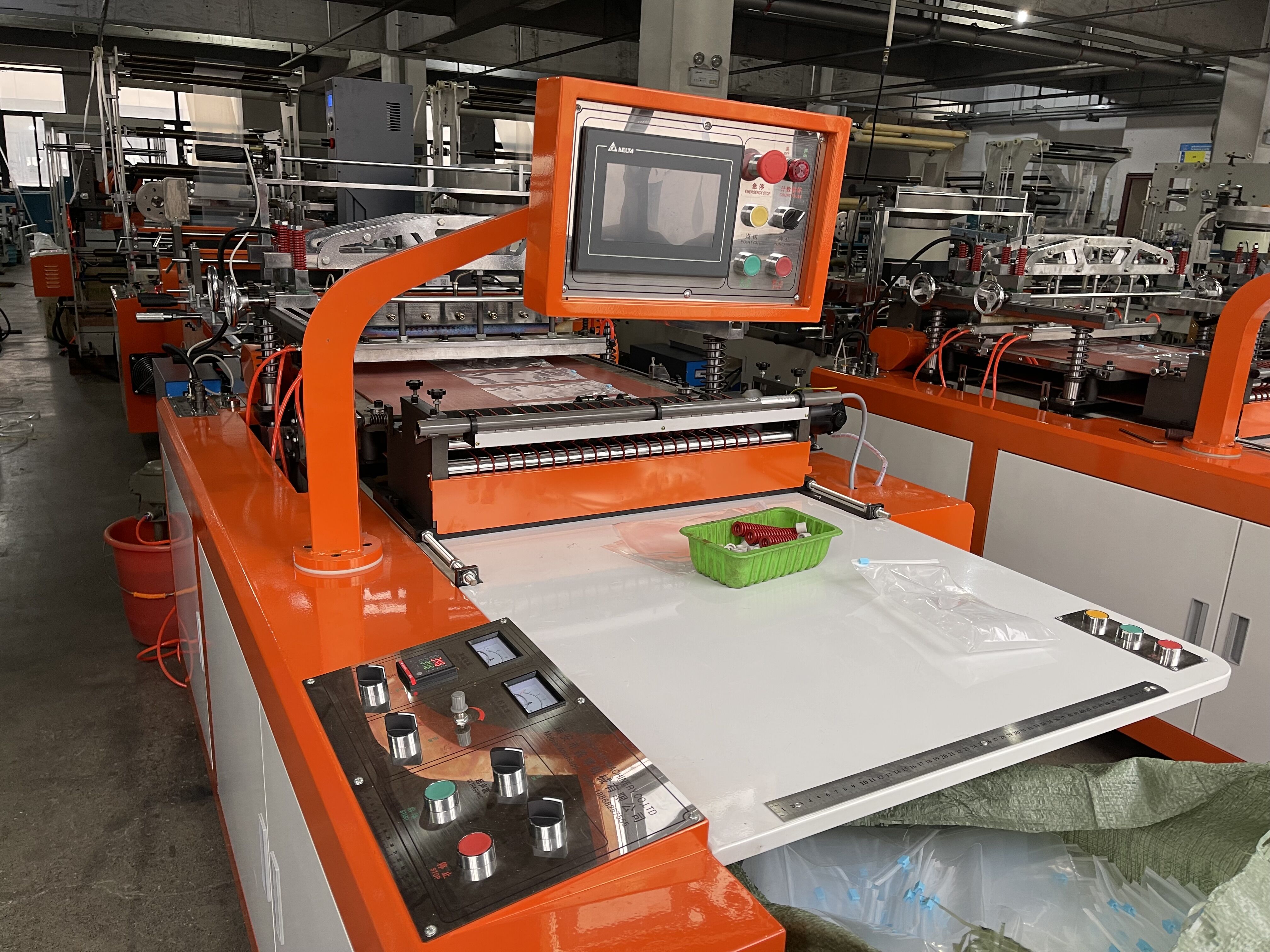

Automatic Slider Zipper Lock Sealing and Cutting Bag Making Machine
Descriptions:
Suitable material: LDPE

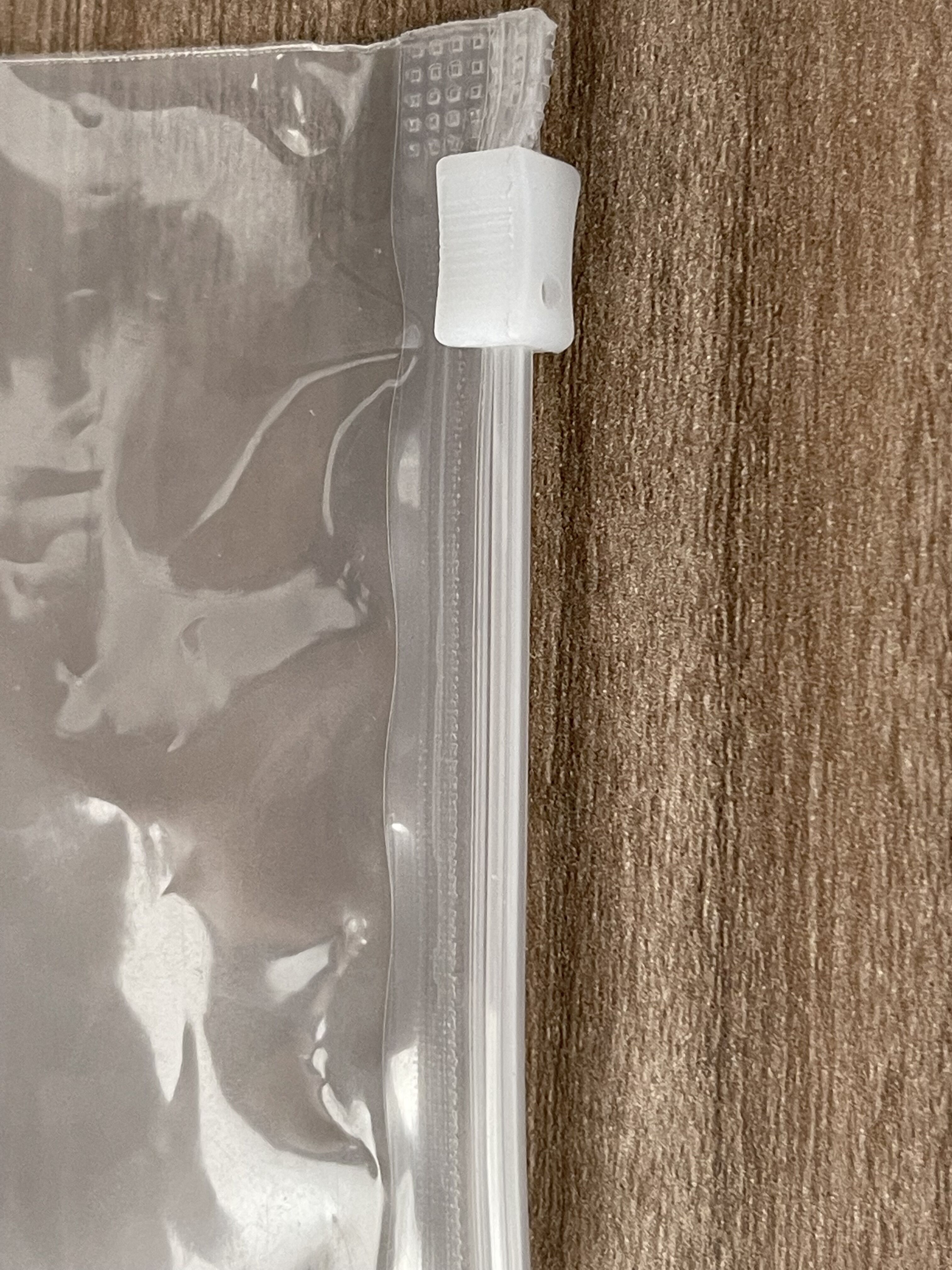

The zipper lock bag making machine is used to produce zipper lock bag ,waterproof bag ,waterproof self bag ,self sealing bag ,Zipper slider bag .
Feature:

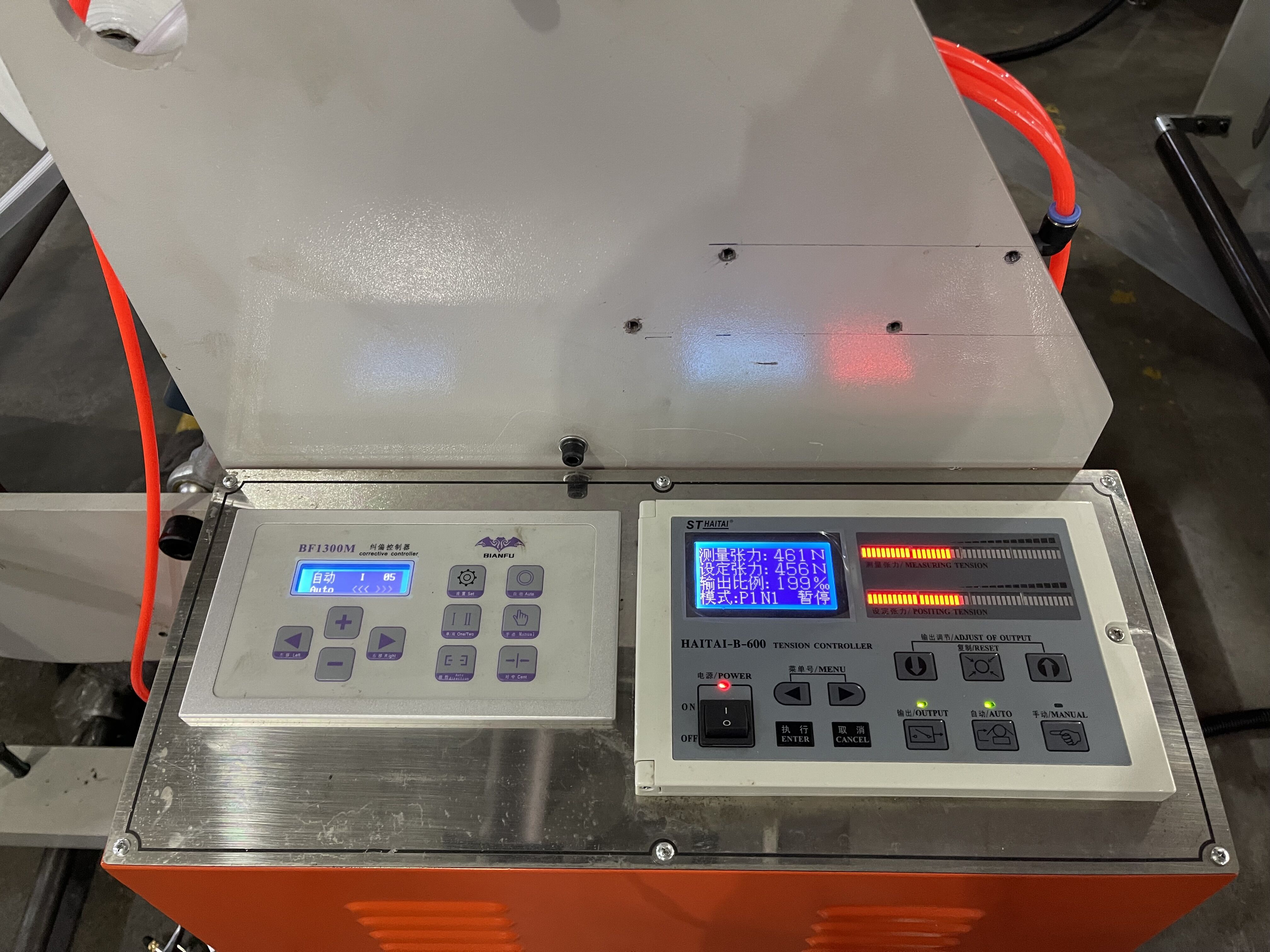

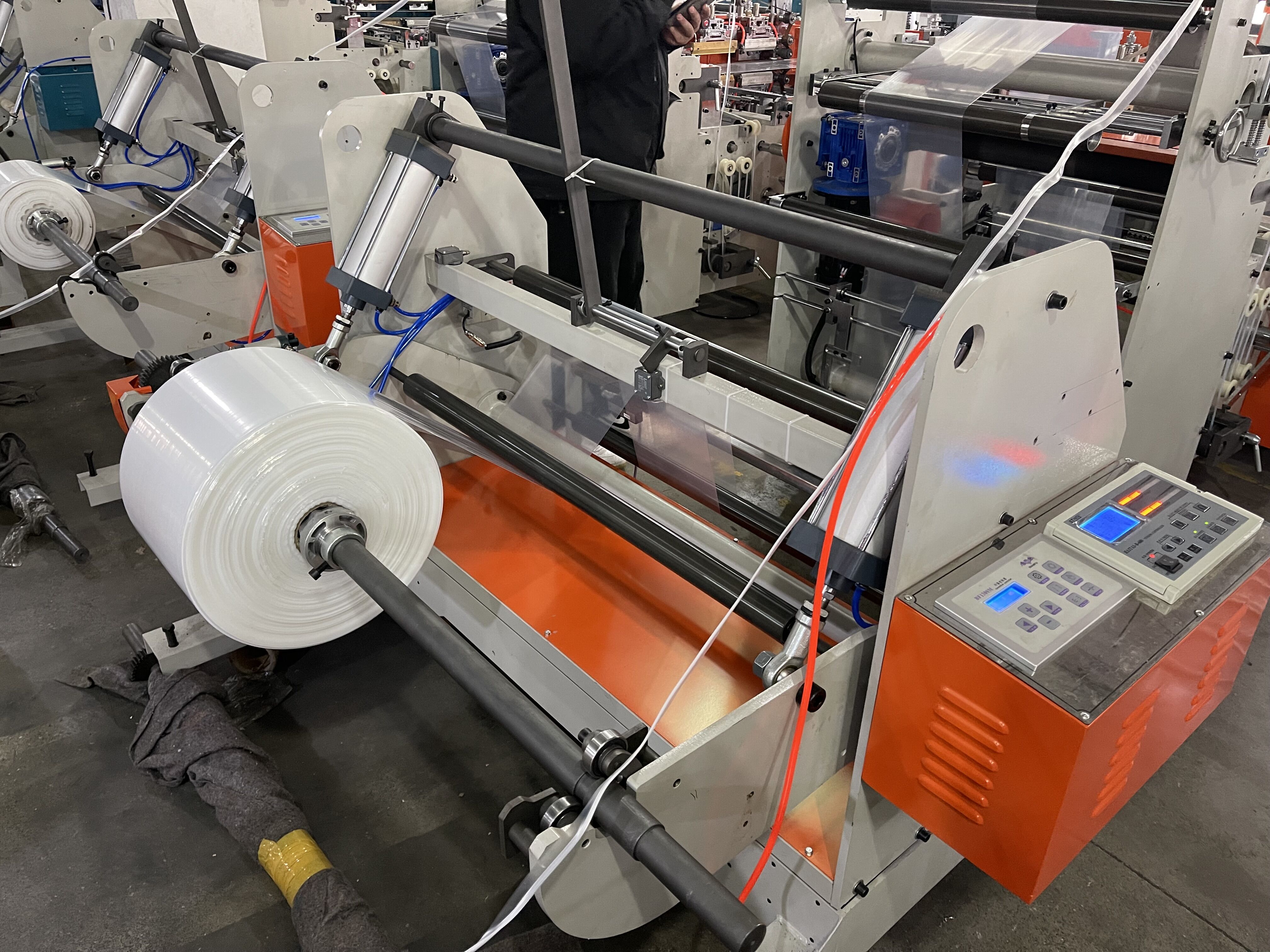

1. Equipped with EPC and auto tension for unwinding
2. Horizontal or Vertical type

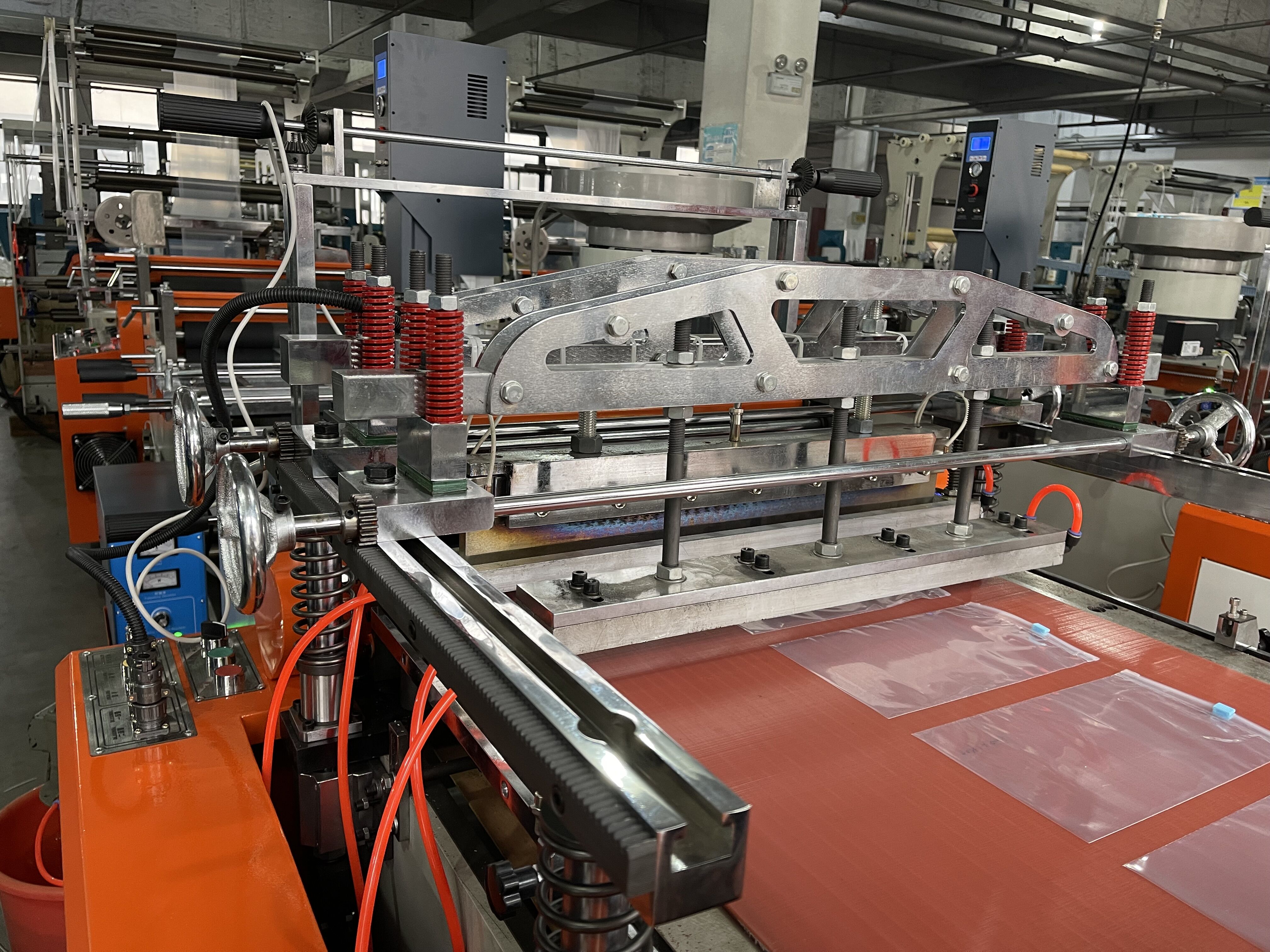

3. Hot cutting knife

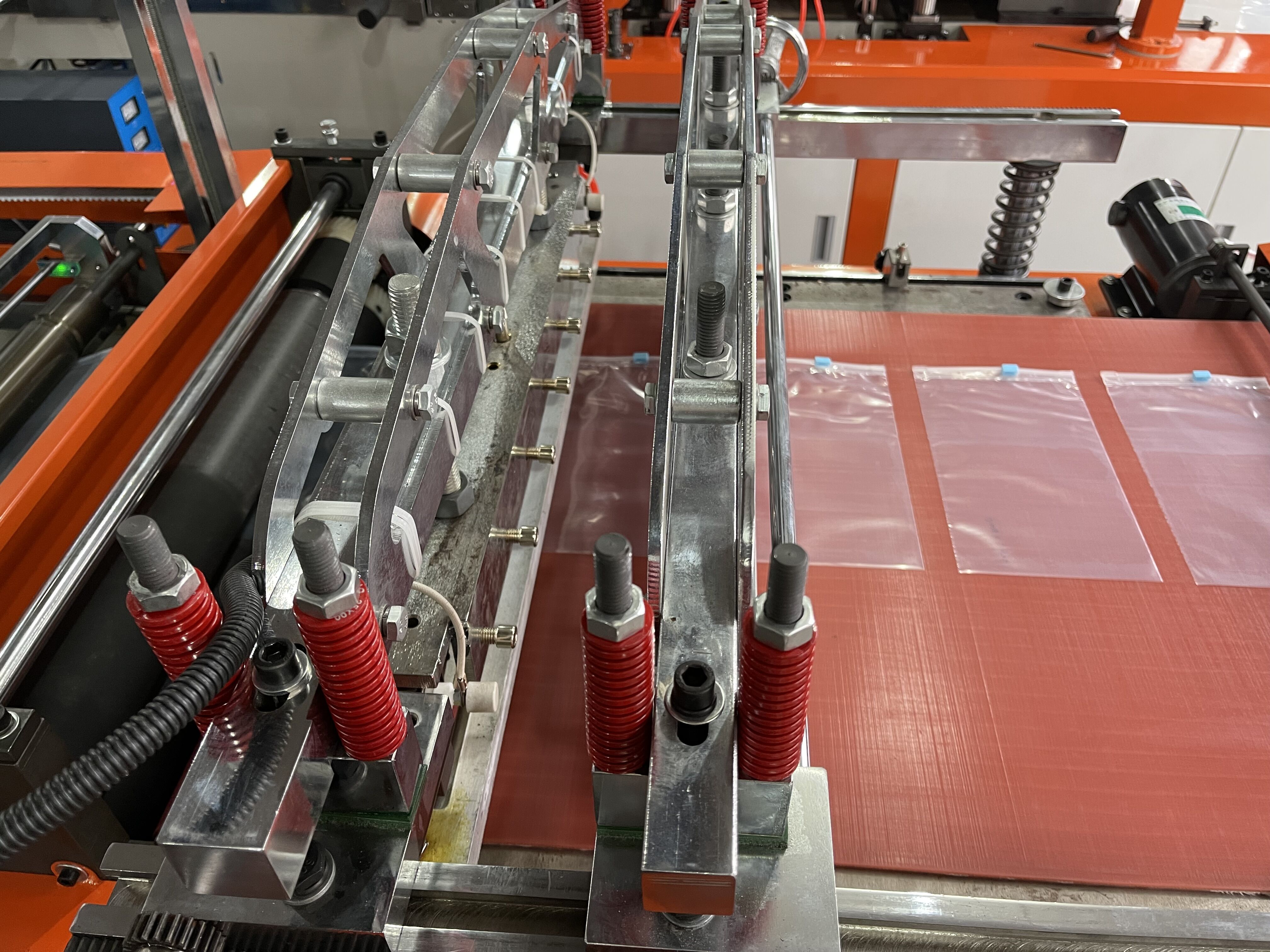

4. Silicone board or belt conveyor
Optional :

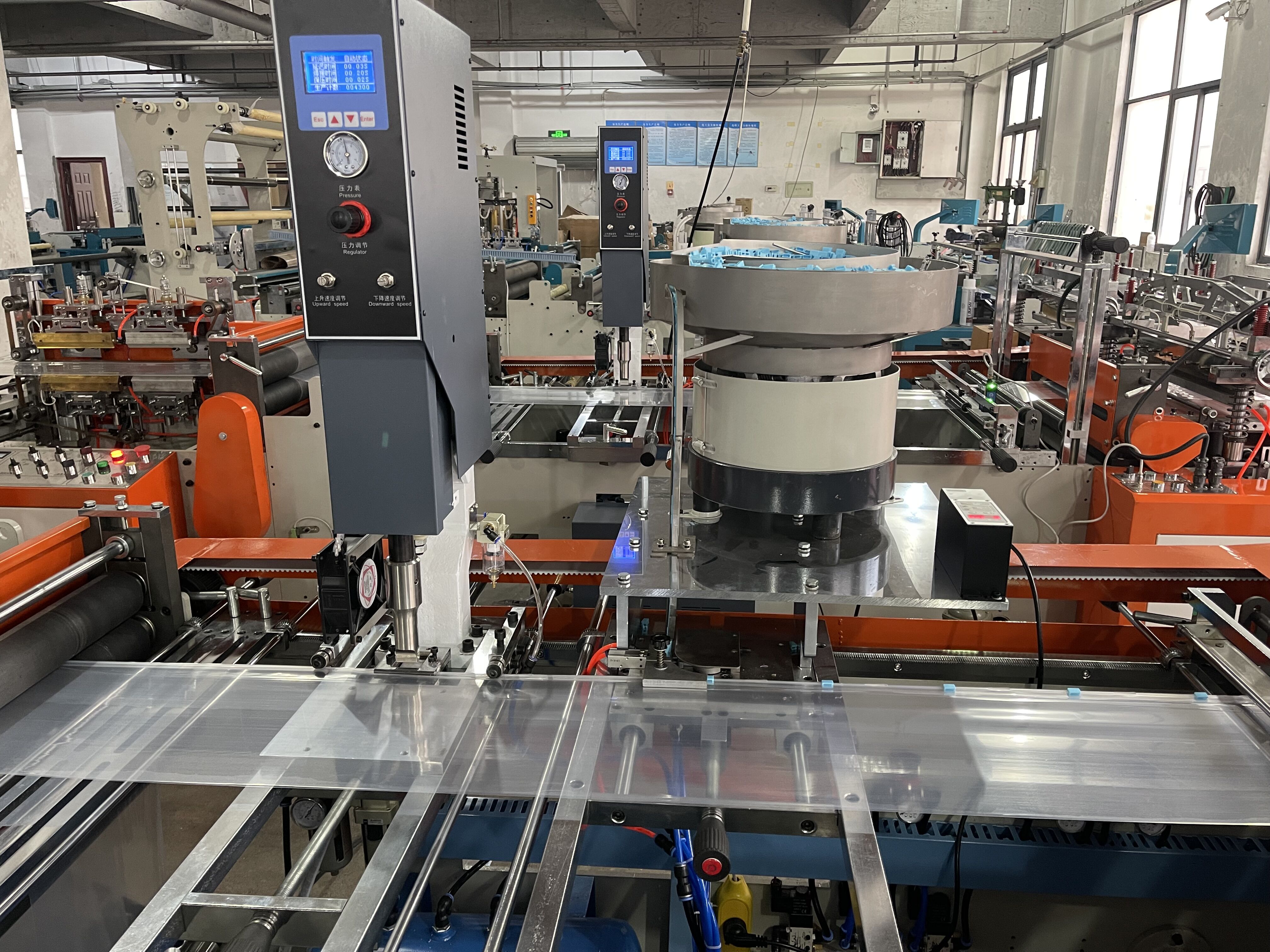

Zipper Slider
|
Model |
KPZ-600 |
KPZ-800 |
|
Raw material |
LDPP-PE-PP-HDPE |
LDPP-PE-PP-HDPE |
|
Speed |
40-120cycle\min |
40-80cycle\min |
|
Bag width |
100-450mm |
100-650mm |
|
Bag length |
100-450mm |
100-650mm |
|
Film thickness |
0.04-0.15mm |
0.04-0.15mm |
|
Servo motor |
1.5kw |
2kw |
|
Main motor |
1.5kw |
1.5kw |
|
Heating power |
3kw |
3.8kw |
|
Discharge motor |
0.75kw |
0.75kw |
|
Ultrasonic |
2kw |
2kw |
|
Conveying electrical |
0.6kw |
0.6kw |
|
Cooling |
0.55kw,0.25kw |
0.55kw,0.25kw |
|
Total power |
15kw |
18kw |
|
Dimension(L *W*H) |
8000*1550*1800mm |
8500*1550*1800mm |
|
Voltage |
50hz,380v |
50hz,380v |
 |
 |
 |
 |
 |
 |
 |
 |
