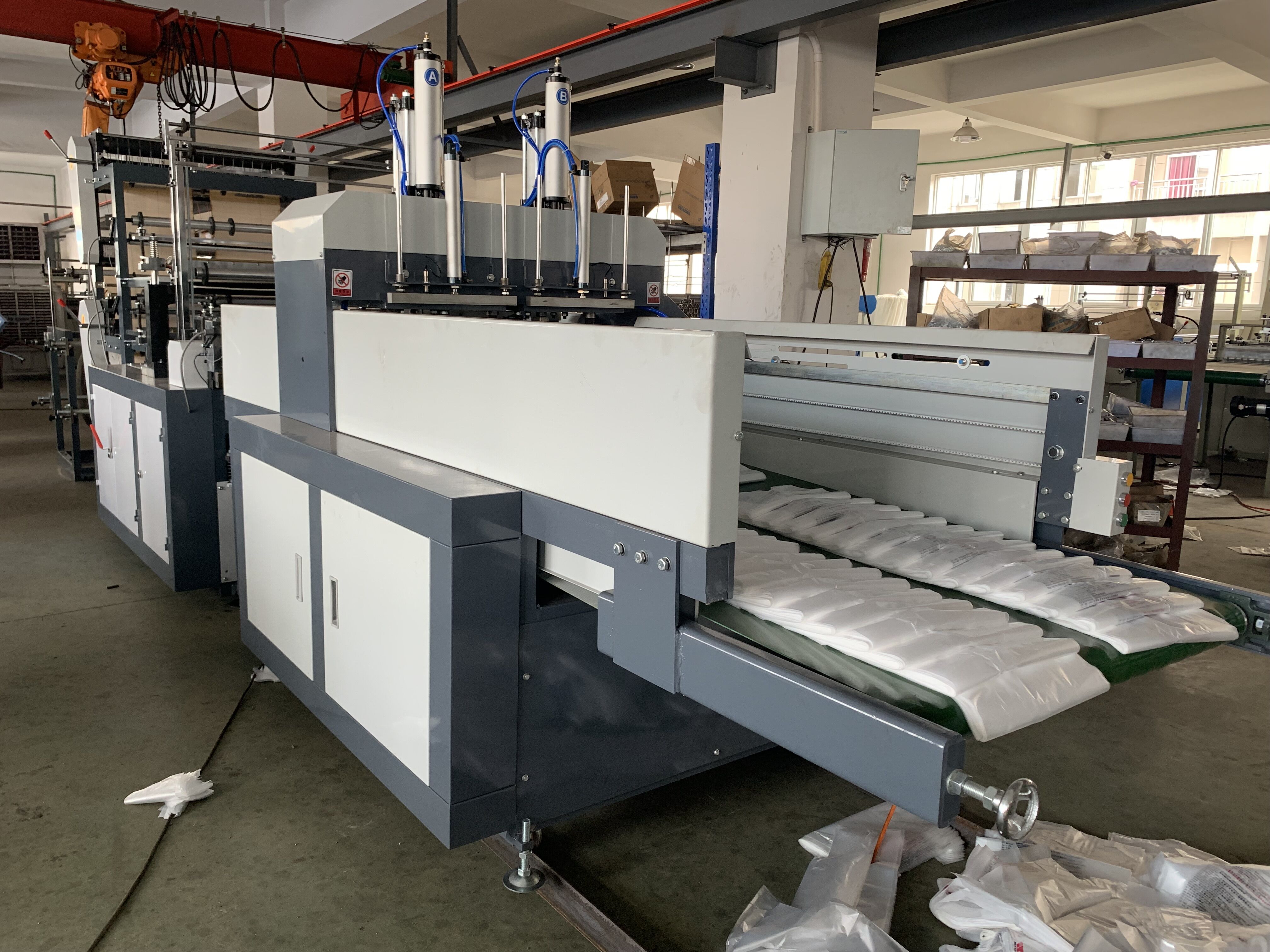

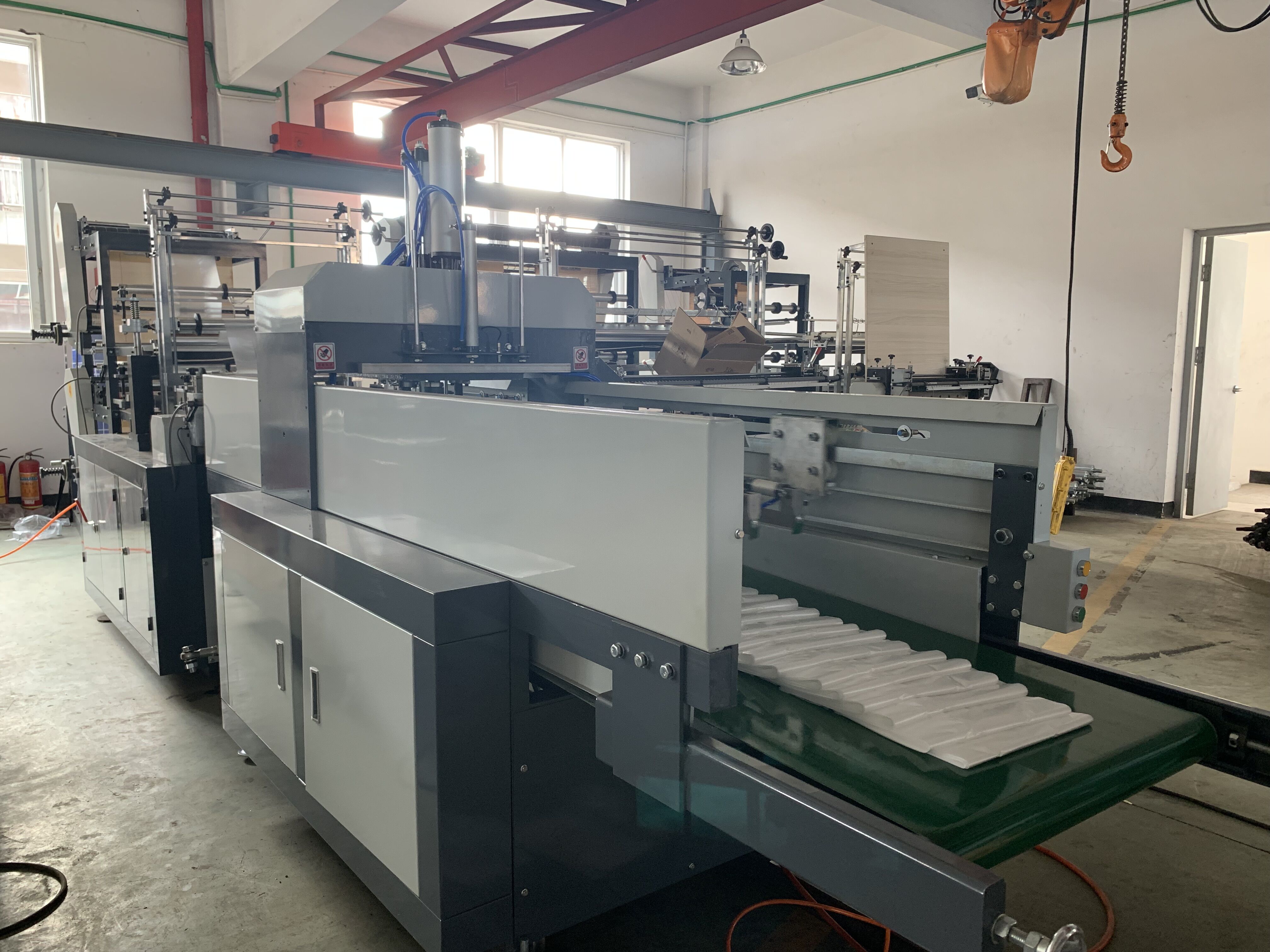

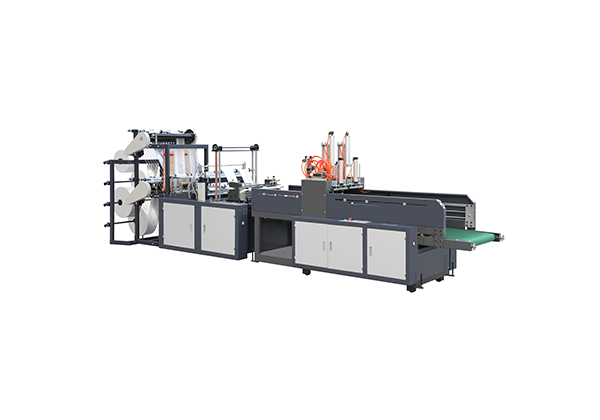

Automatic Plastic T Shirt Bag Making Machine (Cold cutting )
Descriptions:
Suitable material: HDPE, LDPE
The automatic t shirt bag making machine is used to produce vest bag , t shirt shopping bag which is widely used in supermarket shop . It is belong to hot sealing cold cutting type , after remove the puncher parts , we also make flat bag .
Feature:

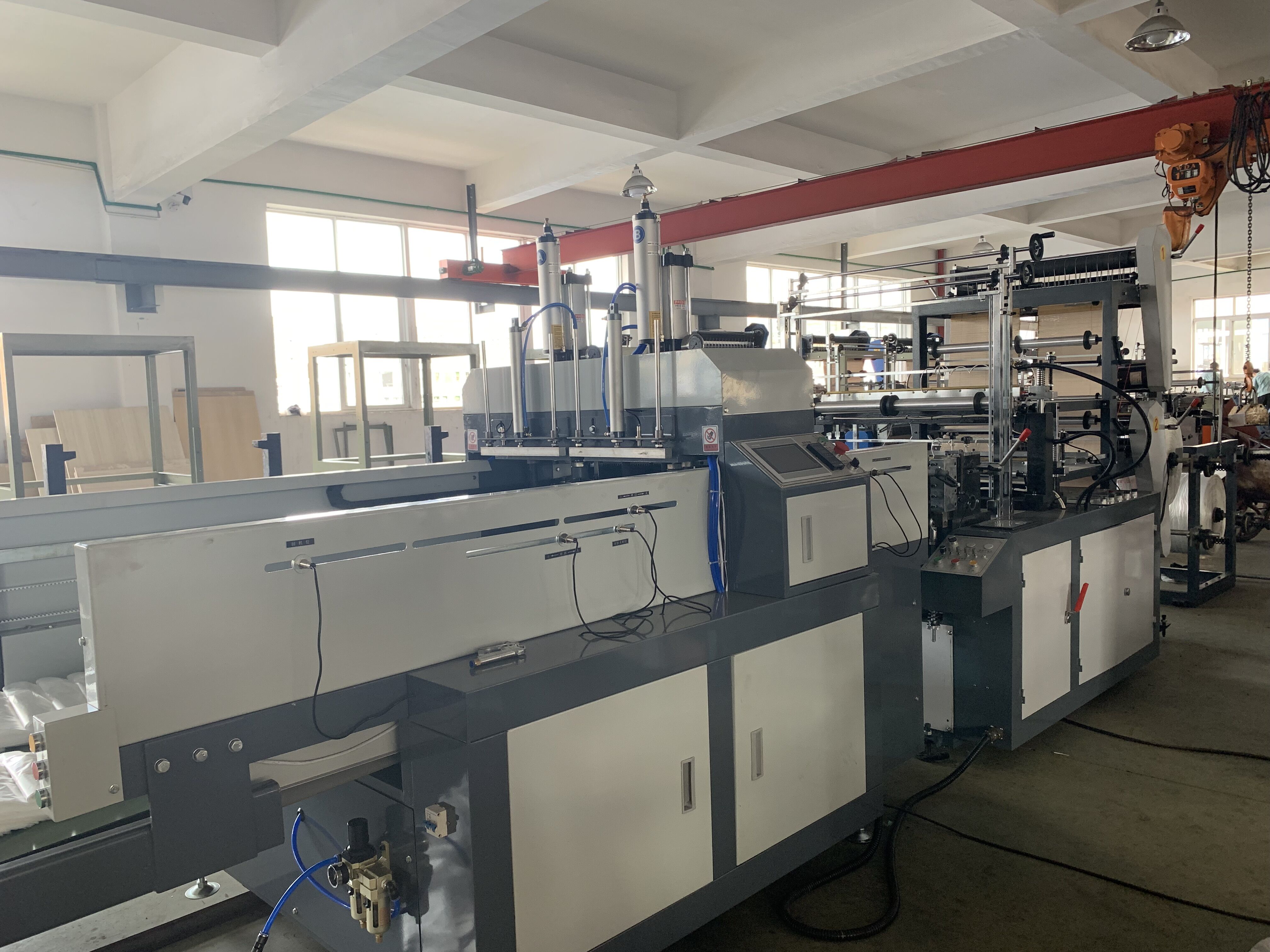

China brand Touch screen computer control
Customized design 2 lines , 4 lines , 6 lines , 8lines
One line with photocell for making printed bag
Intelligent temperature control system
Static electricity elimination system
Optional Equipment:

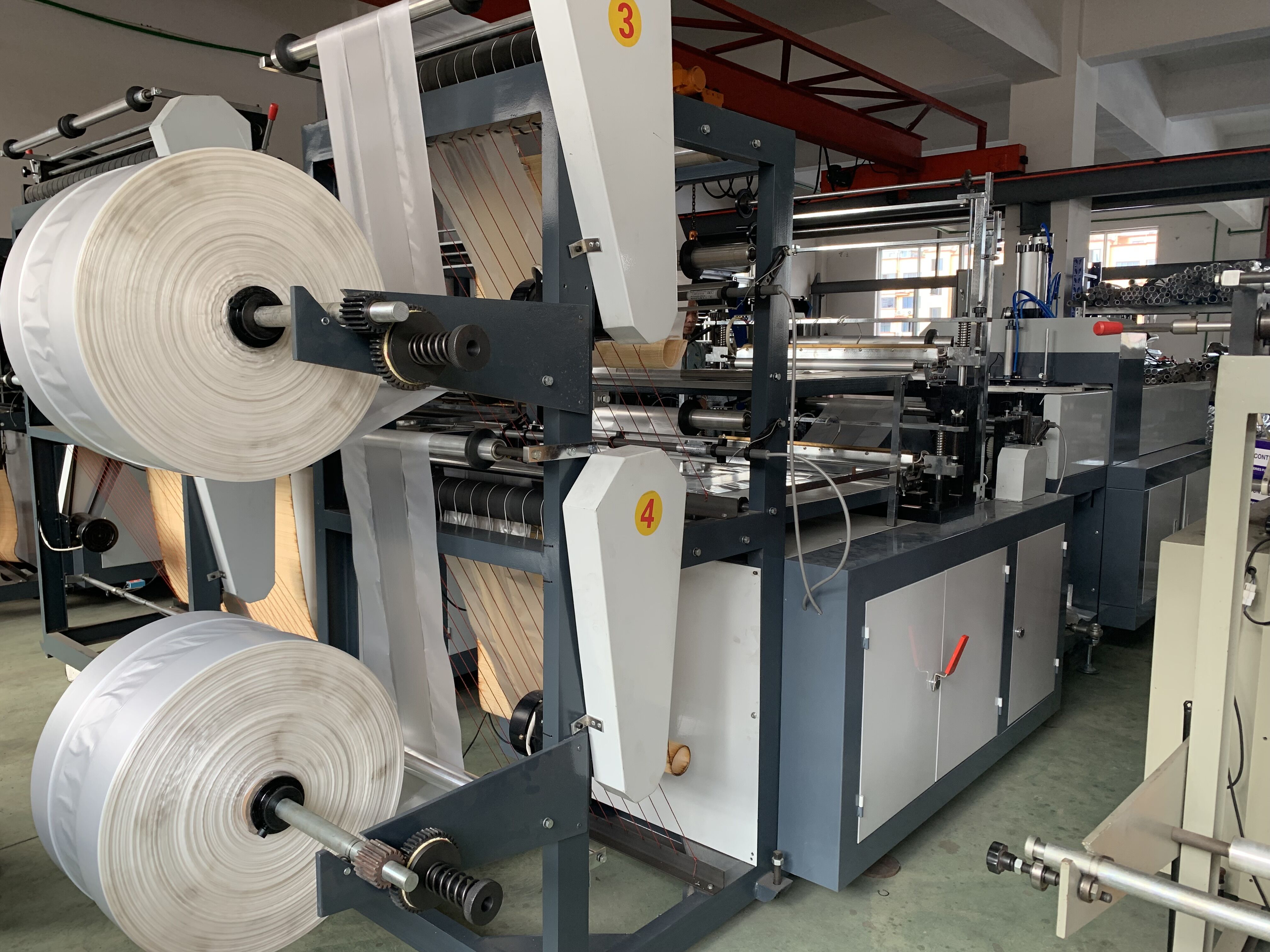

- Individual unwinding
- AC Feeding motor
- Yaskawa/Panasonic servo motor
| KP-SH (4 Lines) | KP-SH (4 Lines) | KP-SH (8 Lines) |
 |
 |
 |
|
Model |
KP-SH-600 |
KP-SH-700 |
KP-SH-1000 |
KP- SH-1200 |
|
Max.Width (mm ) |
550*2 |
650*2 |
280*4 |
350*4 |
|
Max.Length(mm) |
650 |
650 |
650 |
650 |
|
Speed of (pc/min) |
30- 120*2 |
30- 120*2 |
30- 120*4 |
30-120*4 |
|
Feeding motor |
400w |
400w |
400w |
400w |
|
Lines |
2 |
2 |
4 |
4 |
|
Power of main motor(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Weight(kg) |
2000 |
2200 |
3000 |
3500 |
|
Outline dimension |
4800×1150×1550 |
4800×1350×1650 |
6500×1550×1750 |
6500×1750×1850 |
 |
 |
 |
 |
 |
 |
 |
