Garbage Bag Bottom Sealing Cutting Bag Machine
Descriptions:
Suitable material: HDPE, LDPE

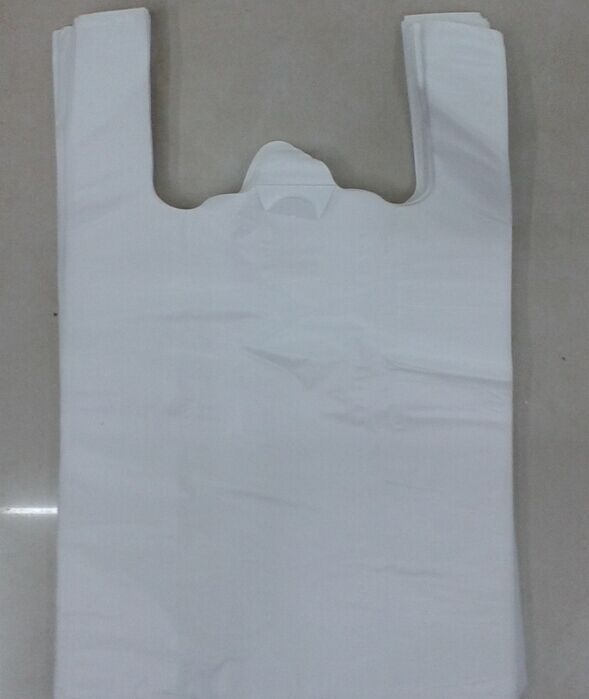

The bottom sealing bag machine we also called hot sealing cold cutting machine,it is used to produce flat bag, shopping bag , heavy on duty bag, thick bag. it is belong to hot sealing cold cutting type. If add a manual or automatic puncher , it can produce t shirt bag/ vest bag ,supermarket shopping bag .
Feature:
China brand Touch screen computer control
Customized design non tension type for heavy on duty bag
With photocell for making printed bag
Intelligent temperature control system
Static electricity elimination system
Optional Equipment:
1. EPC
2. Auto tension
3. Air shaft
4. Yaskawa/Panasonic servo motor
5. Auto feeding
6. Conveyor
|
Model |
GFQ-600 |
GFQ-800 |
GFQ- 1000 |
GFQ- 1200 |
|
Max.Width (mm ) |
550 |
750 |
950 |
1150 |
|
Max.Length (mm) |
950 |
950 |
1200 |
2000 |
|
Speed (pc/min) |
30- 120 |
30- 100 |
30- 100 |
30-80 |
|
Power of main motor(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Weight(kg) |
750 |
800 |
900 |
1000 |
|
Outline dimension |
3200×1150×1550 |
3200×1350×1650 |
3200×1550×1750 |
3400×1750×1850 |
|
Heating power (kw) |
2 |
3 |
4 |
4 |
 |
 |
 |
