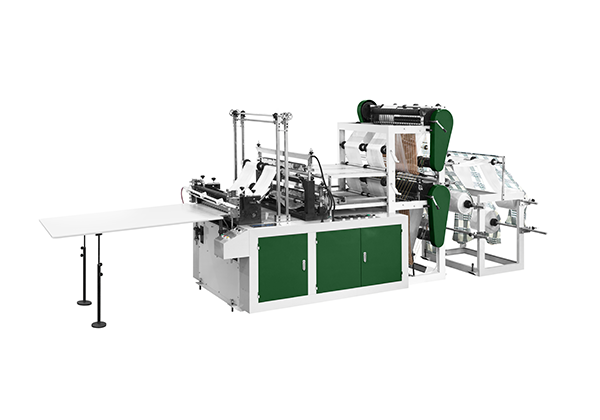

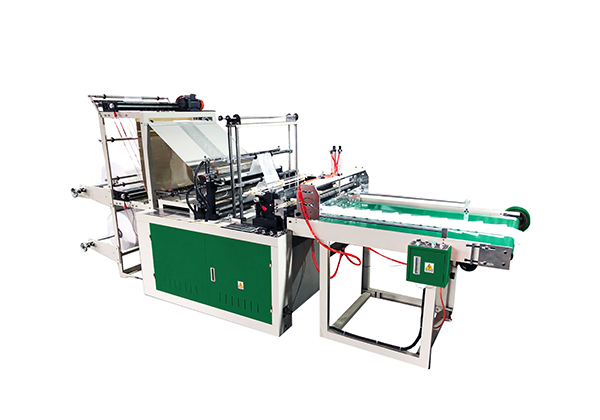

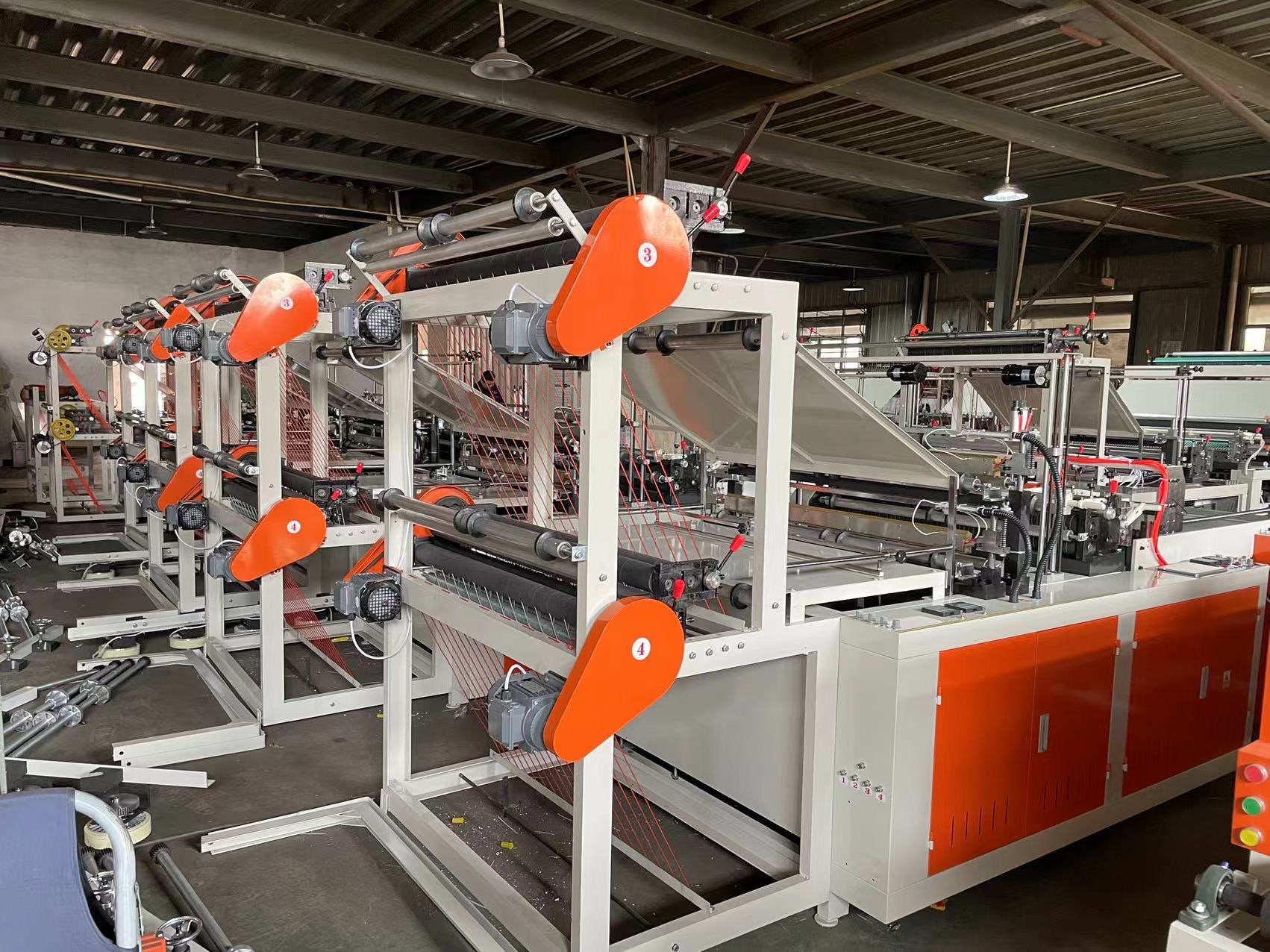

Double Deck Bottom Sealing Cutting Bag Machine
Descriptions:
Suitable material: HDPE, LDPE

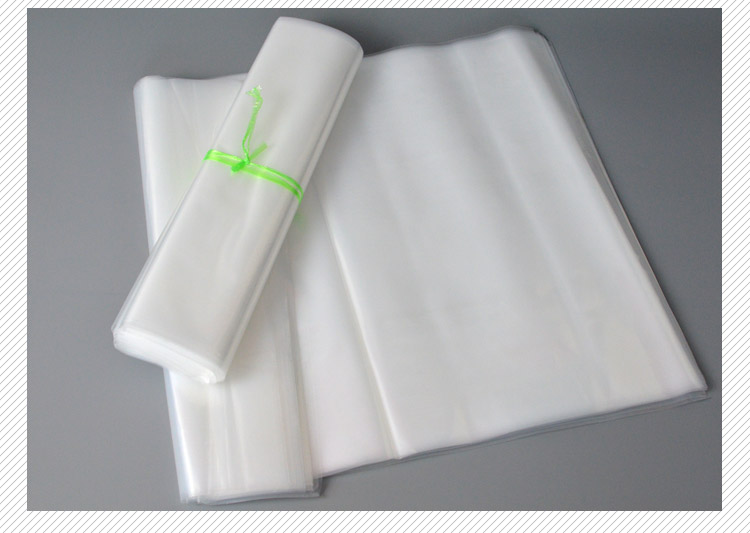

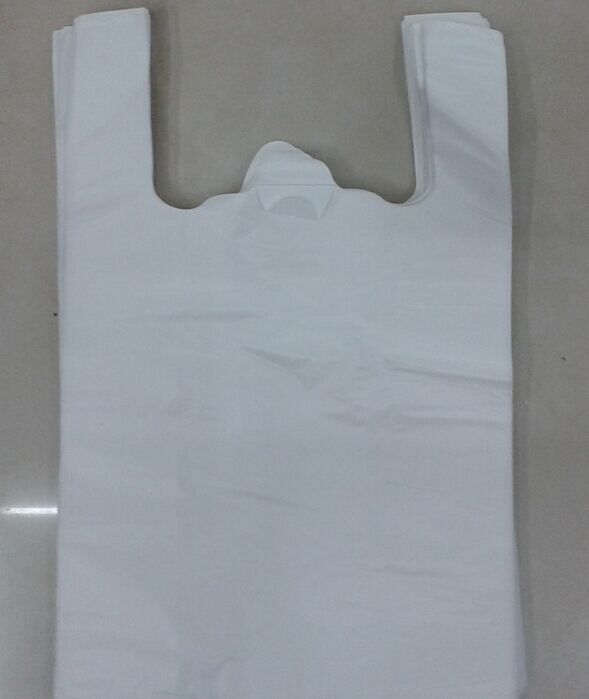

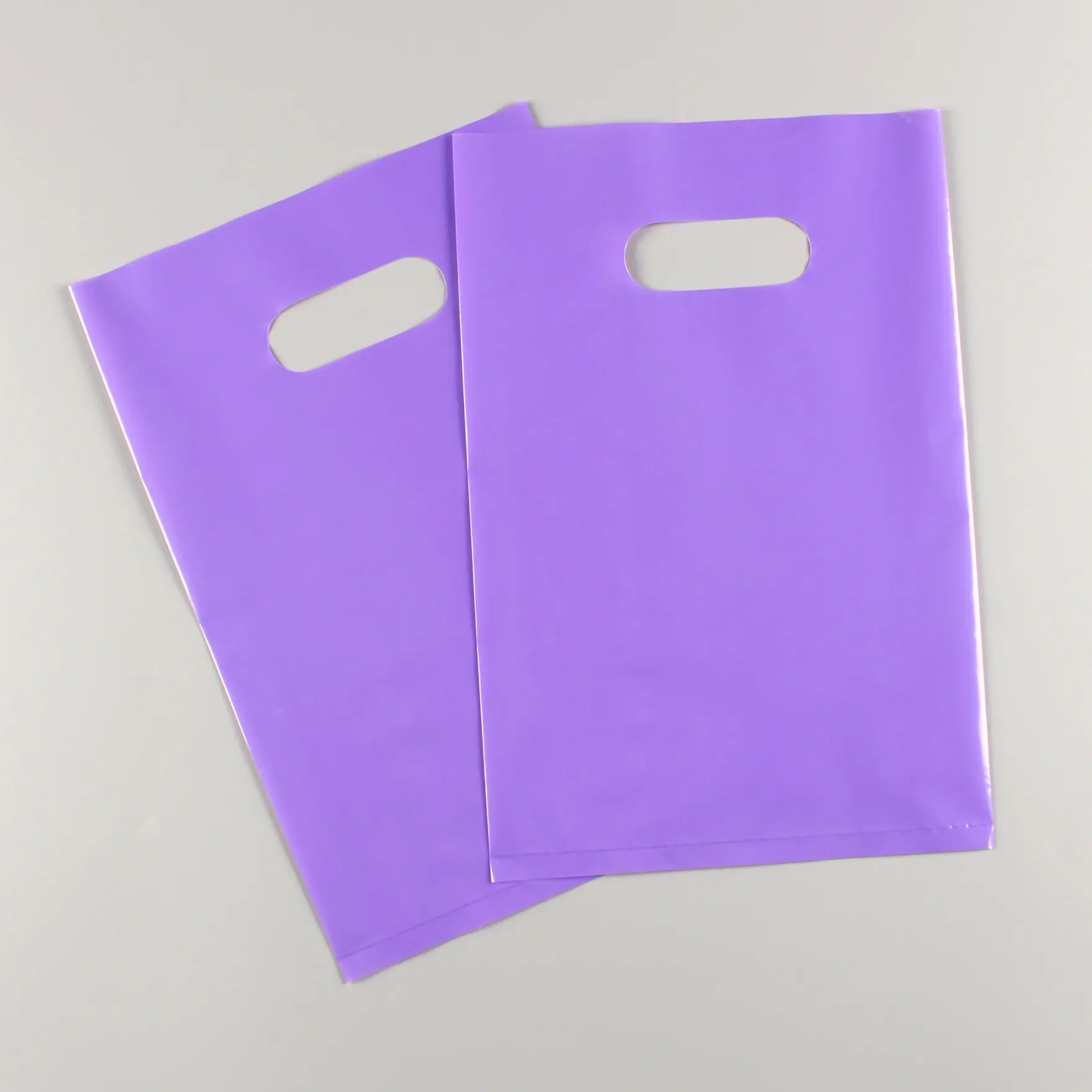

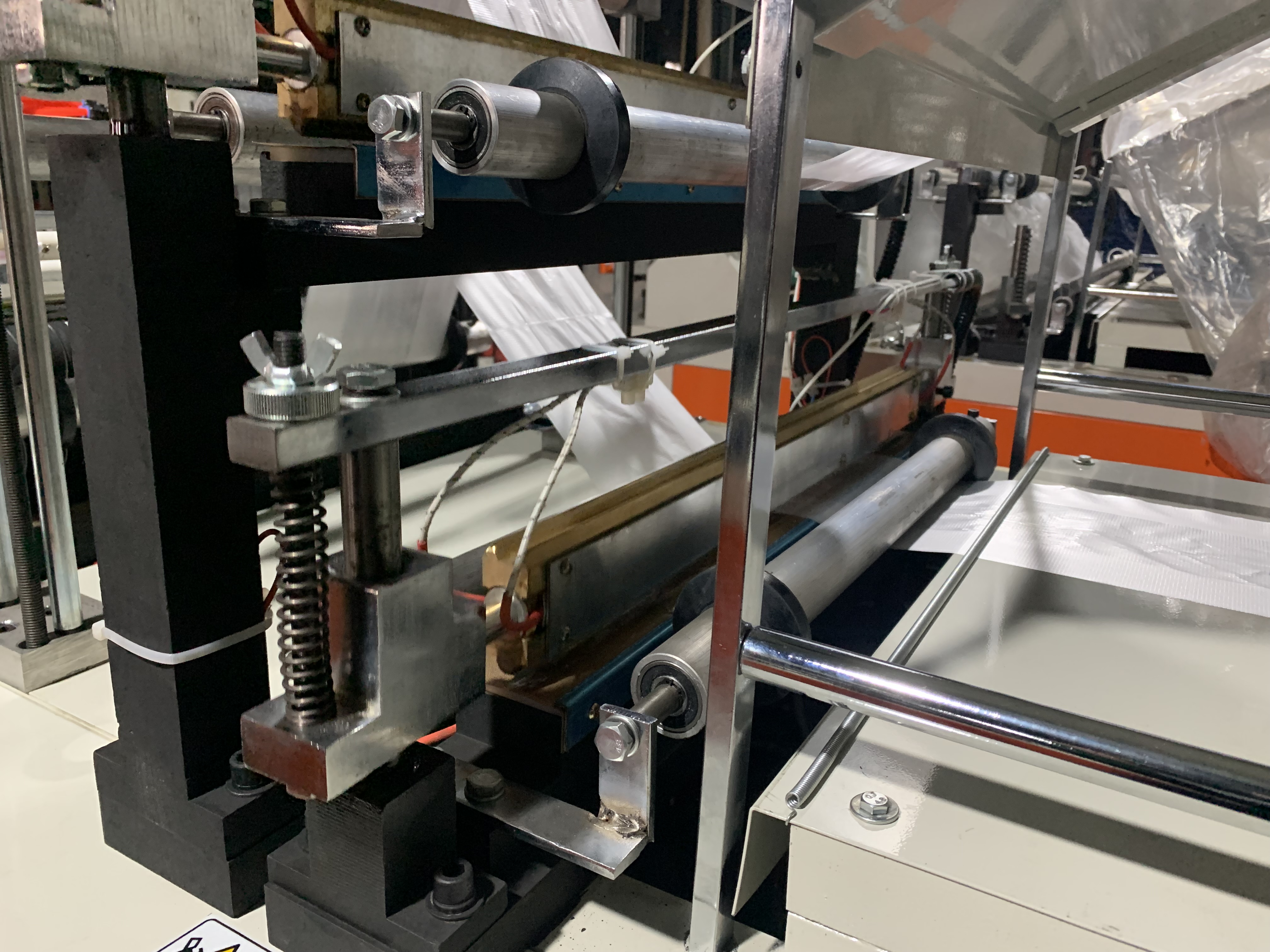

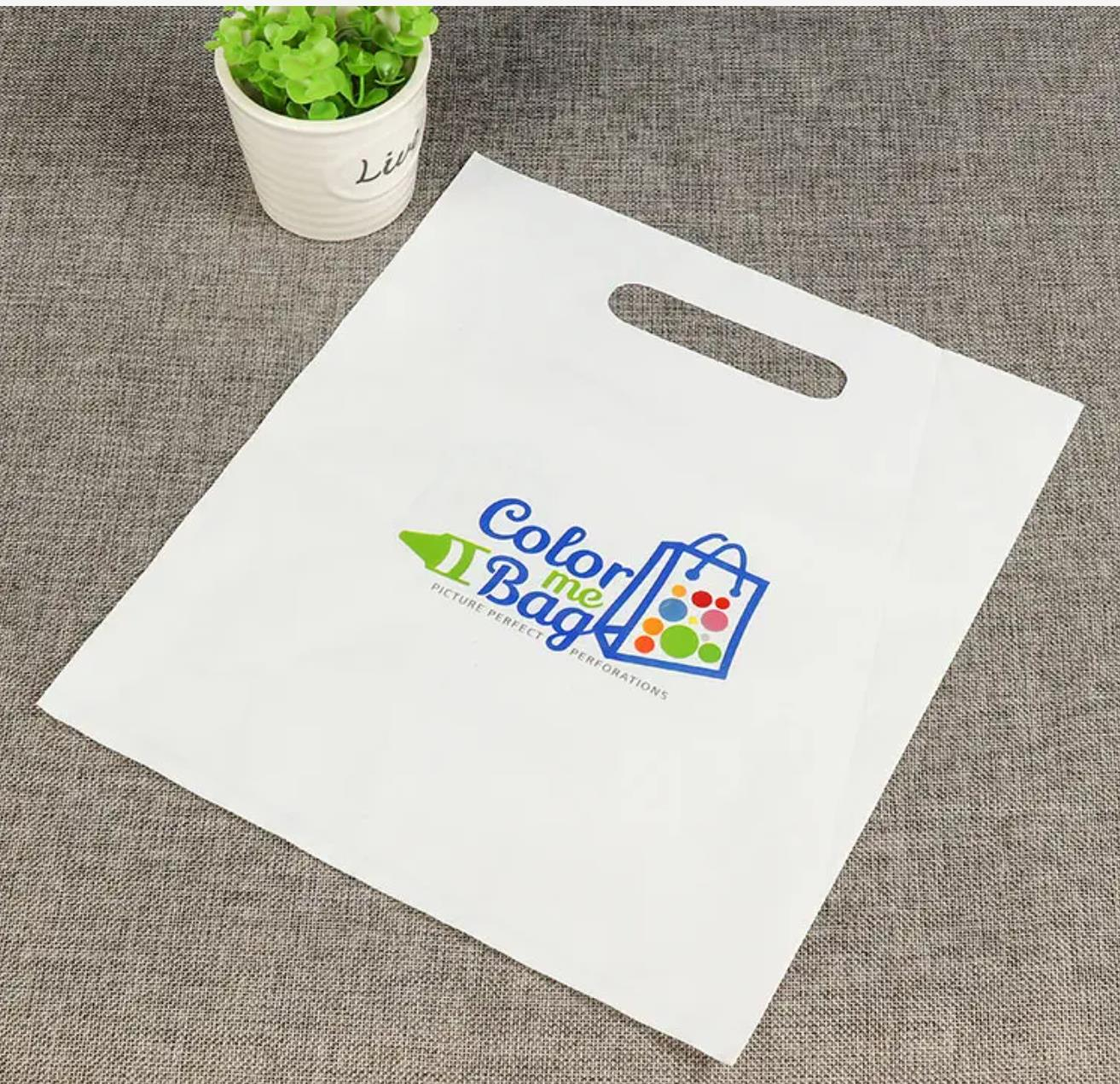

The cutting machine is used to produce flat bag, shopping bag , it is belong to hot sealing cold cutting type. If add a manual or automatic puncher , it can produce t shirt bag/ vest bag ,supermarket shopping bag .
Feature:
China brand Touch screen computer control
Customized design 2 lines , 4 lines , 6 lines , 8lines
One line with photocell for making printed bag

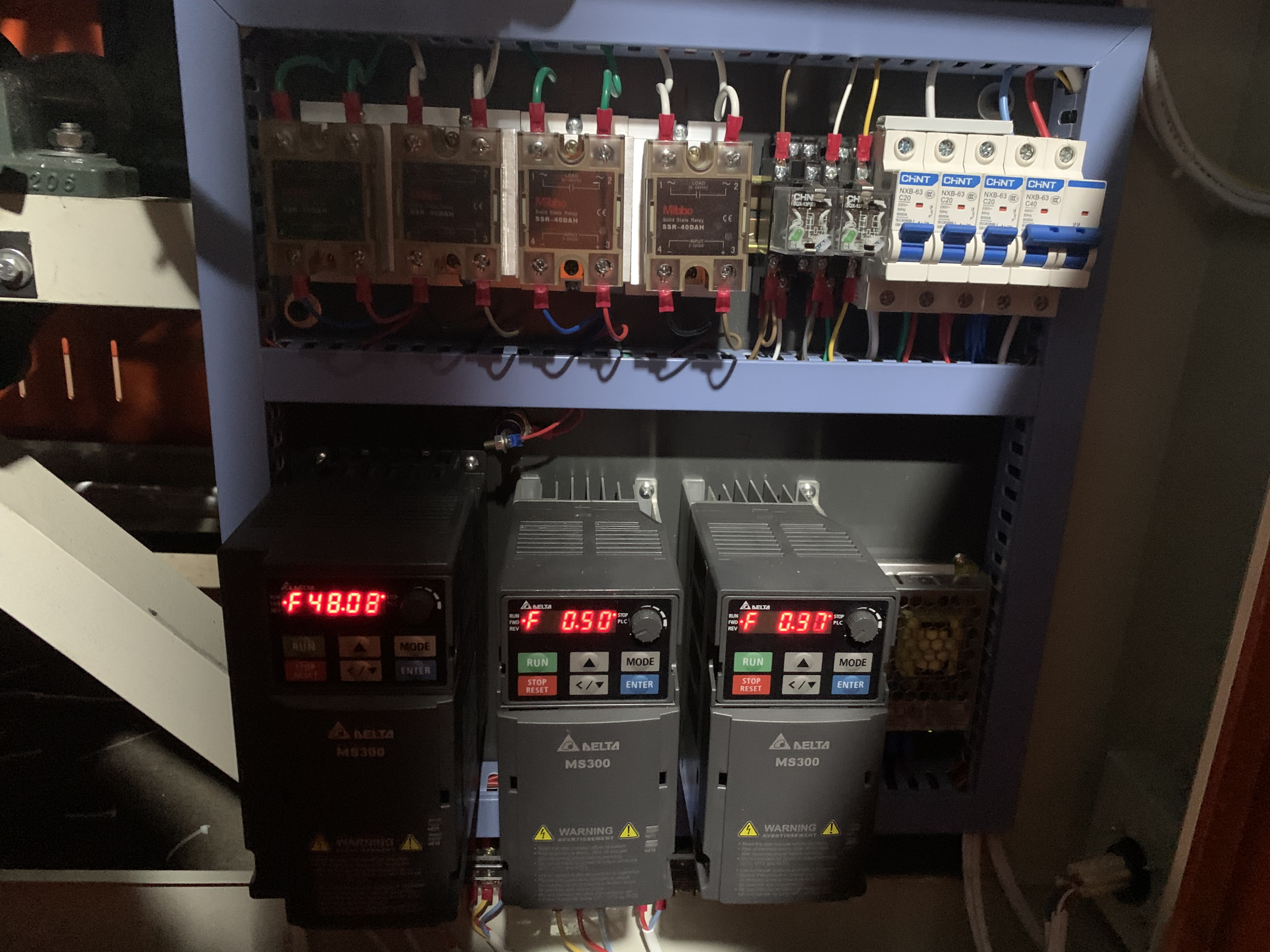

Intelligent temperature control system
Static electricity elimination system
Optional Equipment:
1. Individual unwinding

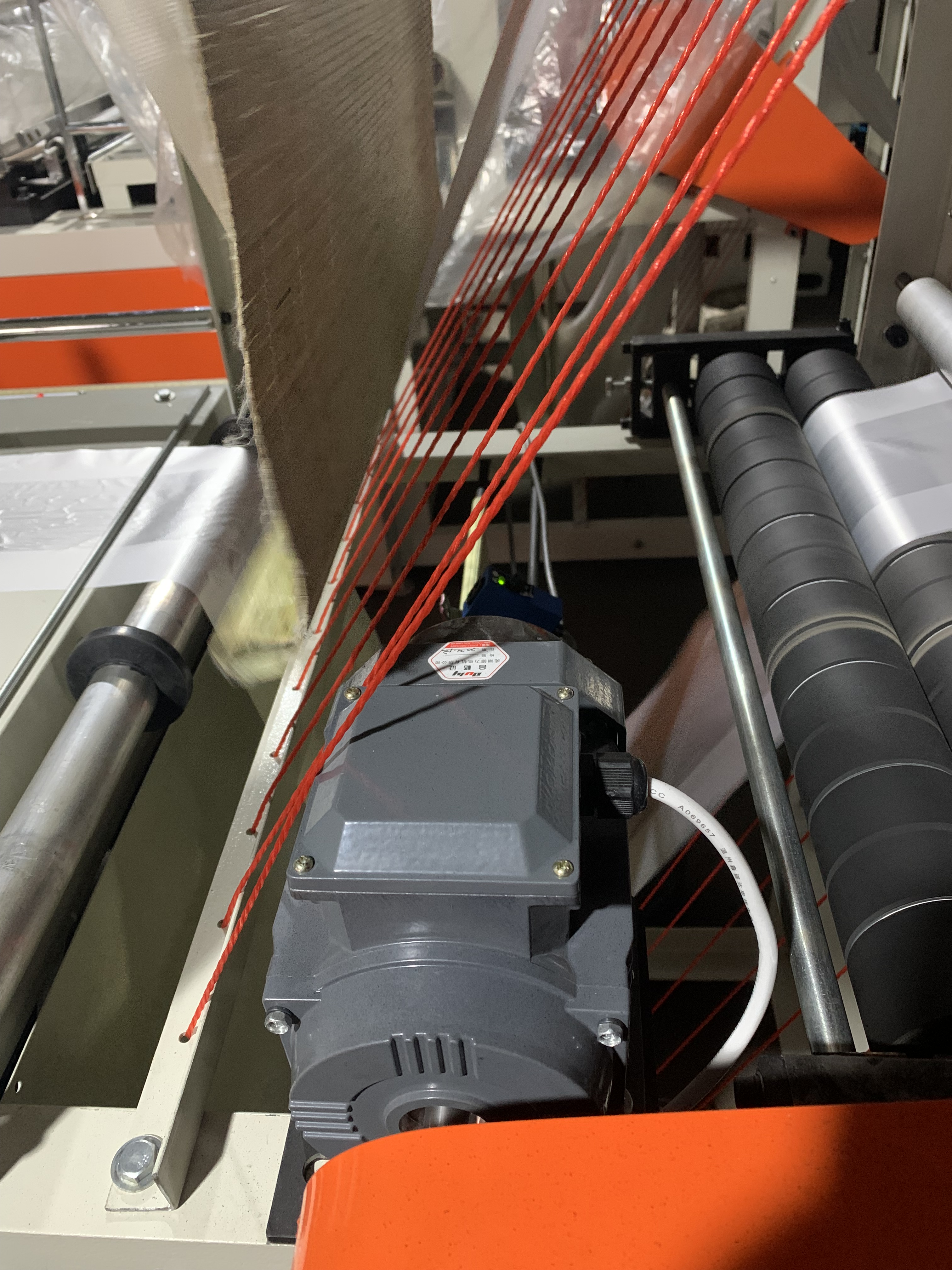

2. AC Feeding motor
3. Yaskawa/Panasonic servo motor

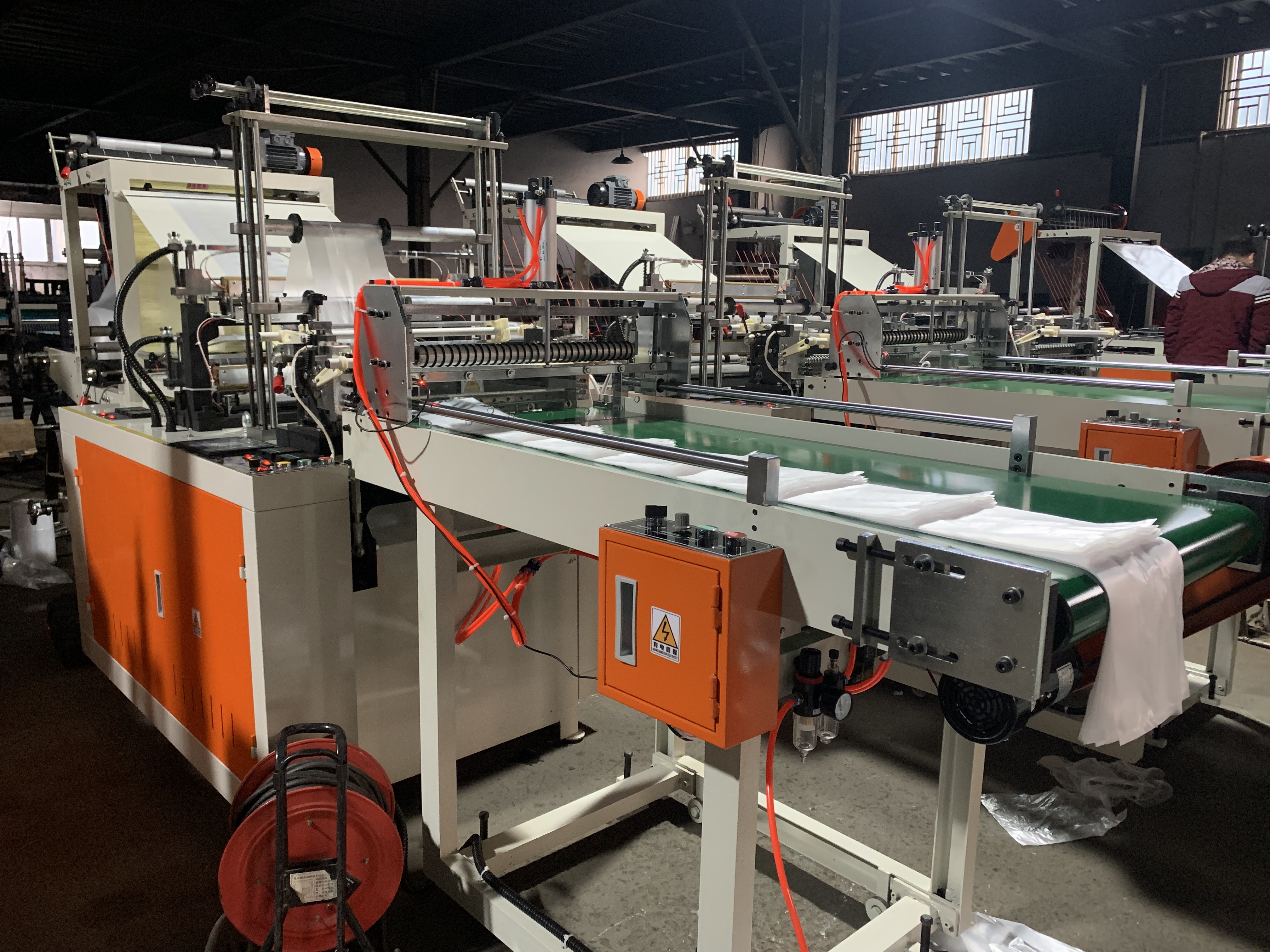

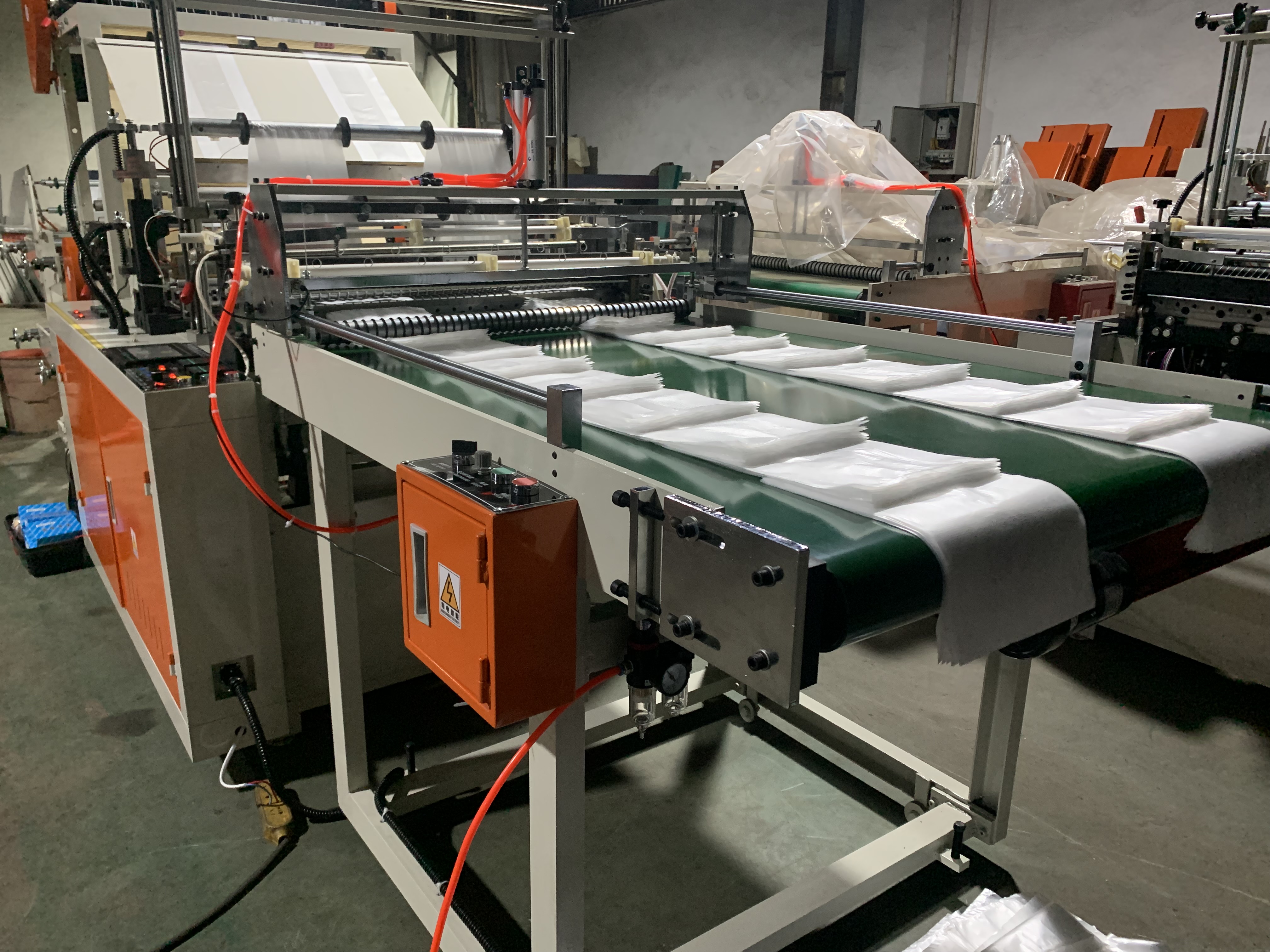

4. Converyor
| SHXJ (4 Lines) | SHXJ ( 2 Lines) |
 |
 |
|
Model |
SHXJ-600 |
SHXJ-800 |
SHXJ-1000 |
SHXJ-1200 |
|
Max.Width (mm ) |
550 |
750 |
950 |
1150 |
|
Max.Length (mm) |
950 |
950 |
1200 |
2000 |
|
Speed (pc/min) |
30- 120 |
30- 100 |
30- 100 |
30-80 |
|
Feeding motor |
400w |
400w |
400w |
400w |
|
Lines |
2 |
2/4 |
2/4/6 |
2/4/6/8 |
|
Power of main motor(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Weight(kg) |
800 |
1000 |
1200 |
1400 |
|
Outline dimension |
3200×1150×1550 |
3200×1350×1650 |
3200×1550×1750 |
3400×1750×1850 |
|
Heating power (kw) |
4 |
5 |
6 |
6 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
