High Speed Automatic Plastic T Shirt Bag Making Machine (200-300pcs/min*2 )
Descriptions:
Suitable material: HDPE , LDPE ,PLA + PBAT, PLA + PBAT + starch (calcium powder) PLA + PBAT + TACL biodegradation

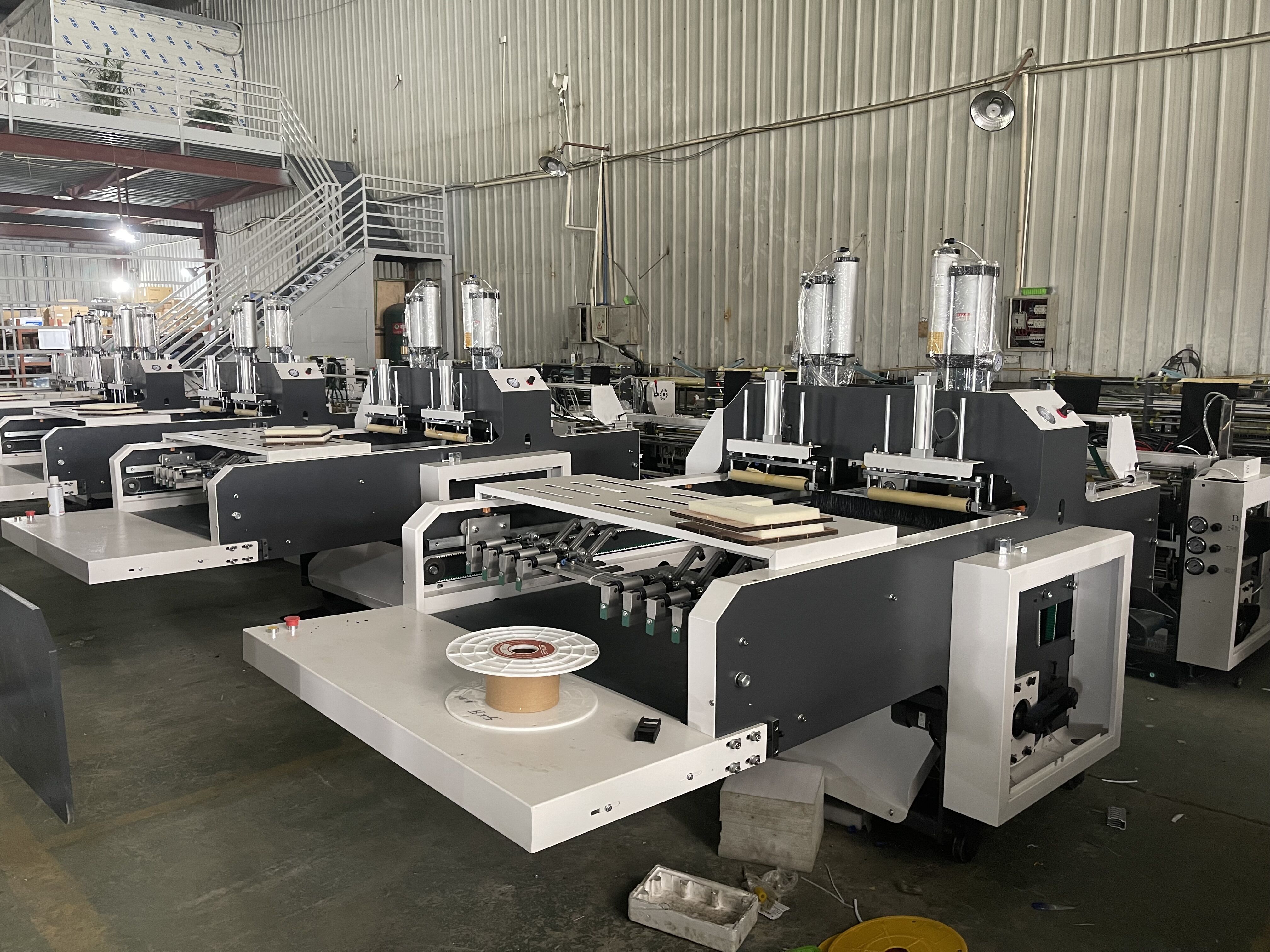

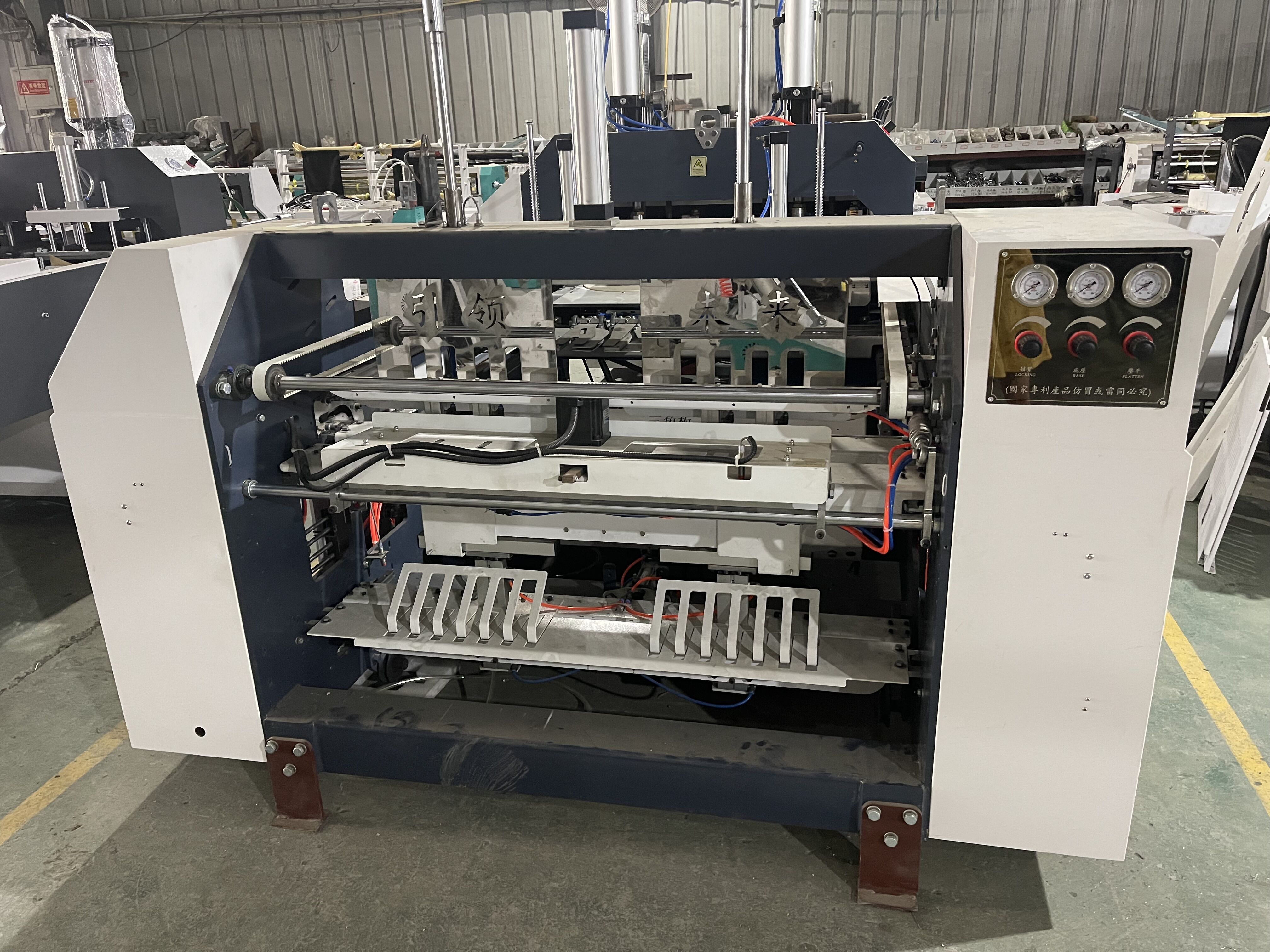

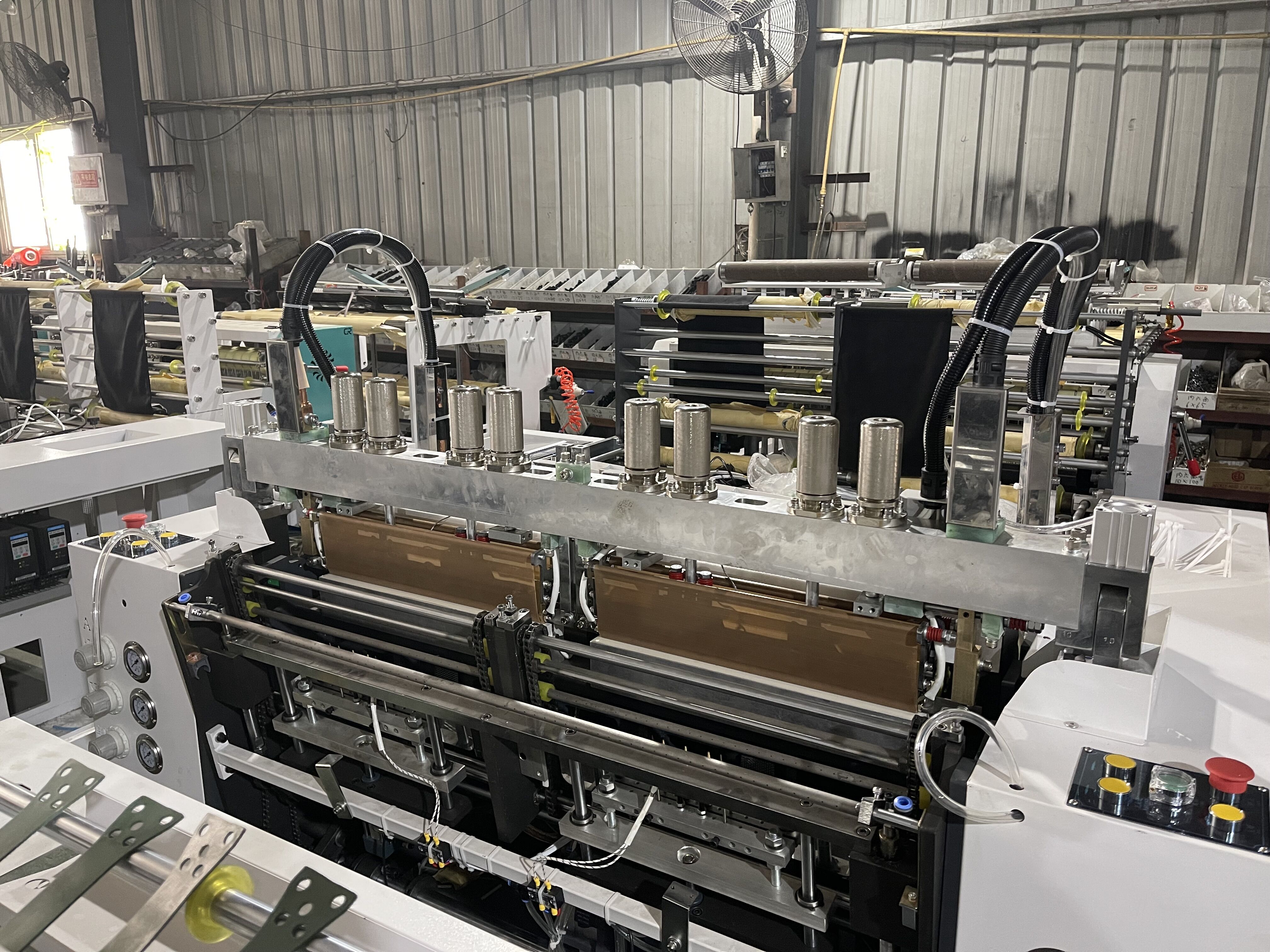

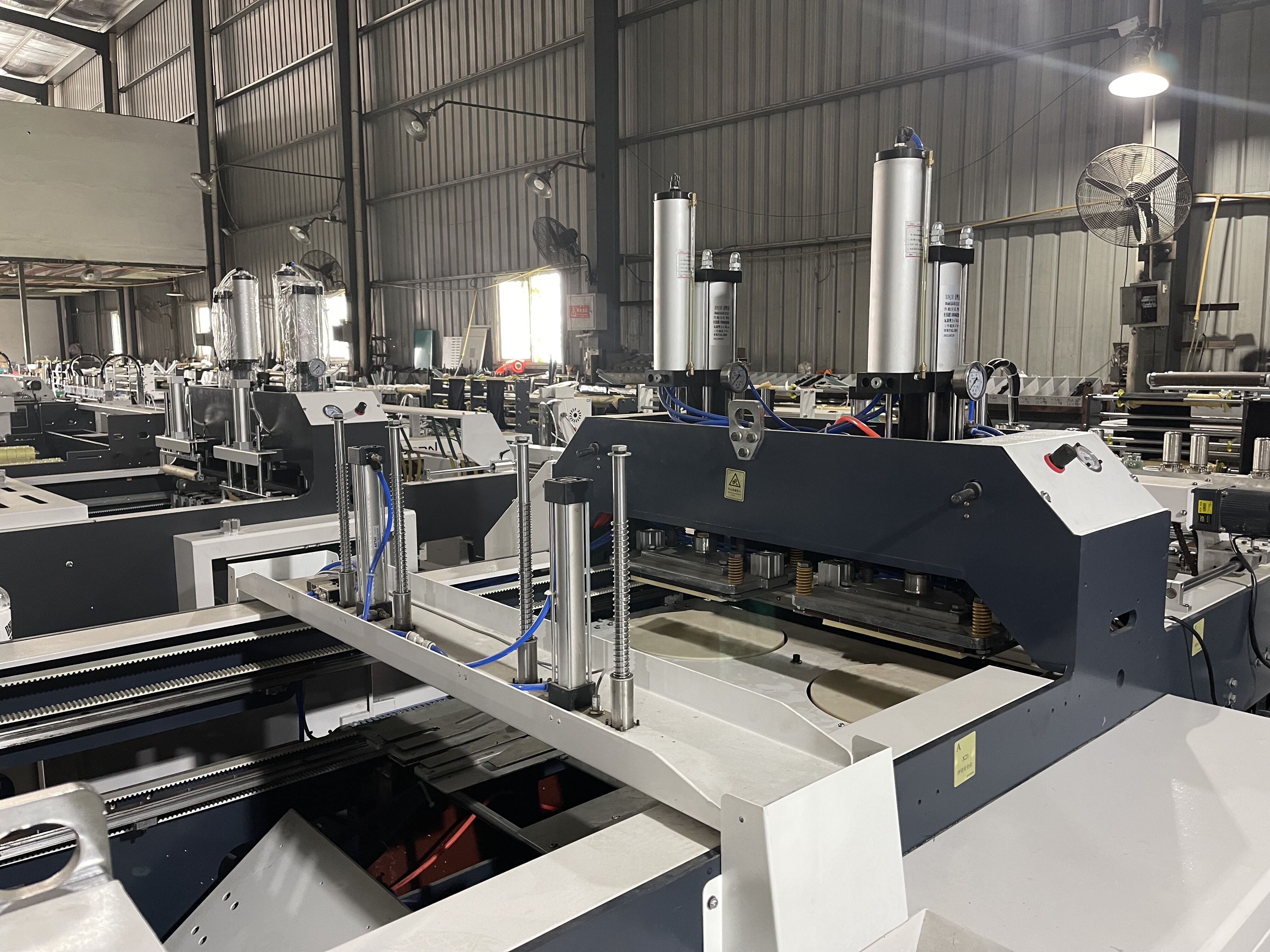

The automatic t shirt bag making machine is used to produce printed t shirt / vest shopping bag. The hot sealing knife and hot cutting knife are designed together in order to achieve non-stretch bag making and speed improving.
Features:

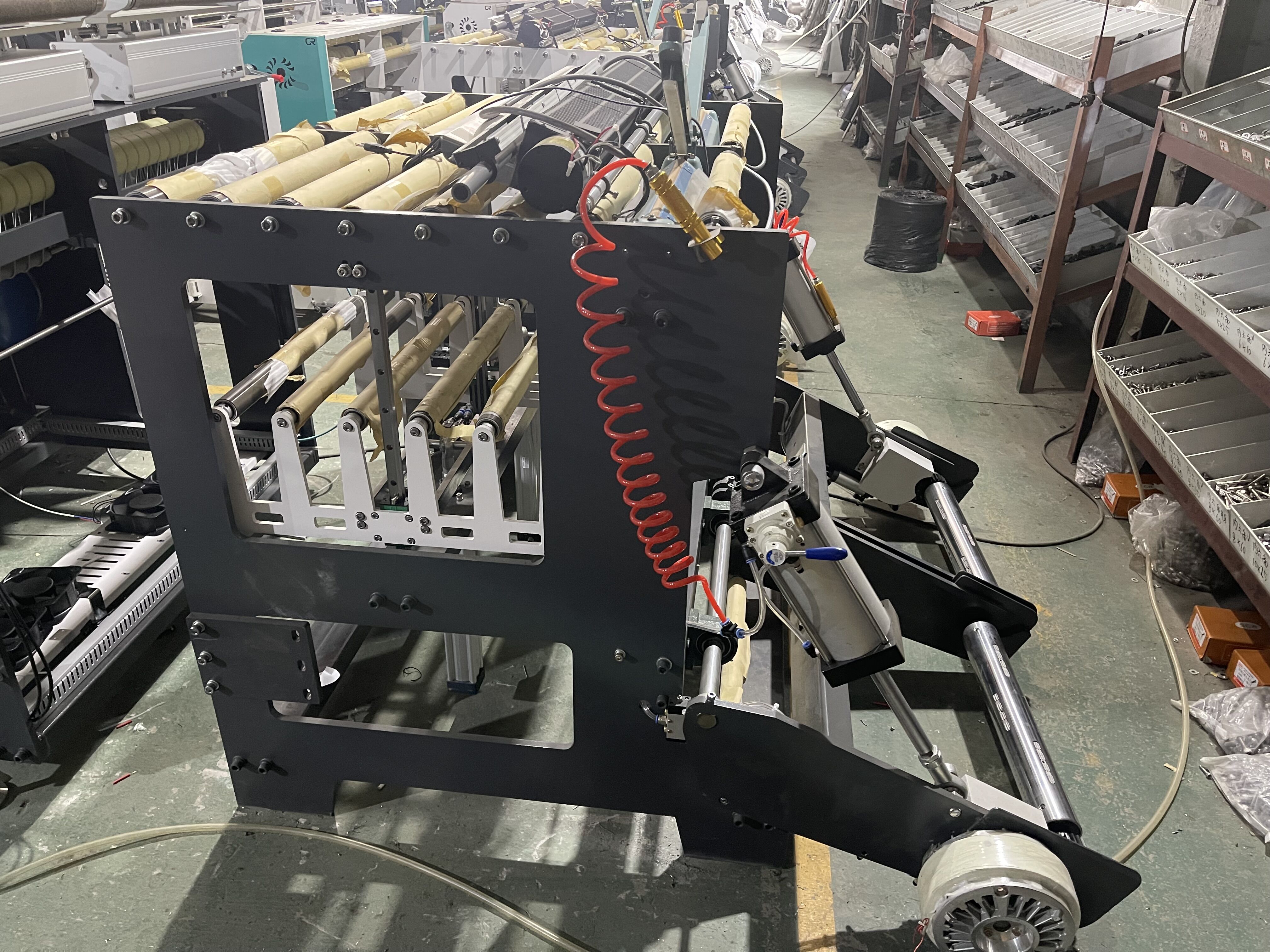

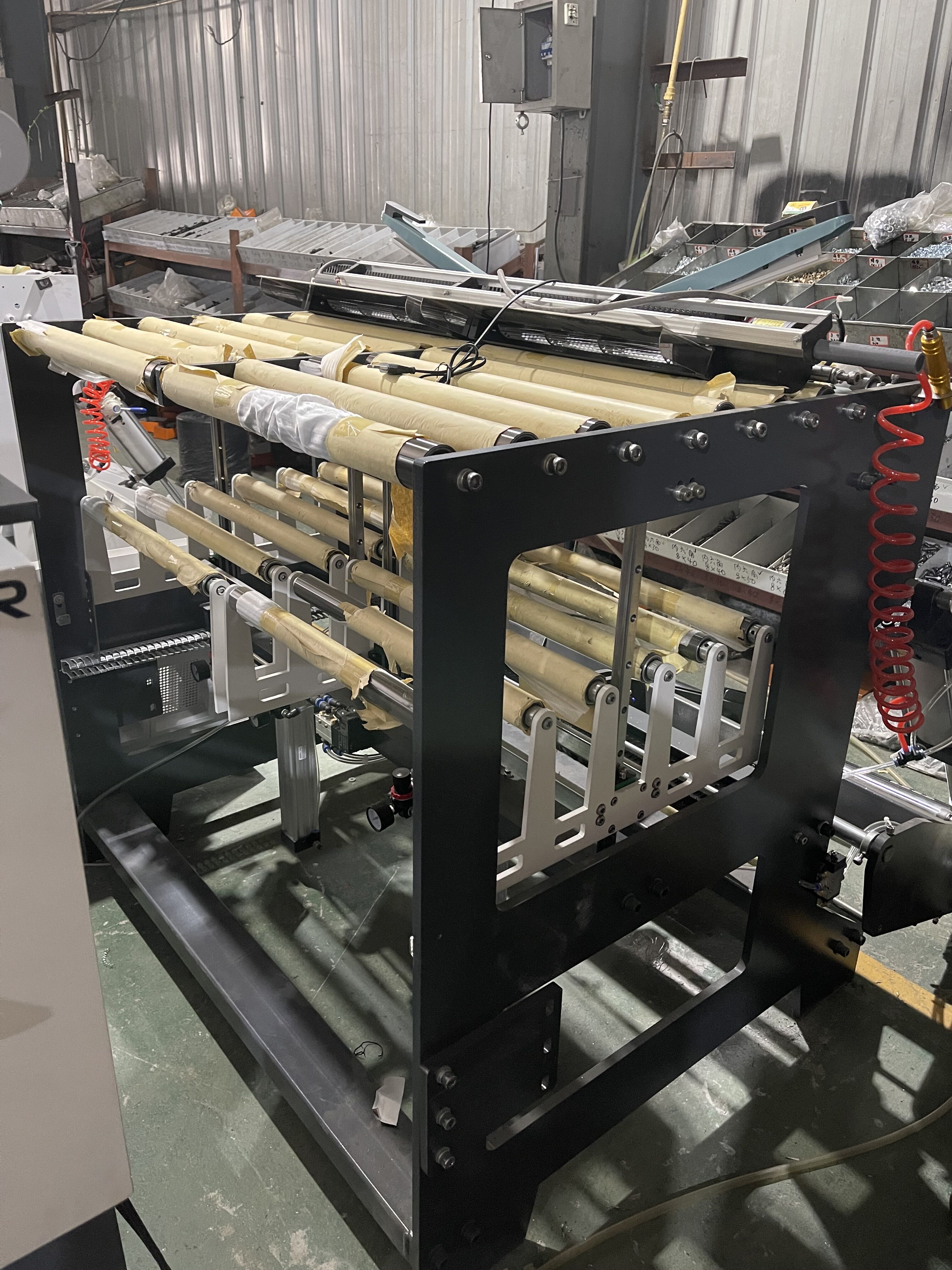

1. Unwinding tension with AC inverter automatic control
2. With 2 pcs photocell for printed film;
3. Two sets 4kw servo motor control to ensure the machine working much stable and higher capacity .
4. Multiterm automatic warning,automatic stop design
|
Model |
KP- 400x2HS |
KP-500X2HS |
|
Max.Width of bag-making(mm ) |
380*2 |
450*2 |
|
Max.Length of bag-making(mm) |
350-700 |
350-700 |
|
Speed of bag-making(pc/min) |
150-300*2 |
150- 300*2 |
|
Main servo（kw） |
1.5 |
1.5 |
|
Feeding servo (kw) |
4 |
4 |
|
Punch servo (kw) |
1.3 |
1.3 |
|
Total power (kw) |
13 |
17 |
|
Weight(kg) |
2300 |
2500 |
|
Air compressor(hp) |
10 |
10 |
|
Outline dimension |
6800×1350×1750 |
6800×1550×1800 |
 |
 |
 |
 |
 |
 |
