Side Sealing and Cutting Bag Making Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Characteristics

Descriptions:
Suitable material: LDPE, HDPE, PP, OPP, BOPP

This side sealing bag making machine is used to produce packaging clothing bag, garments bag, bread bag, socks package bag, with self adhesive tapes on the bag. It include two Knife for Bopp bag ,one for straight line sealing and other side for dot line sealing.



Features:
Touch screen computer control;

With photocell for printed film;
Intelligent temperature control system;
Two pcs sealing knife , flat heating knife and dot heating knife
One Puncher
Customized special for multi functions bag, such as flower bag , chicken bag etc

Optional Equipment:

1.EPC

2.Auto tension

3.Air shaft

4.Yaskawa/Panasonic servo motor

5.Punchers

Technical parameters

Model

RQL-600

RQL-800

RQL-1000

Length of sealing&cutting(mm)

60-580

80-780

90-980

Width of sealing&cutting(mm)

50-600

55-600

60-600

Speed of Bag-making(pcs/min)

40-200

40-200

40-120

Accuracy of finished product

±0.3

±0.3

±0.3

Main motor (kw)

1.1

1.5

1.5

Total power

4

5

6

Weight

800

1000

1100

Dimension L*W*H(mm)

3600x1150x1700

3600x1350x1700

3600x1550x1700

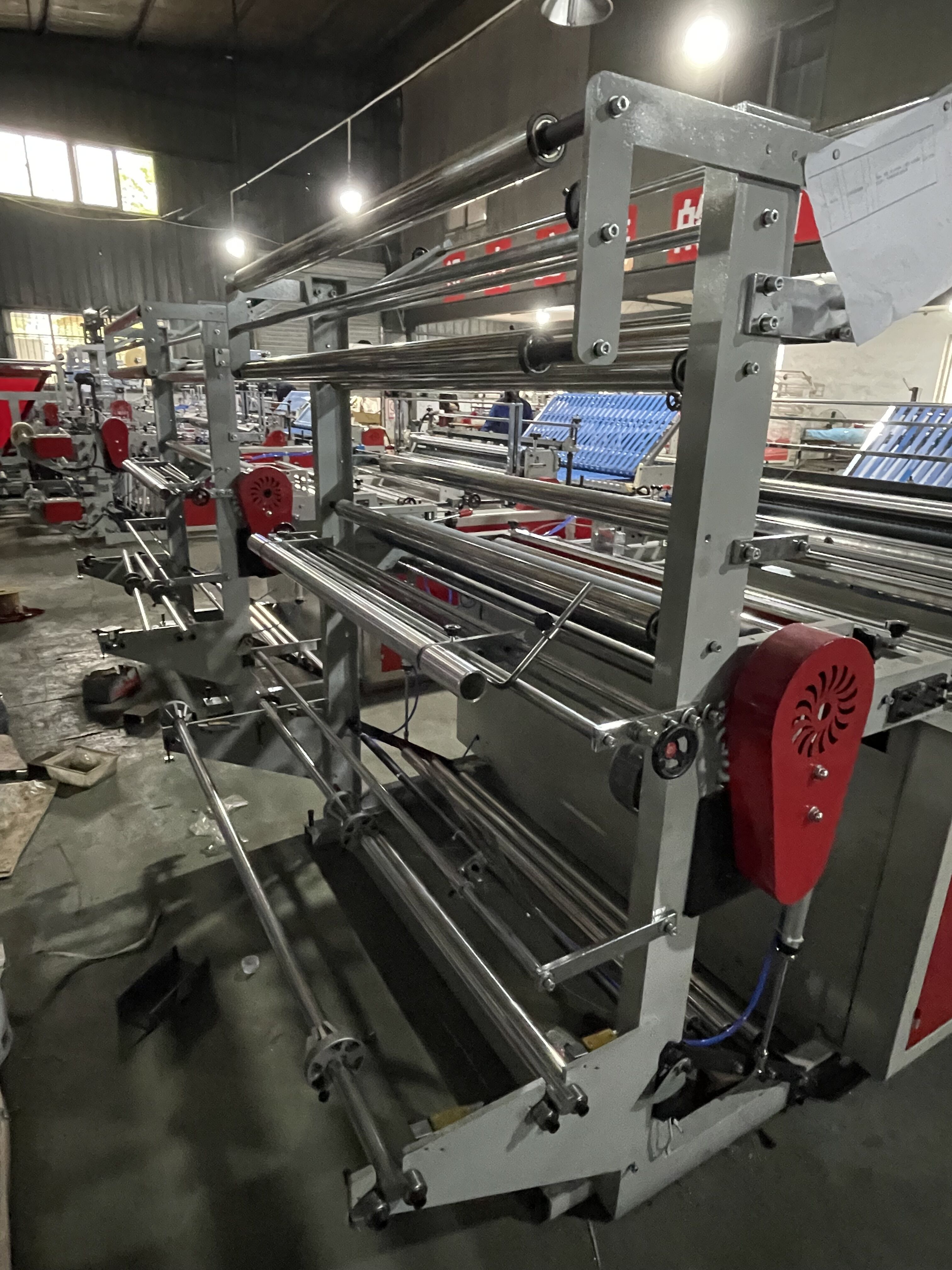

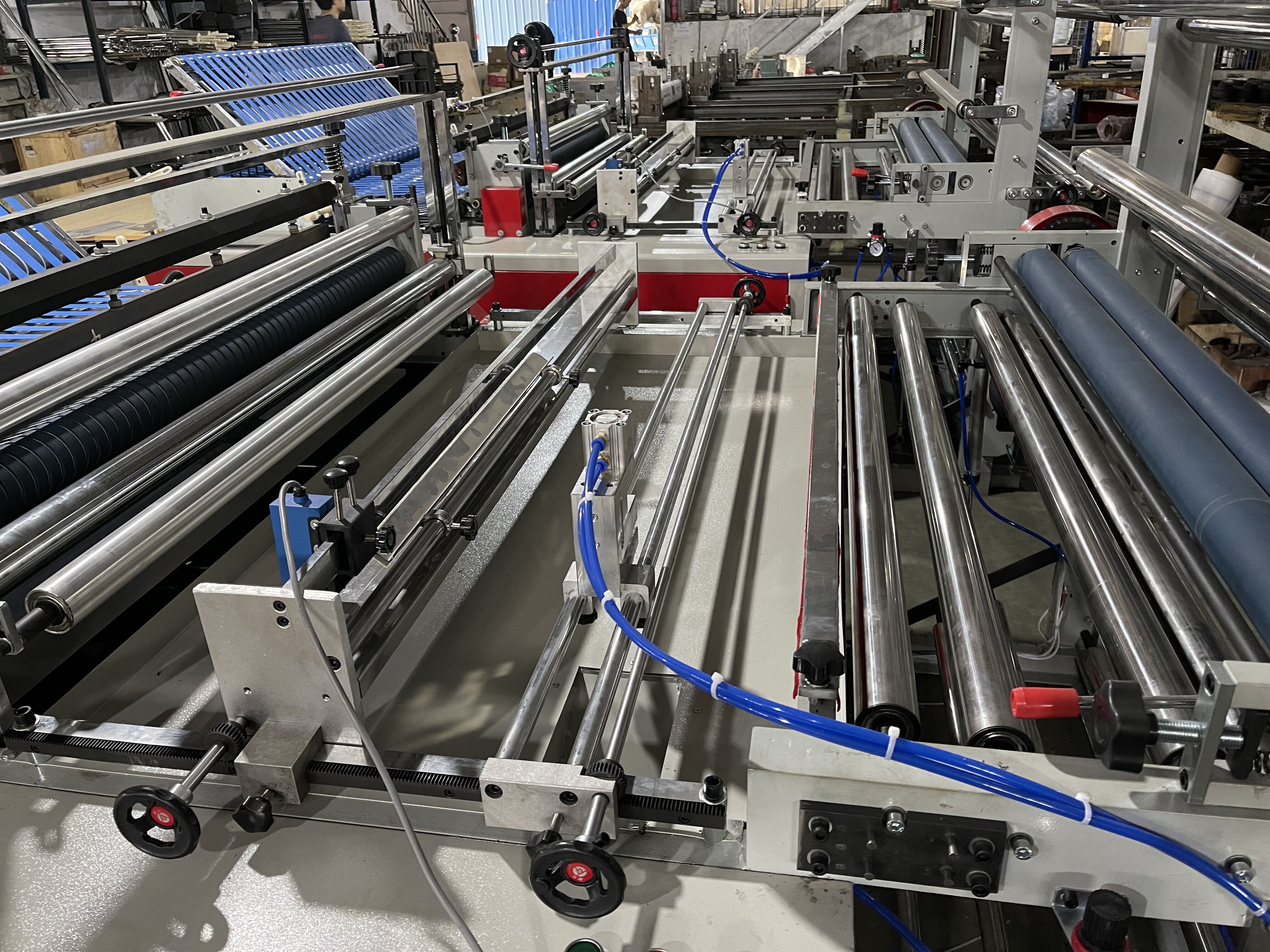

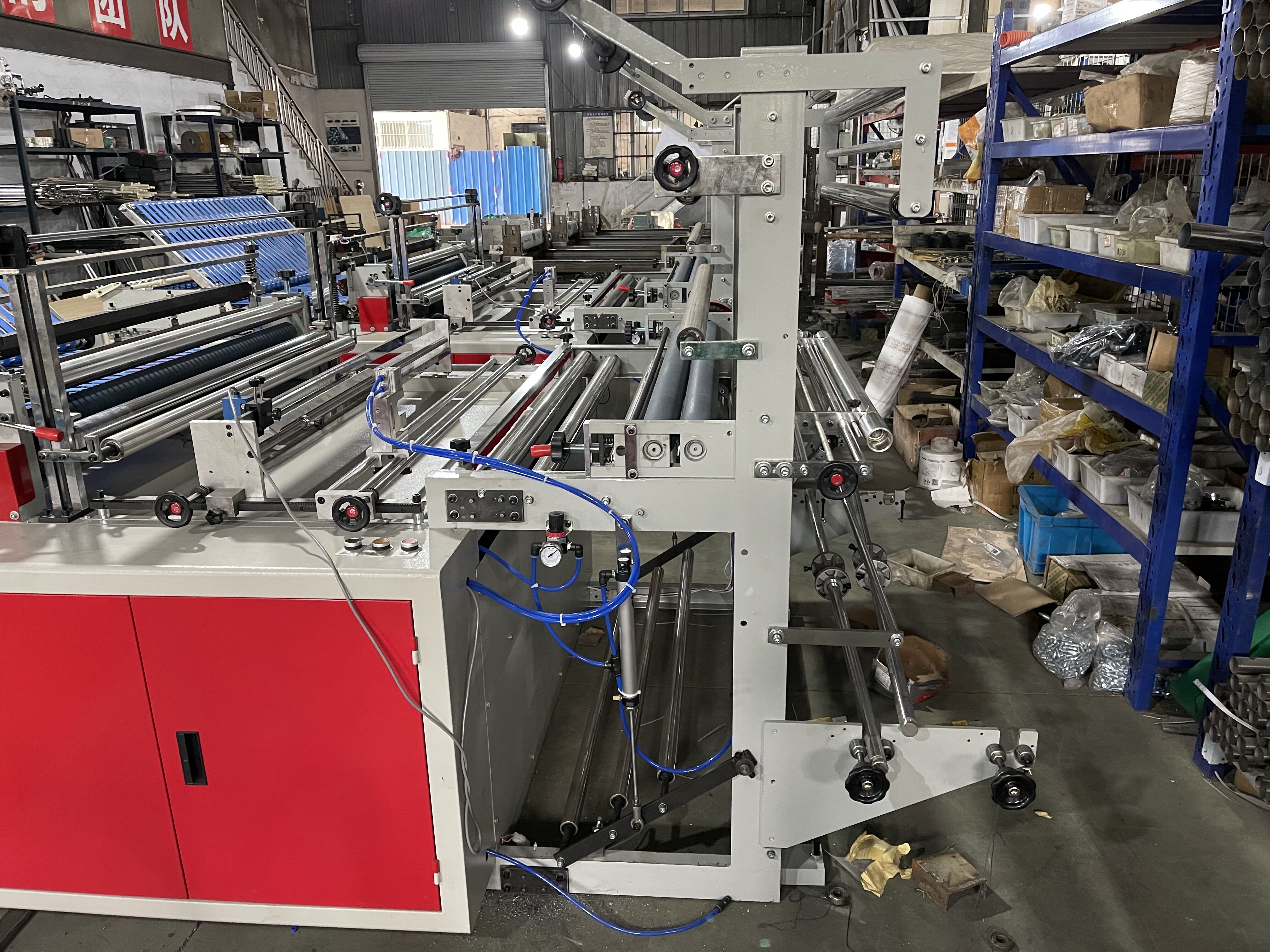

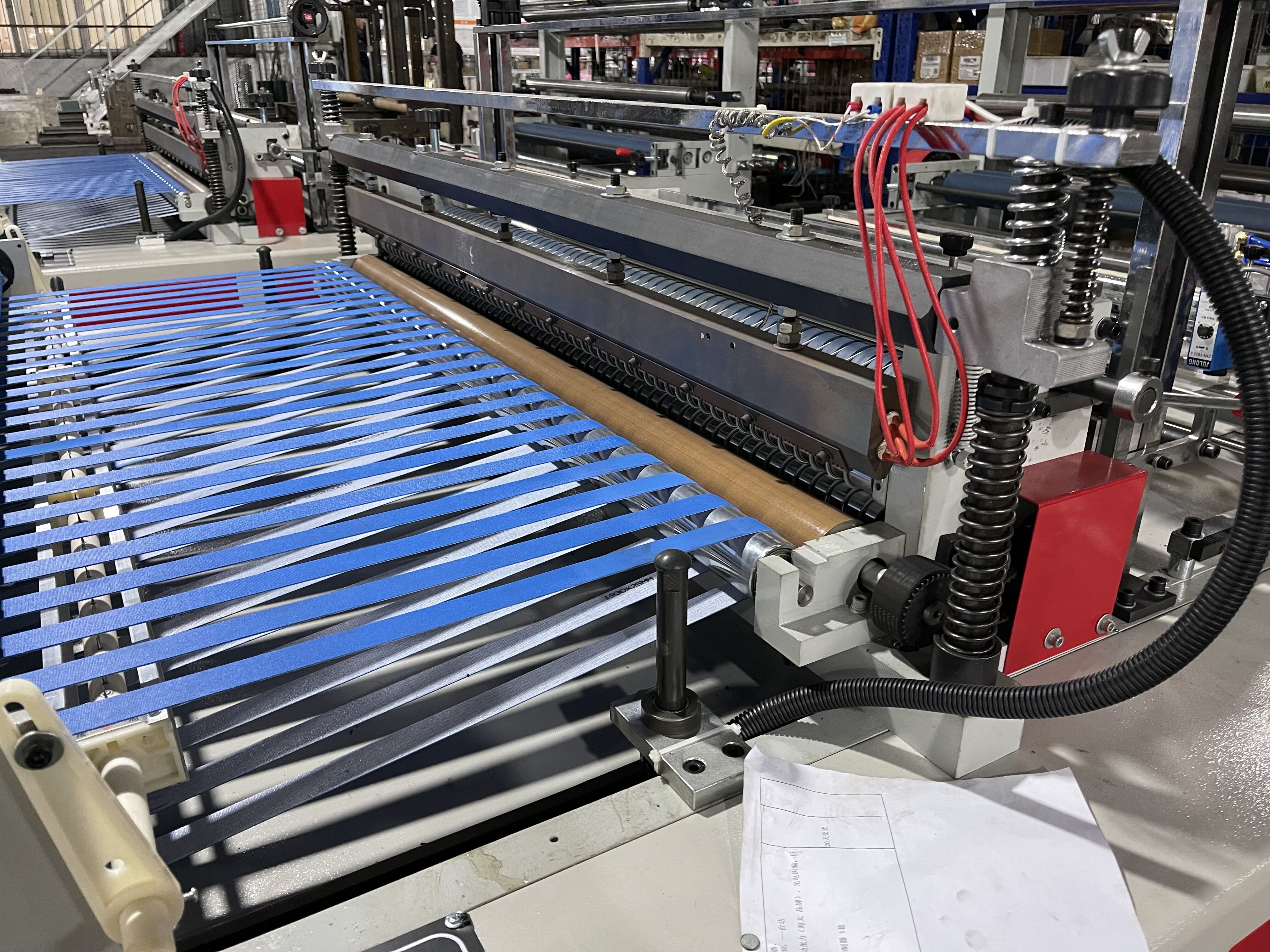

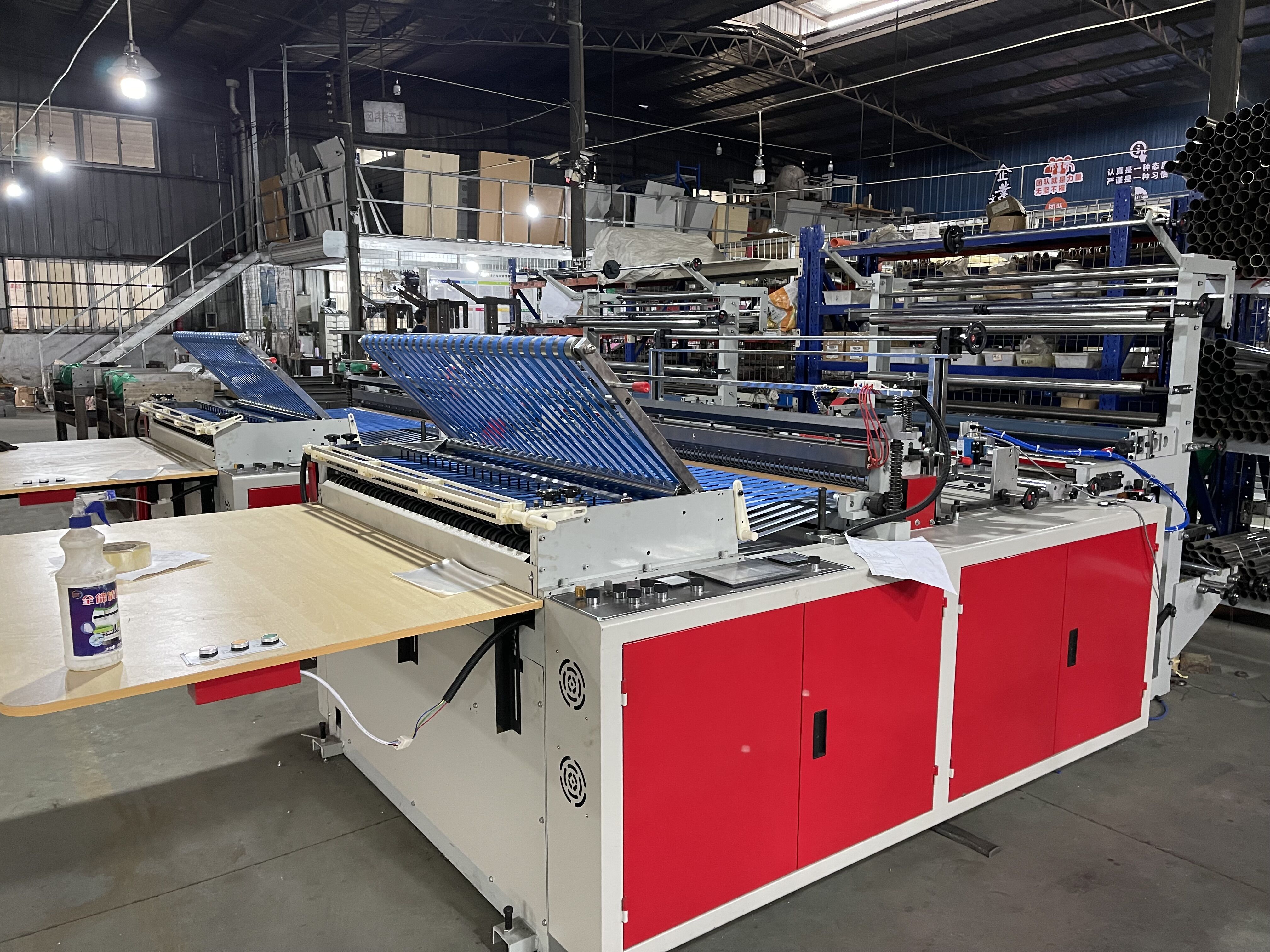

Machines details

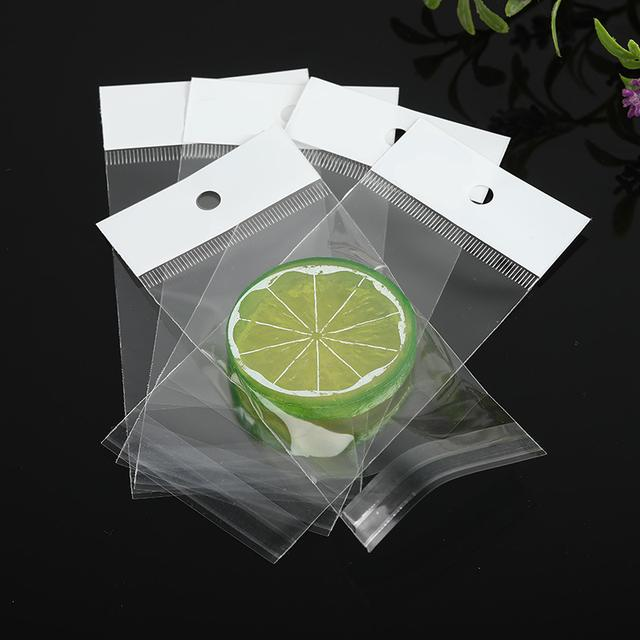

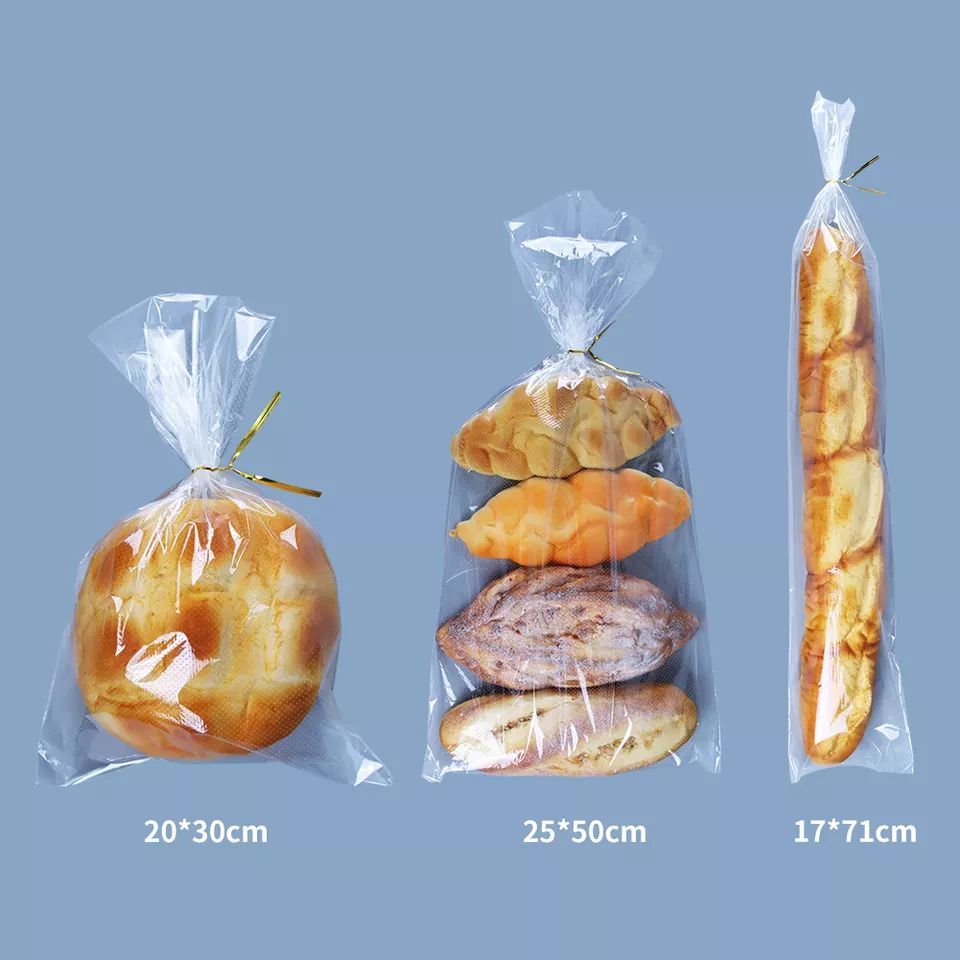

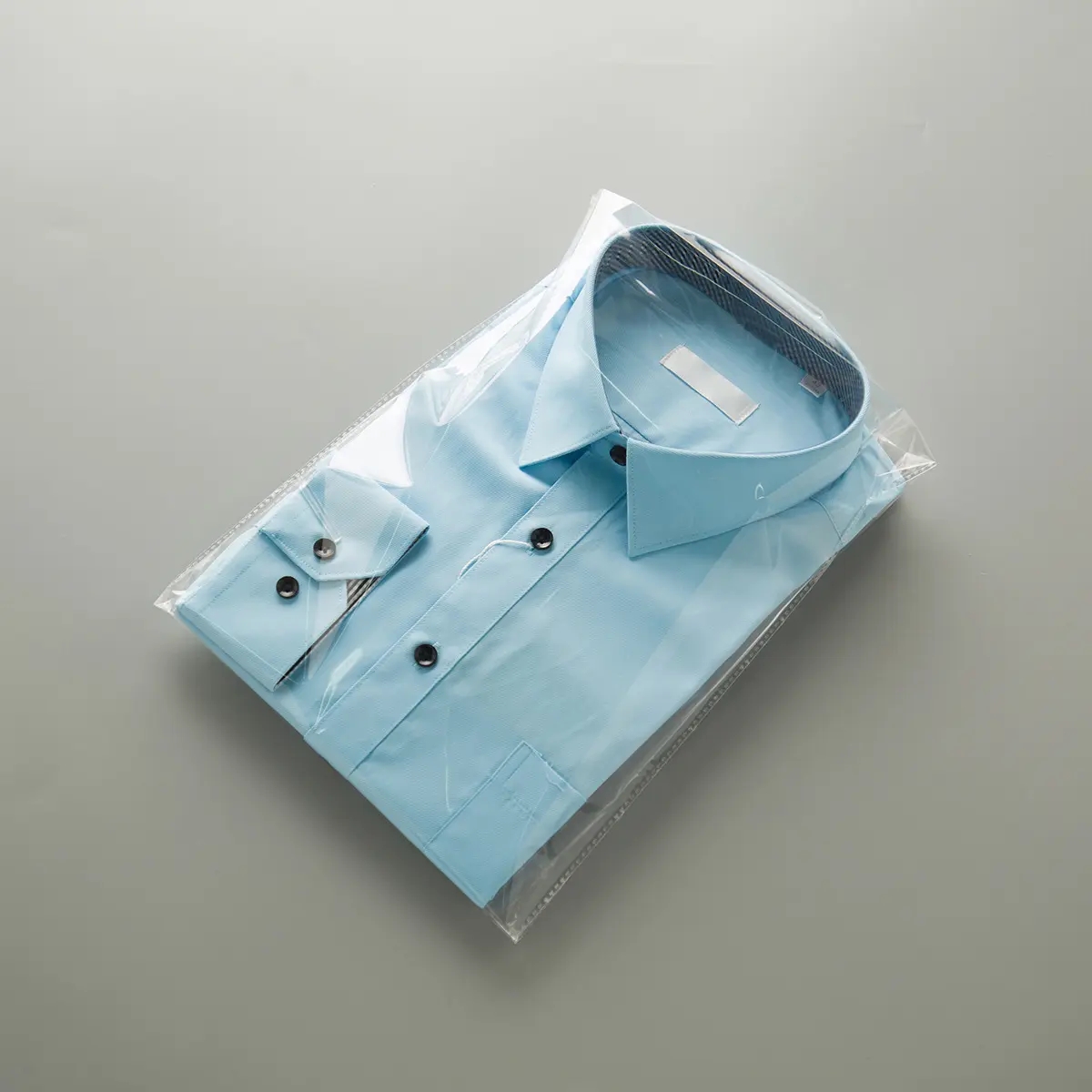

Production product display
