Description:
Suitable material: HDPE

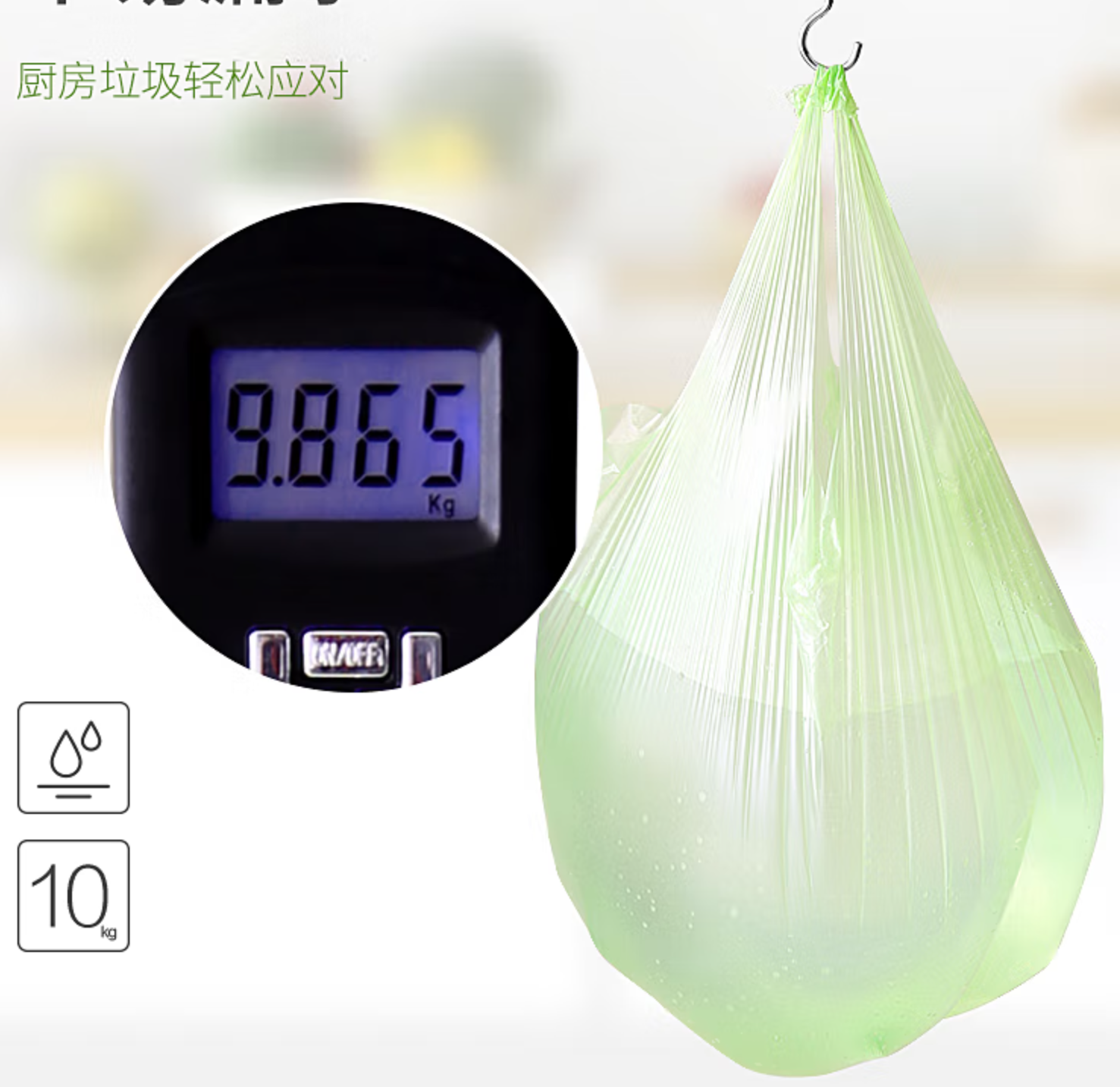

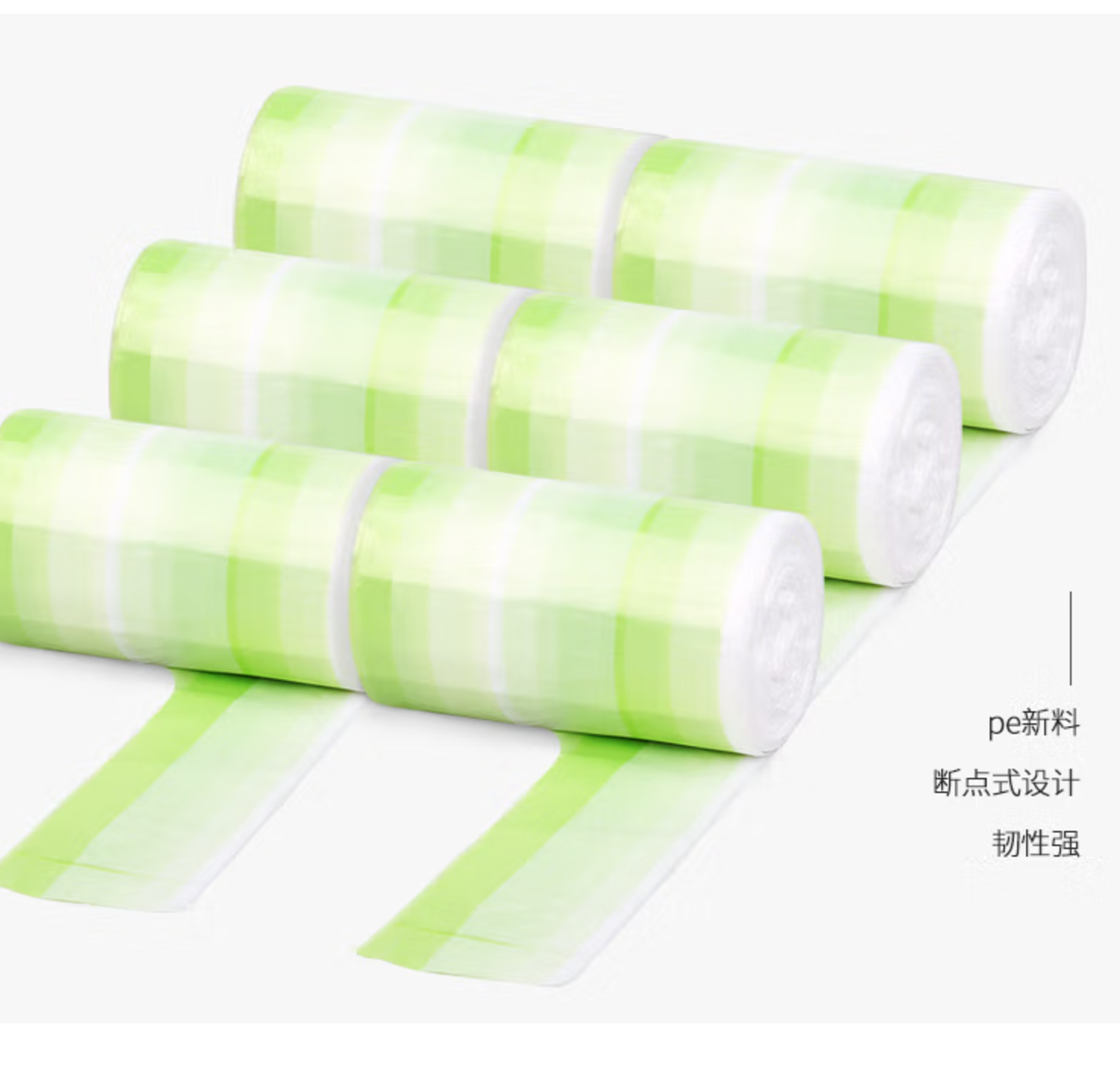

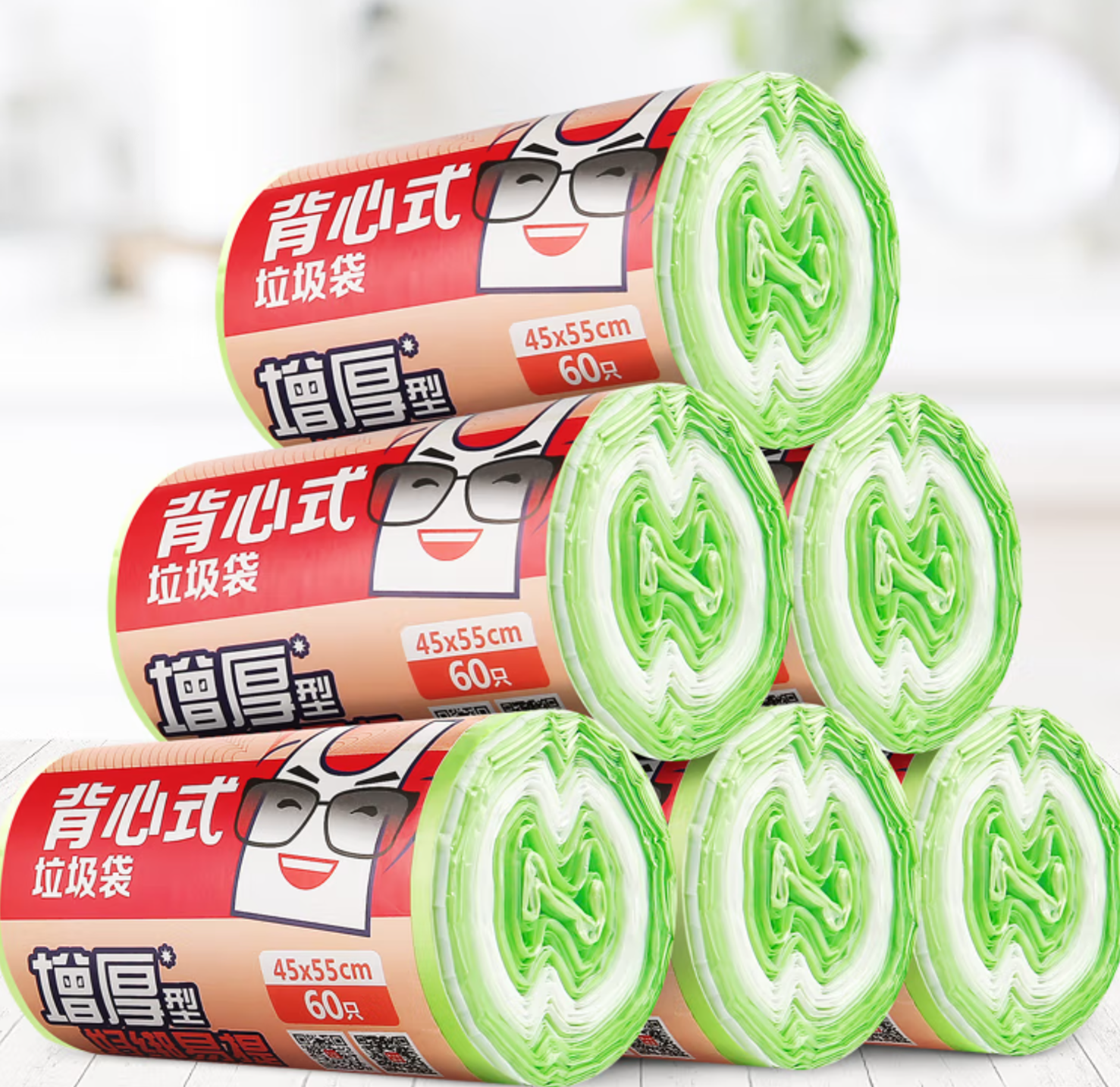

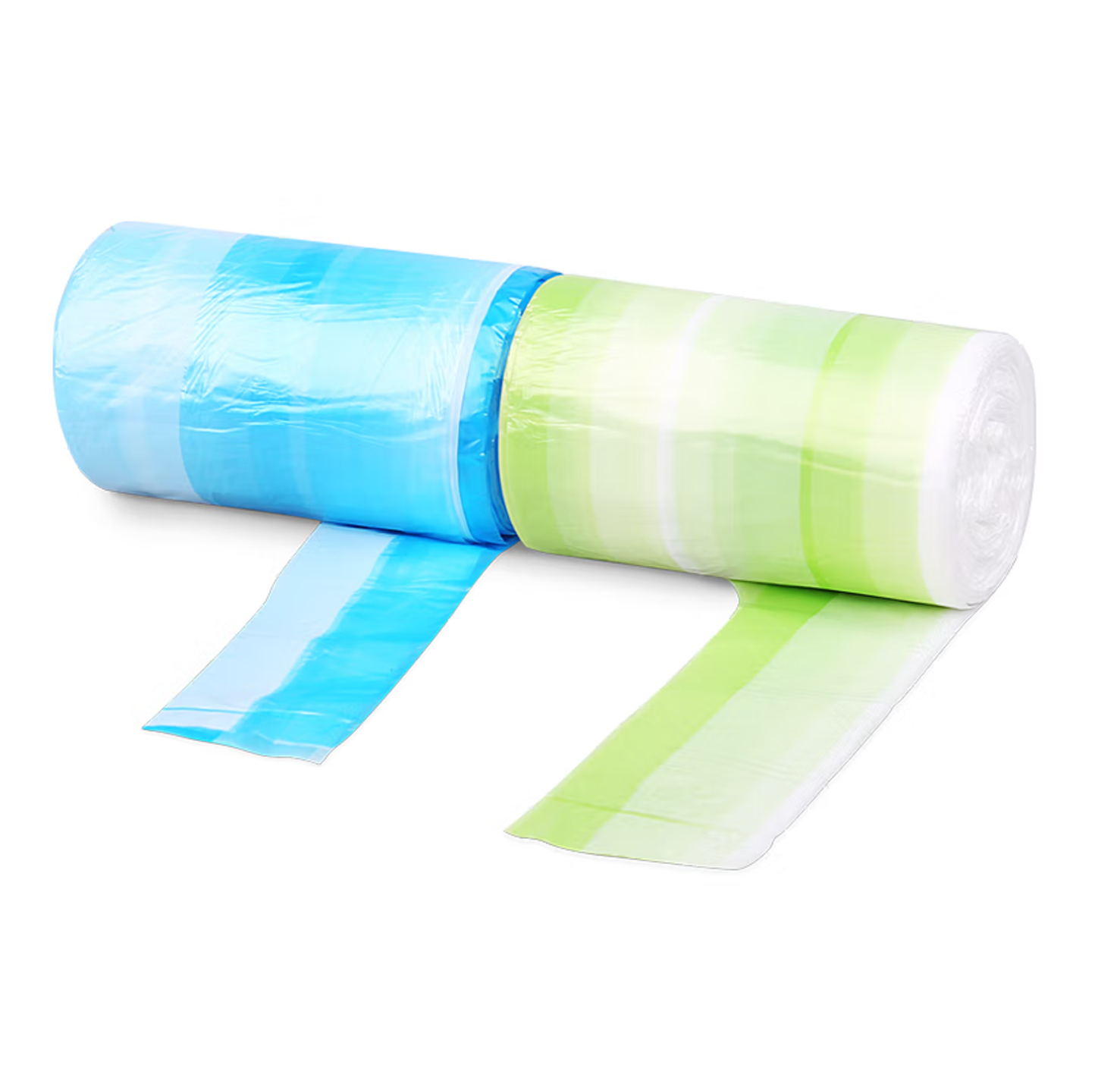

Double color stripe film machine is used to produce vest bag , garbage bag on roll, t shirt bag on roll. It produce stripe film (colorful film without printing) which are widely used for packing food,fruit,garments, textile,daily necessities and industrial products.
Feature:

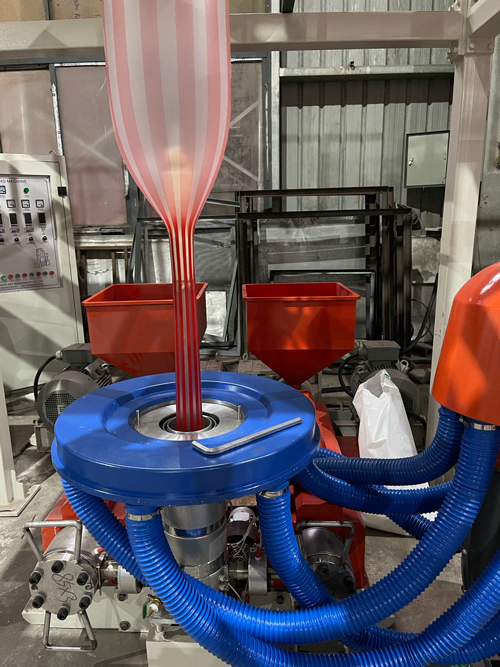

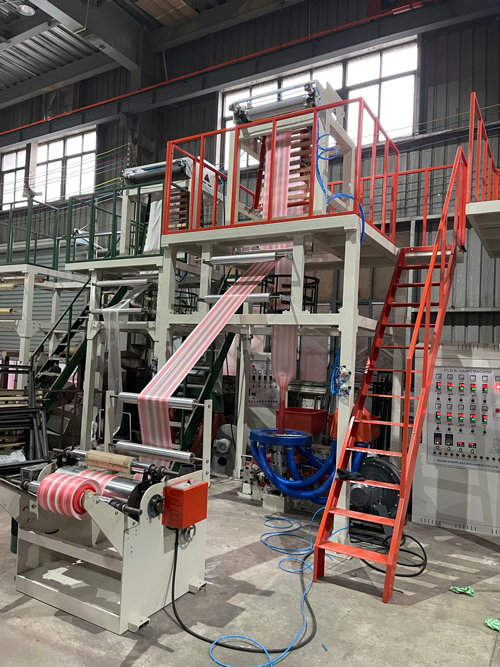

Double Color Stripe Film Blowing Machine ,it is composed with two screw and barrel , two gear box and one die head.
Double Color Stripe Film Blowing Machine, it can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and it has the gusset device( plug-in plate) that for making vest bag.
The winding unit adopt torgue motor to keep proper tension and make the film much smooth and change rolling easy
Optional Equipment:
1. Autoloader
2. Corona treater
3. Air compressor
4. Air shaft
Model |
KP-D45x2x600 |
KP-D55x2x800 |
Film Thickness(mm) |
0.006-0.10 |
0.006-0.10 |
Diameter of Screw(mm) |
Φ45mm×2 |
Φ55mm×2 |
Screw L/D Ratio |
30:1/32:1 |
30:1/32:1 |
Main Motor Power(kw) |
11KW *2 |
18.5KW *2 |
Geat box |
133# x 2 |
173# x2 |
Max.Output (kg/h) |
60 |
80 |
Max Film Width(mm) |
600 |
800 |
Roller Width(mm) |
700 |
900 |
Weight of Machine(kg) |
3000 |
3500 |
Overall Dimensions(L×W×H)mm |
3800×2200×4200 |
4800×2400×4500 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
