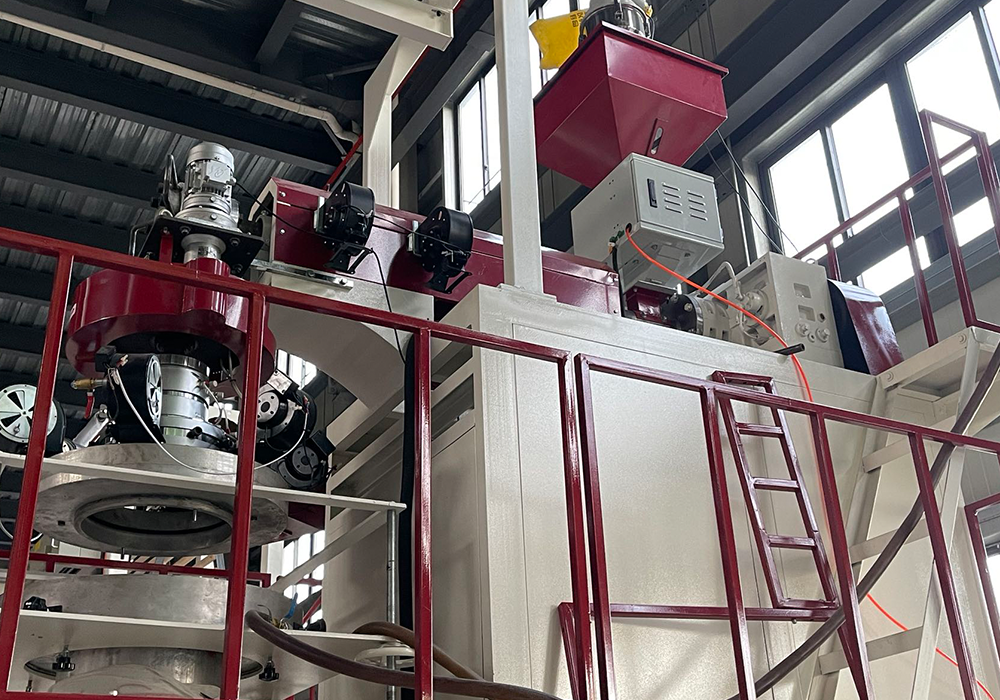

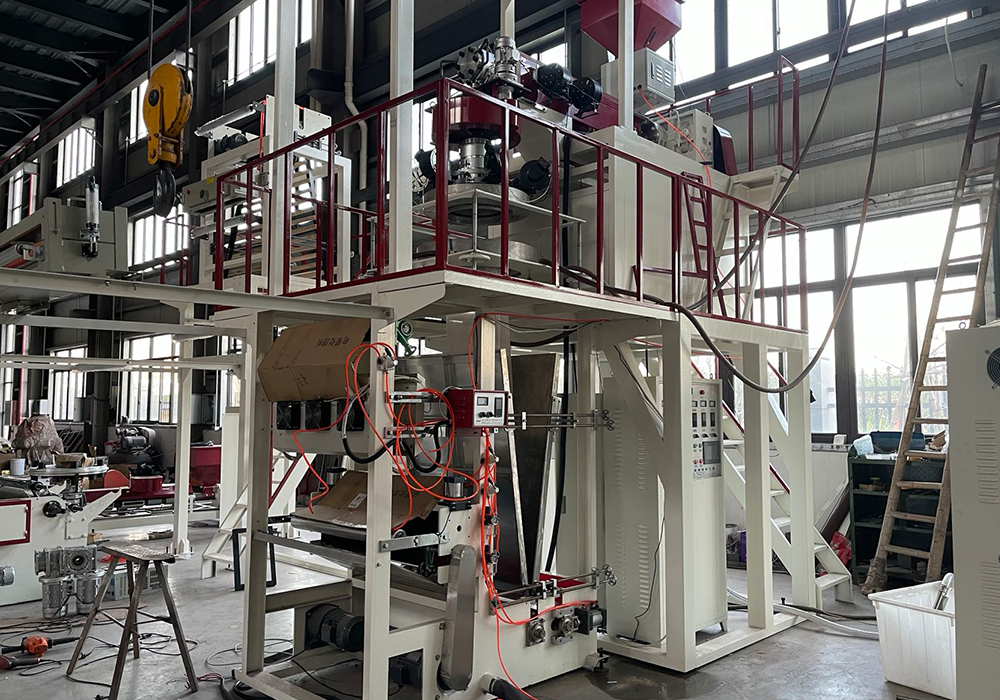

Descriptions:
Suitable material: PP (polypropylene)
The pp film blowing machine is used to produce food packaging bag , Anti-fog freezer bag, Carrier bag , Bakery bag ,garment bag , sock bag, fruit bag .
Feature:

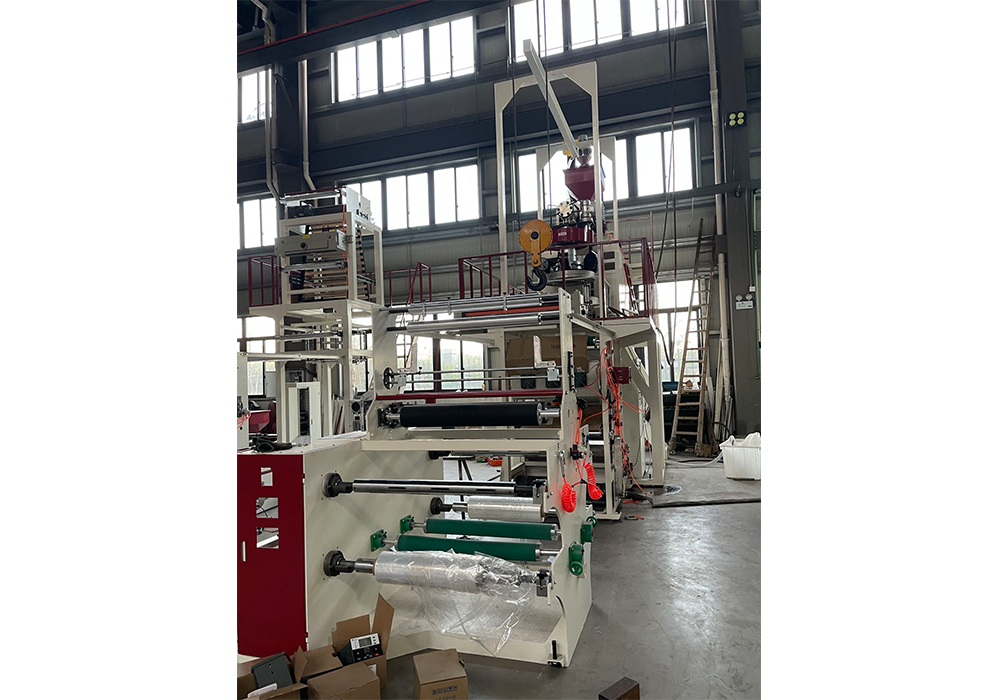

PP film blowing machine is designed specially for producing PP (Polypropylene) film , it provides a good solution for general flexible packaging with highly quality suitable for textile and garment industries, as well as in food packaging, stationary products, flower packaging, zipper bags and other transparent packing bags.
The water-cooling system ensures the transparency of the final film product.
Customized machine design: Screw sizes are available in 50mm, 55mm, 65mm for different output capacities and film width.
Die head size from 100-300mm to produce the PP (Polypropylene) film with different specifications.

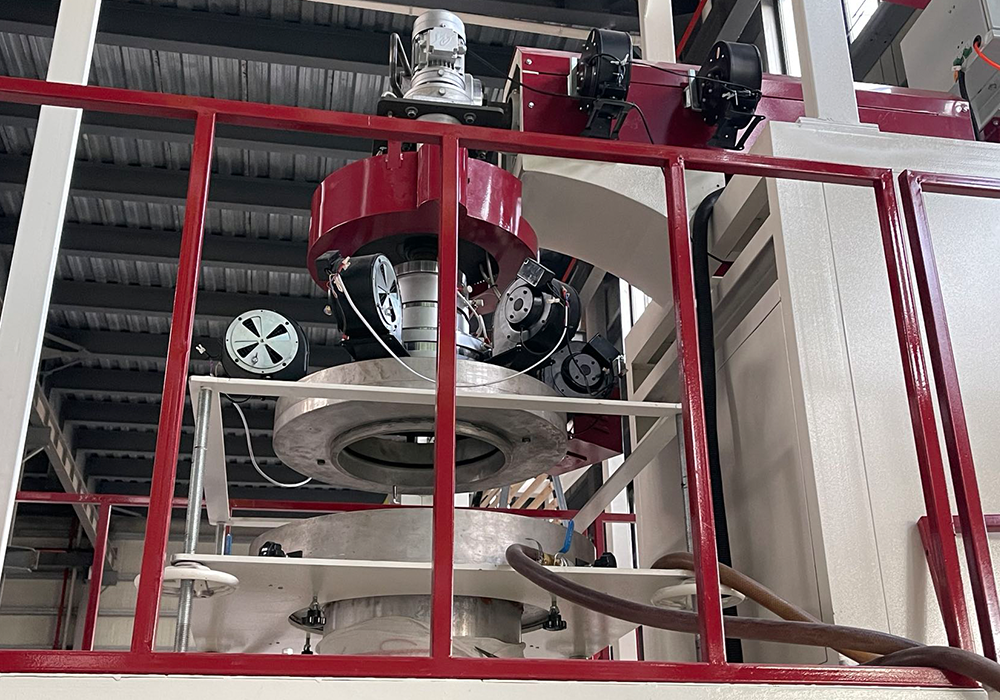

The standard machine include 3 sets different size of water rings for a flexible production of different sized final film product. The special air ring design ensures the stability of the PP bubble during the production process.
The screw is made of bimetallic , and barrel is made of 38 CrMoAl, and been nitrided.

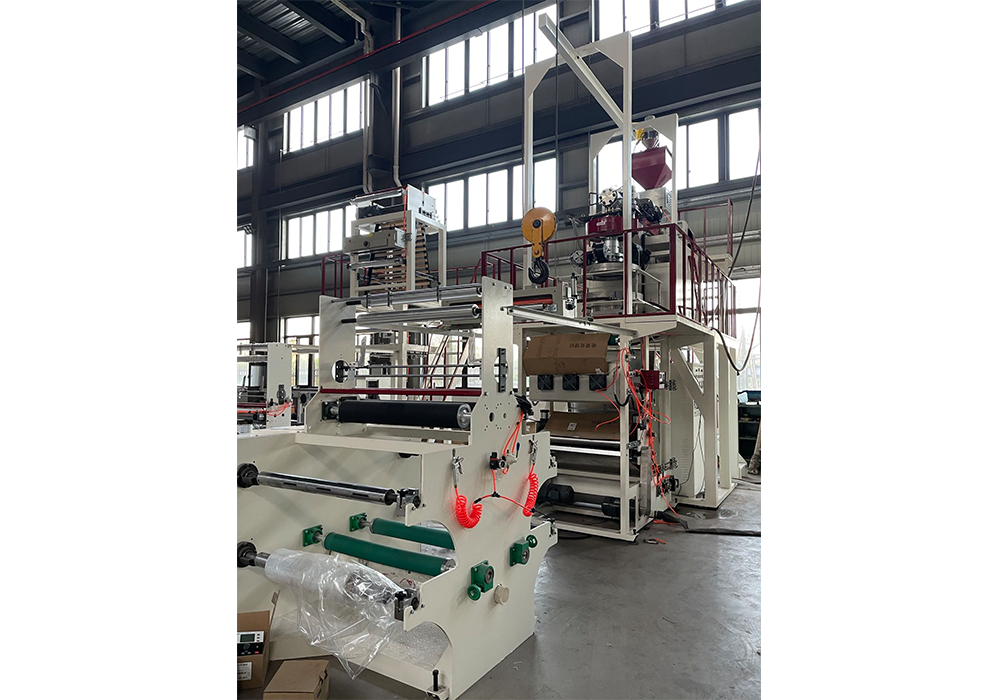

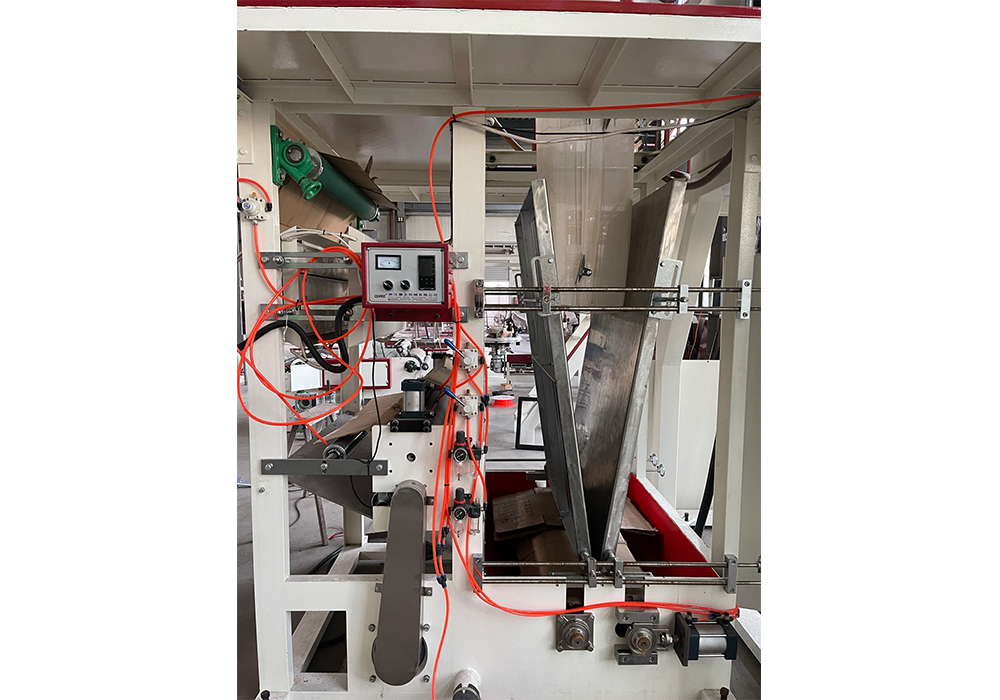

The centre winding unit adopt torgue motor to keep proper tension and make the film much smooth and change rolling easy.
Optional Equipment:
1. Auto loader
2. Rotary die head
3. Double winders
4. Air shaft
5. Corona treatment
6. Cooling tower
7. Water chiller
Model |
KP-PP50 |
KP-PP55 |
KP-PP65 |
Suitable material |
PP |
||
Film width(mm) |
100-500 |
150-600 |
200-800 |
Film thickness(mm) |
0.03-0.11 |
0.03-0.11 |
0.03-0.11 |
Max. Output (kg/hr) |
30 |
45 |
60 |
Screw diameter(mm) |
ф50 |
ф55 |
ф65 |
L/D |
30:1 |
||
Cylinder cooling |
370w×2 |
370w×2 |
370w×3 |
Main motor power(kw) |
11 |
15 |
18.5 |
Gear Box |
133# |
146# |
173# |
Die Head Size(mm) |
ф150 |
ф220 |
ф280 |
Air blower (kw) |
1.5 |
2.2 |
2.2 |
Tracking roller width(mm) |
600 |
700 |
900 |
Take up motor power(kw) |
0.75 |
0.75 |
1.5 |
Take up speed (m/min) |
5-60 |
5-60 |
5-60 |
Wind speed(m/min) |
5-60 |
5-60 |
5-60 |
Wind power(N.m) |
10 |
10 |
10 |
Machine dimension(m) |
3.2×2×3.5 |
4.2×2.5×4 |
4.6×2.8×4.5 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
