High Speed Mono Layer Film Blowing Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Characteristics

Description:
Suitable material : HDPE , LDPE , LLDPE

High Speed Film blowing machine is used to produce shirt bag/vest bag , garbage bag on roll, flat bag , biodegradable bag , supermarket bag, shopping bag ,which are widely used for packing food,fruit,garments, textile,daily necessities and industrial products.

Feature:
High speed film blowing machine ,provides a good solution for general packaging and produces quality film of LDPE,HDPE,LLDPE. Film width can be customized according to customer requirements from 200mm to 1200mm.High precision die head, high efficiency screw and barrel, and cooling air ring provide good film thickness control and resistance.

The screw is made of bimetallic , and barrel is made of 38 CrMoAl, and been nitrided.
The winding unit adopt torgue motor to keep proper tension and make the film much smooth and change rolling easy



Optional Equipment:

1. Autoloader

2. Dryer

3. Corona treater

4. Rotary die head

5. Double winder

6. High speed screen changer

Technical parameter

Model

KP-H50

KP-H55

KP-H60

KP-H65

Screw Diameter(mm)

Φ50

Φ55

Φ60

Φ65

Screw Length

32:1

Film Width(mm)

300-600

300-800

400-1000

600-1200

Film Thickness(mm)

0.008-0.10

0.008-0.10

0.008-0.10

0.008-0.10

Max.Extrusion Output(kg/hr)

60-80

70-90

80-100

100-120

 Cylinder Cooling

370wX2

370wx3

370wx3

550wx3

 Driving Motor(kw)

18.5

30

37

45

Air blower (kw)

5.5

7.5

11

15

 Die Size(mm)

Φ60/120

Φ80/150

Φ100/220

Φ120/250

Winding Speed(m/min)

10-100

10-100

10-100

10-80

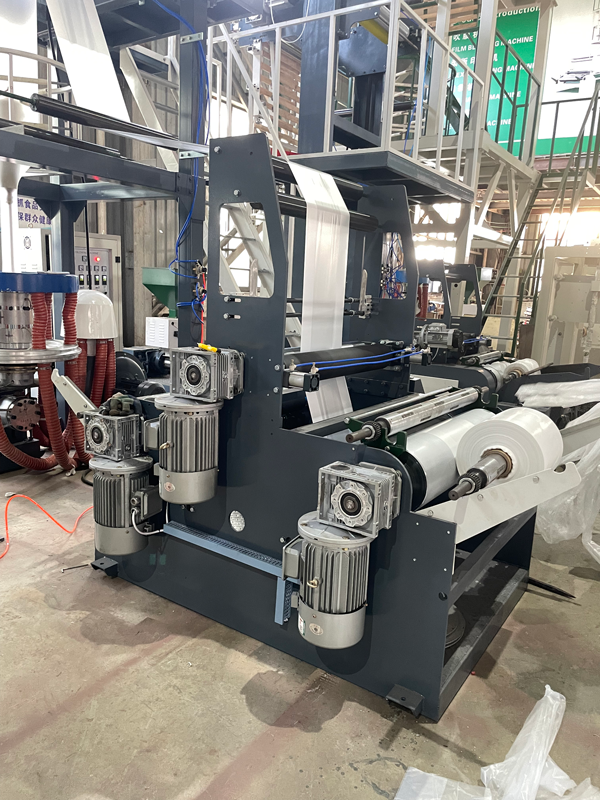

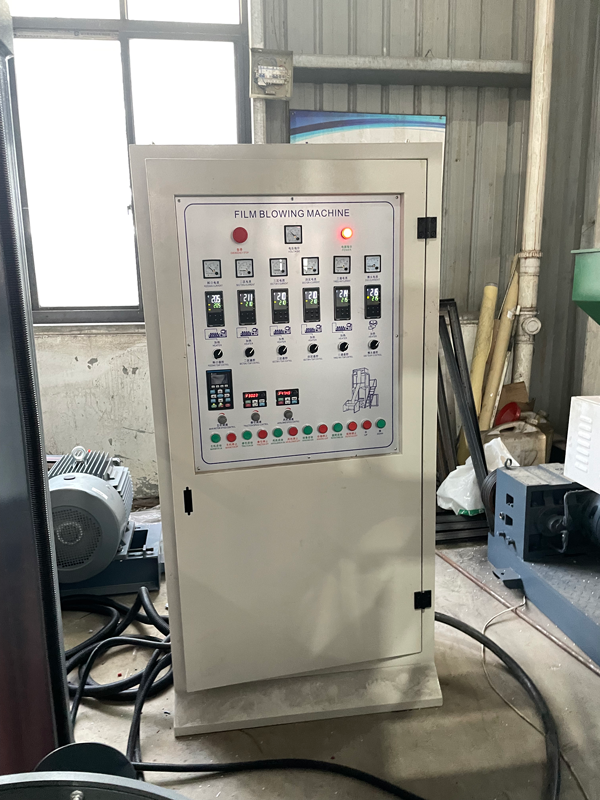

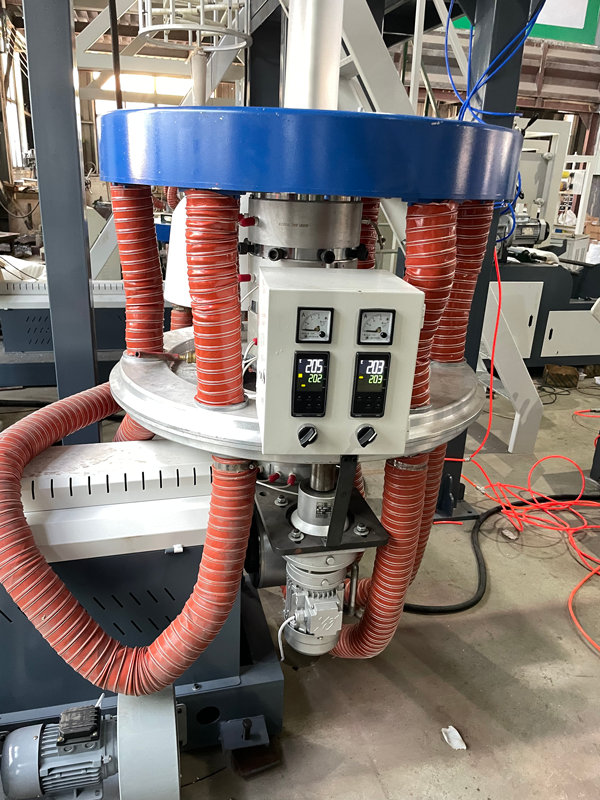

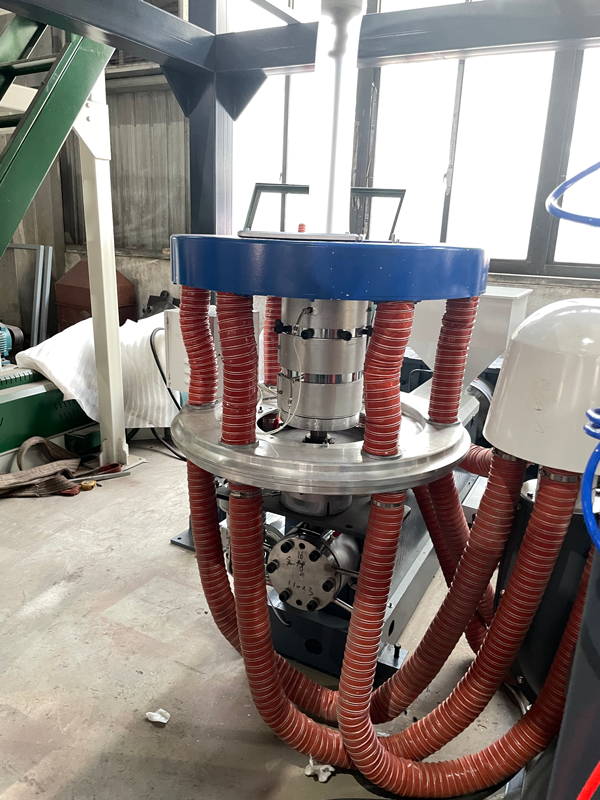

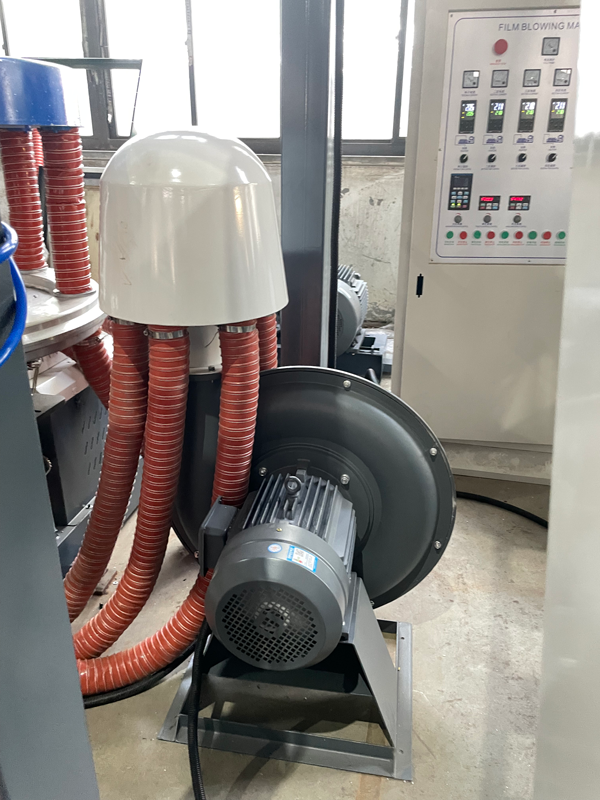

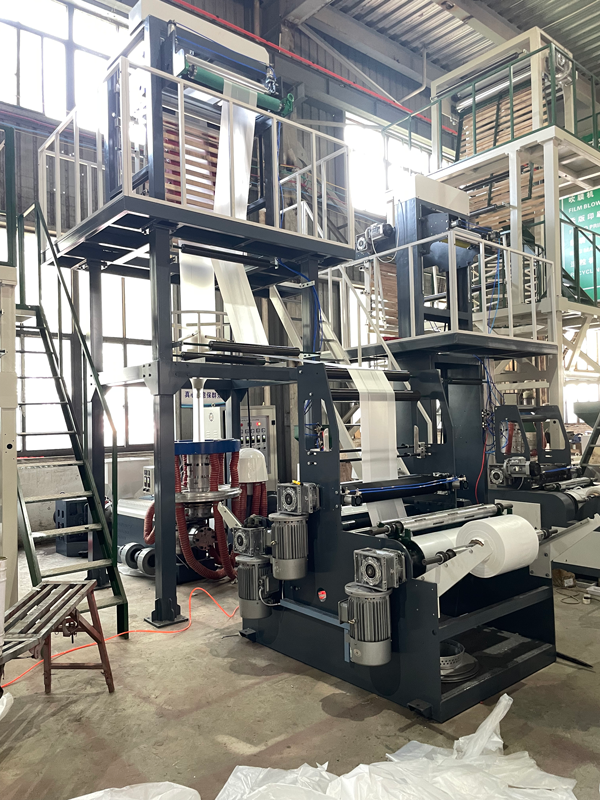

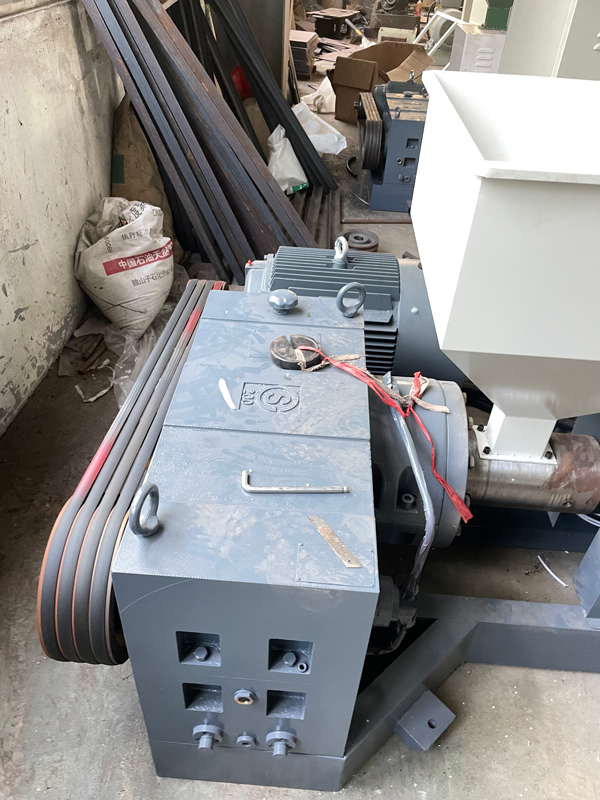

Machines details

Production product display
